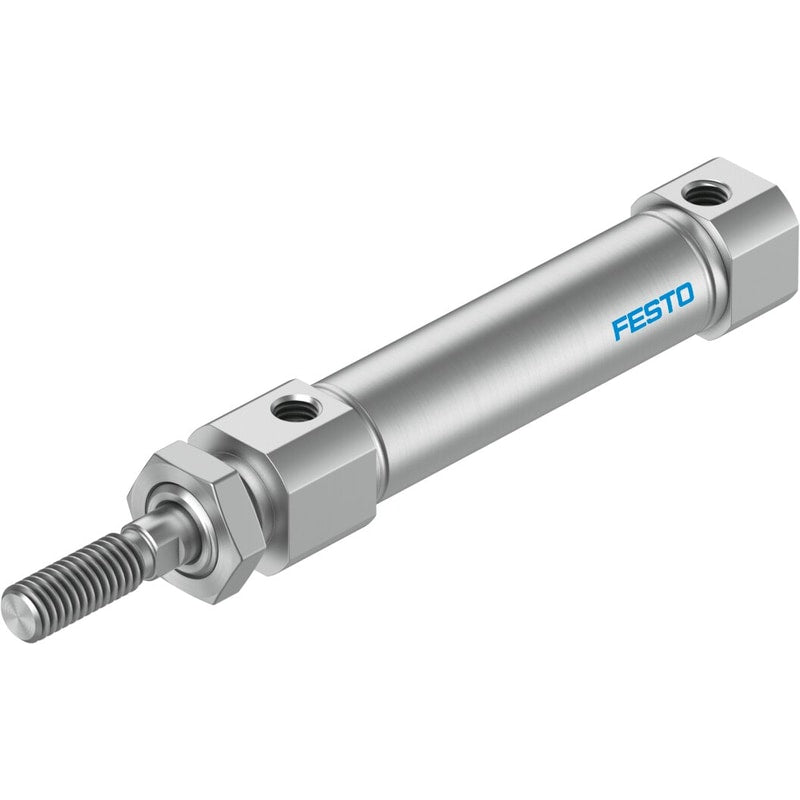

Round cylinder
DSNU-S-12-100-P-A
5211906
GTIN 4052568420437
Vendor Festo
- Mode of operation
- Double-acting
- Piston diameter
- 12 mm
- Theoretical force at 6 bar, advancing
- 67.9 N
- Stroke
- 100 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
Regular price
$51.13
Unit price
DSNU-S-12-100-P-A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DSNU-S-12-100-P-A
Regular price
$51.13
Unit price
DSNU-S-12-100-P-A is backordered and will ship as soon as it is back in stock.
| Stroke | 100 mm |
|---|---|
| Piston diameter | 12 mm |
| Piston rod thread | M6 |
| Type code | DSNU-S |
| Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any |
| Design | PistonPiston rodCylinder barrel |
| Position sensing | For proximity sensor |
| Symbol | 00991217 |
| Operating pressure | 1 bar ... 10 bar |
| Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Ambient temperature | -20 °C ... 80 °C |
| Theoretical force at 6 bar, retracting | 50.9 N |
| Theoretical force at 6 bar, advancing | 67.9 N |
| Moving mass at 0 mm stroke | 18.5 g |
| Additional weight per 10 mm stroke | 4 g |
| Basic weight with 0 mm stroke | 75 g |
| Additional moving mass per 10 mm stroke | 2 g |
| Type of mounting | With accessories |
| Pneumatic connection | M5 |
| Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy |
| Seals material | TPE-U(PU) |
| Piston rod material | High-alloy stainless steel |
| Material of cylinder barrel | High-alloy stainless steel |
