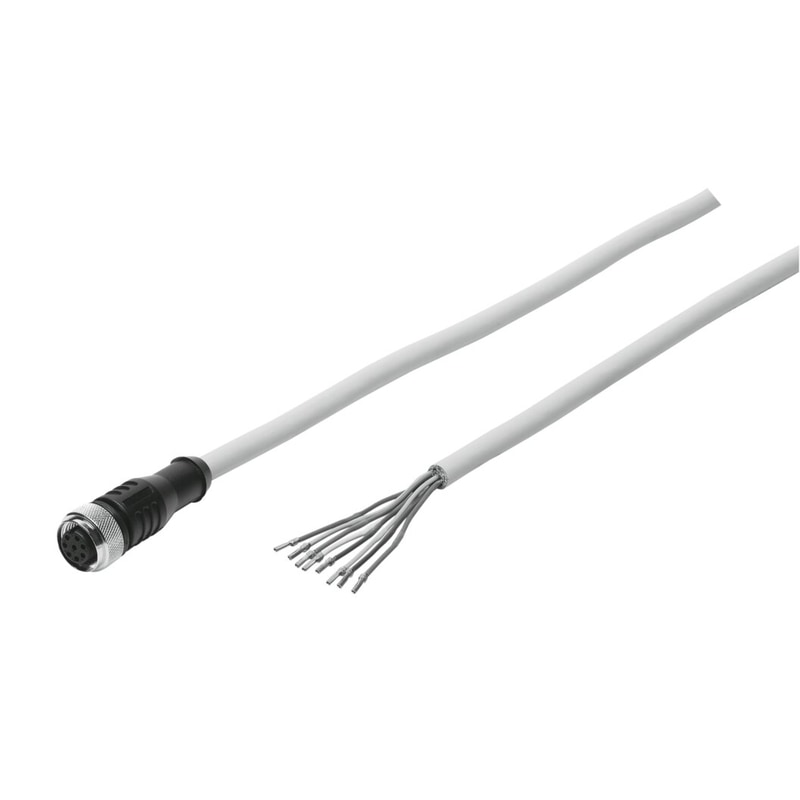

Plug socket with cable
SIM-M12-8GD-20-PU
5105632
GTIN 4052568276546
Vendor Festo
Regular price
$260.87
Unit price
SIM-M12-8GD-20-PU is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SIM-M12-8GD-20-PU
Regular price
$260.87
Unit price
SIM-M12-8GD-20-PU is backordered and will ship as soon as it is back in stock.
| Type code | SIM |
|---|---|
| Conforms to standard | DIN 47100EN 61076-2-101 |
| Cable designation | Without label holder |
| Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Round |
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical connection 1, number of pins/wires | 8 |
| Electrical connection 1, occupied pins/wires | 8 |
| Electrical connection 1, type of mounting | Screw-type lock |
| Electrical connection for input 1, connection pattern | 992265 |
| Electrical connection 2, function | Control side |
| Electrical connection 2, connection type | Cable |
| Electrical connection 2, connection technology | Open end |
| Electrical connection 2, number of pins/wires | 8 |
| Electrical connection 2, occupied pins/wires | 8 |
| DC operating voltage range | 0 V ... 30 V |
| Operating voltage range AC | 0 V ... 30 V |
| Current rating at 40°C | 0.0833333333333333 |
| Surge resistance | 0.8 kV |
| Cable length | 20 m |
| Cable characteristic | Standard |
| Bending radius, flexible cable installation | ≥ 66 mm |
| Cable diameter | 6.3 mm |
| Cable design | 8 x 0.25 mm²Shielded |
| Nominal conductor cross section | 0.25 mm² |
| Wire ends | Tin-plated |
| Degree of protection | IP67 |
| Note on degree of protection | In mounted state |
| Ambient temperature | -25 °C ... 85 °C |
| Ambient temperature with flexible cable installation | -5 °C ... 80 °C |
| Note on materials | RoHS-compliant |
| Contamination level | 3 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Material of cable sheath | TPE-U(PUR) |
| Color cable sheath | Gray |
| Housing material | TPE-U(PUR) |
| Material of screw-type lock | Brass, nickel-plated |
| Material of pin contacts | Bronze, gold-plated |
| Insulating sheath material | PP |
