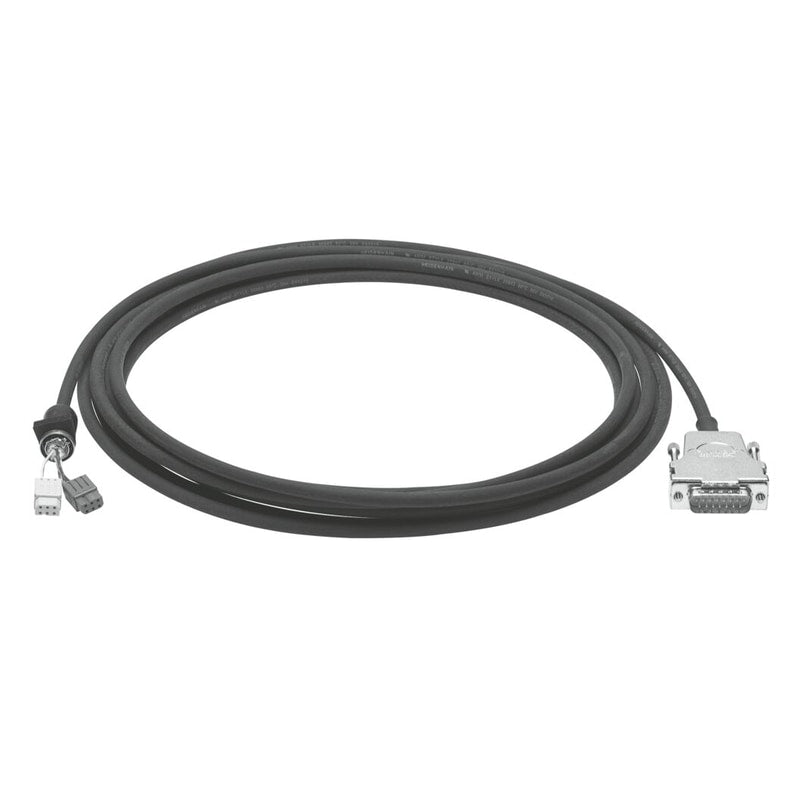

Encoder cable
NEBM-T1G8-E-20-N-S1G15
5105627
GTIN 4052568276492
Vendor Festo
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, connection technology
- ITT M3
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, connection technology
- Sub-D
- Cable length
- 20 m
Regular price
$467.83
Unit price
NEBM-T1G8-E-20-N-S1G15 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NEBM-T1G8-E-20-N-S1G15
Regular price
$467.83
Unit price
NEBM-T1G8-E-20-N-S1G15 is backordered and will ship as soon as it is back in stock.
| Type code | NEBM |
|---|---|
| Conforms to standard | EN 61984 |
| Cable designation | Without label holder |
| Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Rectangular |
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | ITT M3 |
| Electrical connection 1, number of pins/wires | 12 |
| Electrical connection 1, occupied pins/wires | 8 |
| Electrical connection for input 1, connection pattern | 995666 |
| Electrical connection 2, function | Control side |
| Electrical connection 2, design | Rectangular |
| Electrical connection 2, connection type | Plug |
| Electrical connection 2, cable outlet | Straight |
| Electrical connection 2, connection technology | Sub-D |
| Electrical connection 2, number of pins/wires | 15 |
| Electrical connection 2, occupied pins/wires | 8 |
| Electrical connection 2, connection pattern | 995641 |
| DC operating voltage range | 0 V ... 30 V |
| Nominal operating voltage DC | 24 V |
| Operating voltage range AC | 0 V ... 30 V |
| Nominal operating voltage AC | 24 V |
| Note on acceptable current load at 40°C | 2 A for conductor cross-section of 0.14 mm² |
| Surge resistance | 0.5 kV |
| Cable length | 20 m |
| Cable characteristic | Suitable for energy chains |
| Bending radius, fixed cable installation | ≥ 20 mm |
| Bending radius, flexible cable installation | ≥ 75 mm |
| Cable diameter | 6 mm |
| Cable design | 1 x 4 x 0.14 mm² + 4 x 0.34 mm²Shielded |
| Nominal conductor cross section | 0.14 mm²0.34 mm² |
| Degree of protection | IP65 |
| Note on degree of protection | IP30 for Sub-D plugIn mounted state |
| Ambient temperature | -40 °C ... 80 °C |
| Ambient temperature with flexible cable installation | -10 °C ... 80 °C |
| Note on materials | RoHS-compliant |
| Contamination level | 3 |
| Material of cable sheath | TPE-U(PUR) |
