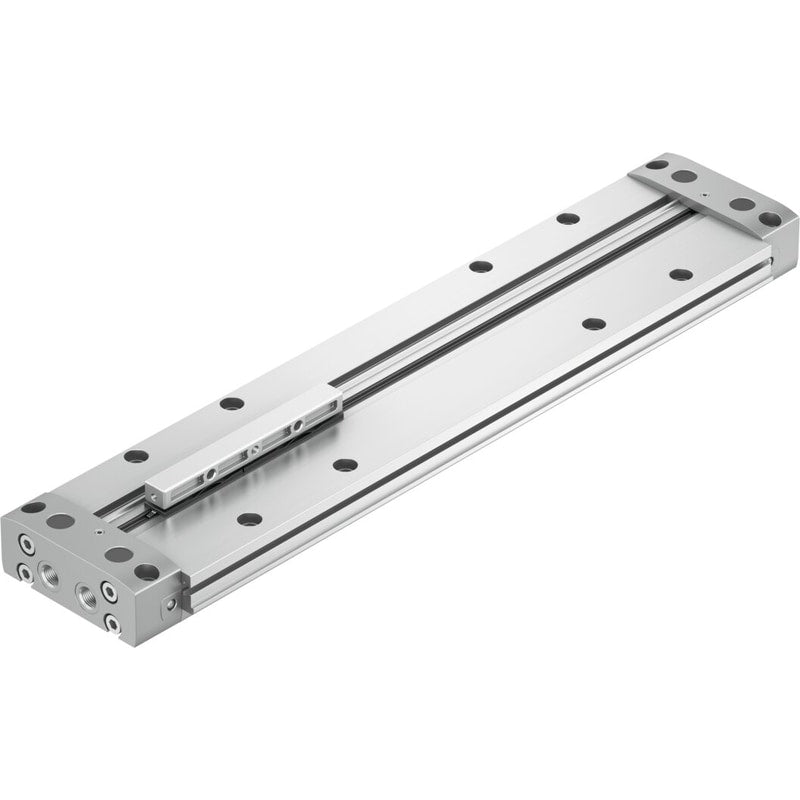

Linear actuator
DLGF-G-32-300-PPSA
5074784
GTIN 4052568419523
Vendor Festo
- Piston diameter
- 32 mm
- Theoretical force at 6 bar, advancing
- 483 N
- Stroke
- 300 mm
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Position sensing
- For proximity sensor
Regular price
$627.06
Unit price
DLGF-G-32-300-PPSA is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DLGF-G-32-300-PPSA
Regular price
$627.06
Unit price
DLGF-G-32-300-PPSA is backordered and will ship as soon as it is back in stock.
| Max. force +Fz (away from actuator) | 138 N |
|---|---|
| Max. force Fz (towards actuator) | 276 N |
| Max. torque Mx | 1.8 Nm |
| Max. force Fy | 0 N |
| Max. torque Mz | 2.9 Nm |
| Max. torque My | 7.6 Nm |
| Stroke | 300 mm |
| Piston diameter | 32 mm |
| Type code | DLGF |
| Cushioning | Self-adjusting pneumatic end-position cushioning |
| Mounting position | Any |
| Guide | Basic guide |
| Driver principle | Positive locking (slot) |
| Position sensing | For proximity sensor |
| Symbol | 995280 |
| Operating pressure | 1.5 bar ... 8 bar |
| Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Ambient temperature | 0 °C ... 60 °C |
| Cushioning length | 11.6 mm |
| Theoretical force at 6 bar, retracting | 483 N |
| Moving mass | 208 g |
| Product weight | 3349 g |
| Alternative connections | See product drawing |
| Type of mounting | With accessoriesDirect mounting via through-hole |
| Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliantCopper-free |
| Cover material | Die-cast aluminum, coated |
| Seals material | NBRTPE-U(PU) |
| Housing material | Aluminum, anodized |
