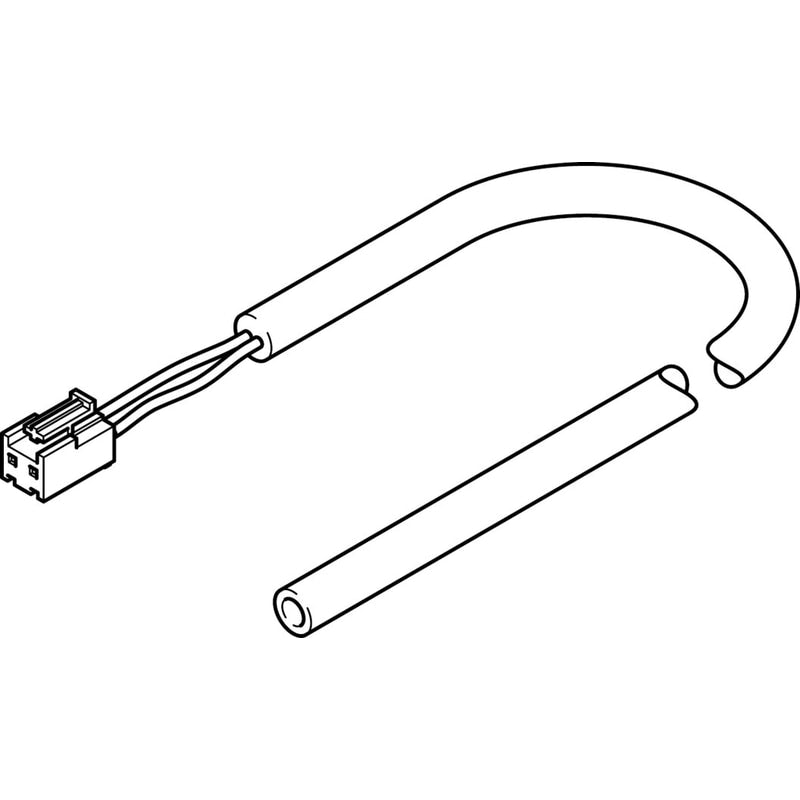

Motor cable
NEBM-L4G2-E-10-N-LE2
4977492
GTIN 4052568276249
Vendor Festo
Regular price
$139.92
Unit price
NEBM-L4G2-E-10-N-LE2 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NEBM-L4G2-E-10-N-LE2
Regular price
$139.92
Unit price
NEBM-L4G2-E-10-N-LE2 is backordered and will ship as soon as it is back in stock.
| Type code | NEBM |
|---|---|
| Cable designation | Without label holder |
| Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Rectangular |
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | Connection diagram L4 |
| Electrical connection 1, number of pins/wires | 2 |
| Electrical connection 1, occupied pins/wires | 2 |
| Electrical connection for input 1, connection pattern | 995784 |
| Electrical connection 2, function | Control side |
| Electrical connection 2, connection type | Cable |
| Electrical connection 2, connection technology | Open end |
| Electrical connection 2, number of pins/wires | 2 |
| Electrical connection 2, occupied pins/wires | 2 |
| DC operating voltage range | 0 V ... 30 V |
| Operating voltage range AC | 0 V ... 30 V |
| Current rating at 40°C | 0.416666666666667 |
| Surge resistance | 1.5 kV |
| Cable length | 10 m |
| Cable characteristic | Suitable for energy chains |
| Connector cable test conditions | Test conditions on request |
| Bending radius, fixed cable installation | ≥ 21 mm |
| Cable diameter | 6.7 mm |
| Cable design | 2 x 1.5 mm² |
| Nominal conductor cross section | 1.5 mm² |
| Wire ends | Cut off bluntly |
| Degree of protection | IP20 |
| Note on degree of protection | IP65 for mounting in terminal box |
| Ambient temperature | -25 °C ... 80 °C |
| Ambient temperature with flexible cable installation | -25 °C ... 80 °C |
| Note on materials | RoHS-compliant |
| Contamination level | 3 |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Material of cable sheath | TPE-U(PUR) |
| Color cable sheath | Gray |
| Housing material | PA |
| Housing colour | Black |
| Insulating sheath material | TPE-E |
