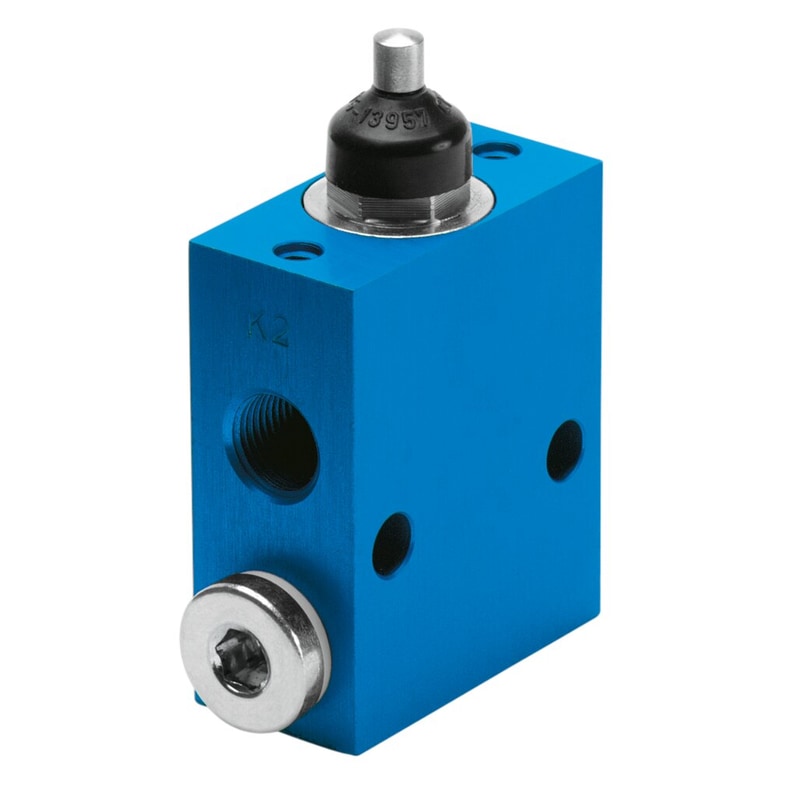

Stem actuated valve
V/O-3-1/8
4938
GTIN 4052568000769
Vendor Festo
Regular price
$157.85
Unit price
V/O-3-1/8 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
V/O-3-1/8
Regular price
$157.85
Unit price
V/O-3-1/8 is backordered and will ship as soon as it is back in stock.

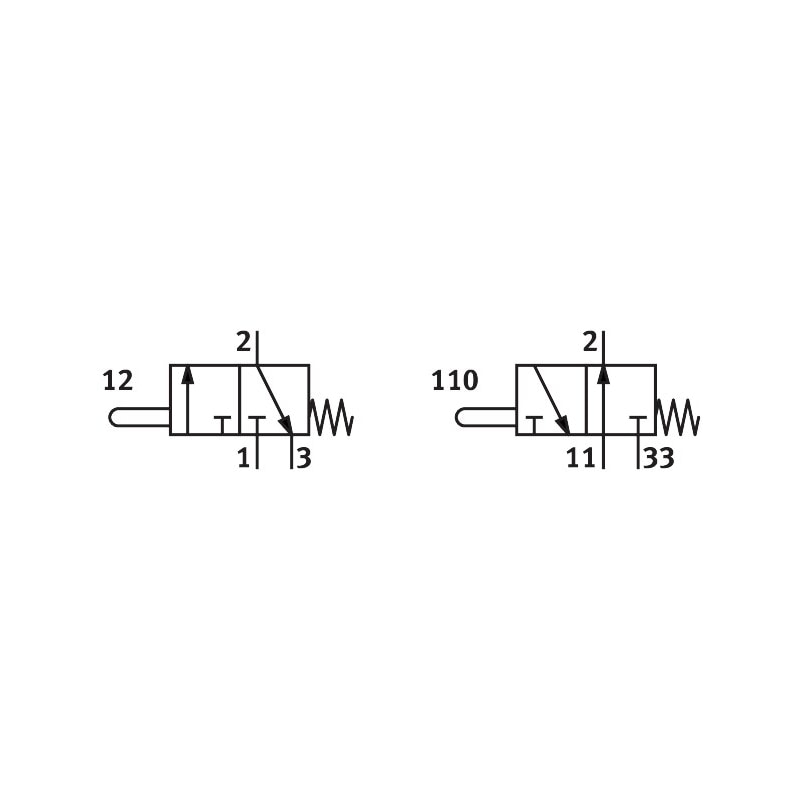

stem actuated valve V/O-3-1/8 Depending on the choice of connection, normally-open or normally-closed function. Valve function=3/2 open/closed, monostable, Type of actuation=mechanical, Standard nominal flow rate=140 l/min, Operating pressure=-0,95 - 8 bar, Design structure=Piston seat
| Valve function | 3/2 open/closed, monostable |
|---|---|
| Type of actuation | mechanical |
| Standard nominal flow rate | 140 l/min |
| Operating pressure | '-0.95 ... 8 bar |
| Design structure | Piston seat |
| Nominal size | 3.5 mm |
| Type of piloting | direct |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [-:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Ambient temperature | '-10 ... 60 °C |
| Actuating force | 28 N |
| Actuating force for normally closed | 37.53 N |
| Product weight | 90 g |
