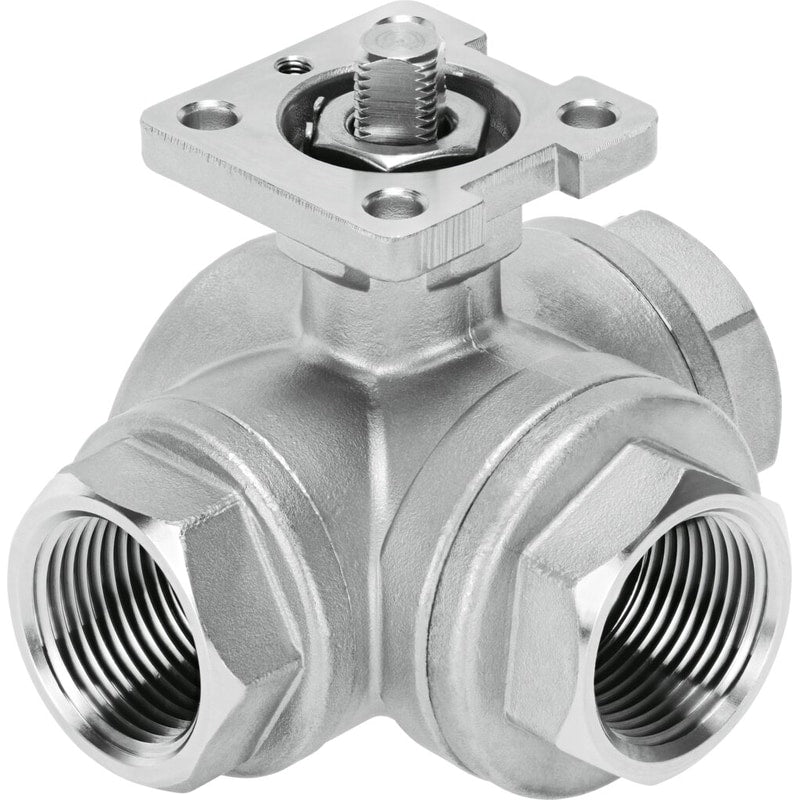

Ball valve
VZBE-1/2-T-63-F-3T-F04-V15V15
4834298
GTIN 4052568275792
Vendor Festo
- Structural design
- 3-way ball valve - Drilled T hole
- Fitting connection
- 1/2 NPT
- Actuation type
- Mechanical
Regular price
$191.63
Unit price
VZBE-1/2-T-63-F-3T-F04-V15V15 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VZBE-1/2-T-63-F-3T-F04-V15V15
Regular price
$191.63
Unit price
VZBE-1/2-T-63-F-3T-F04-V15V15 is backordered and will ship as soon as it is back in stock.
The two-part stainless steel ball valve for liquid and gaseous media is easy to maintain. Its fire safe design complies with the requirements of API 607.
| Type code | VZBF |
|---|---|
| Design | 2-way ball valve |
| Actuation type | Mechanical |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of mounting | Line installation |
| Fitting connection | Flange as per ANSI B16.5 class 150 |
| Switching position indication | Slot direction = flow direction |
| Flange hole pattern | F0507 |
| Inside diameter | 38 mm |
| Nominal width DN | 40 |
| Valve function | 2/2 |
| Flow direction | Reversible |
| Nominal pressure of fitting PN | 20 |
| Breakaway torque at differential pressure, nominal pressure, fitting PN | 30 Nm |
| Based on norm | ANSI B16.5 class150ISO 5211 |
| Symbol | 00991458 |
| Medium | VaporCompressed air as per ISO 8573-1:2010 [-:-:-]Inert gasWaterNeutral liquids |
| Temperature of medium | -20 °C ... 200 °C |
| Flow rate Kv | 61.6 m³/h |
| Note on materials | RoHS-compliantContains paint-wetting impairment substances |
| Housing material | Cast stainless steel |
| Material number of housing | 1.4408 |
| Seals material | FPMPTFEPCTFEGraphite |
| Ball material | Cast stainless steel |
| Material number for ball | 1.4408 |
| Shaft material | High-alloy stainless steel |
| Material number for shaft | 1.4401 |
| Product weight | 5630 g |
| Certification | CRN |
| CE marking (see declaration of conformity) | as per EU pressure equipment directive |
| Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress |
