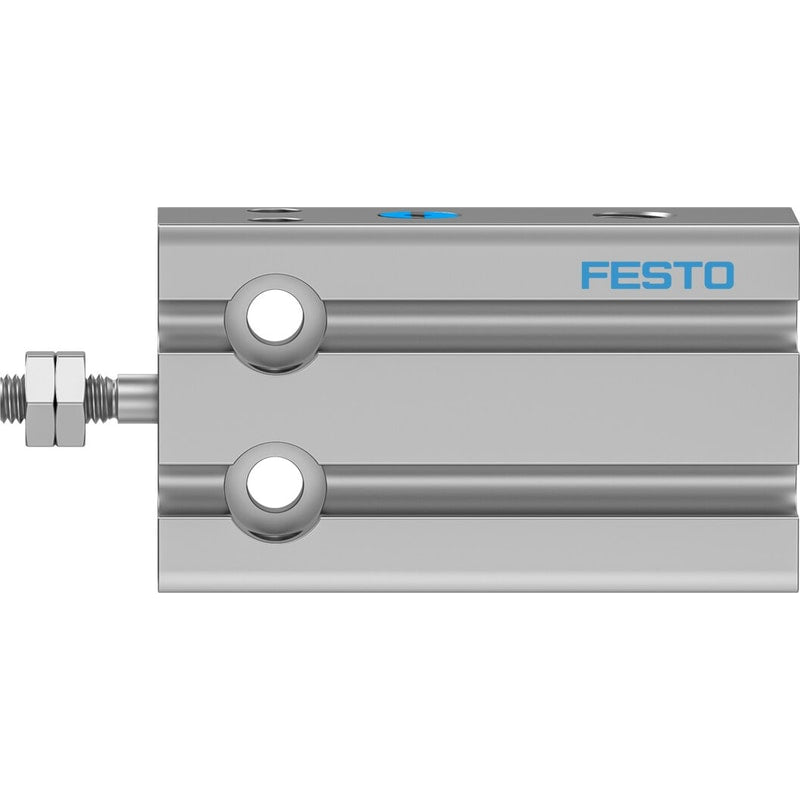

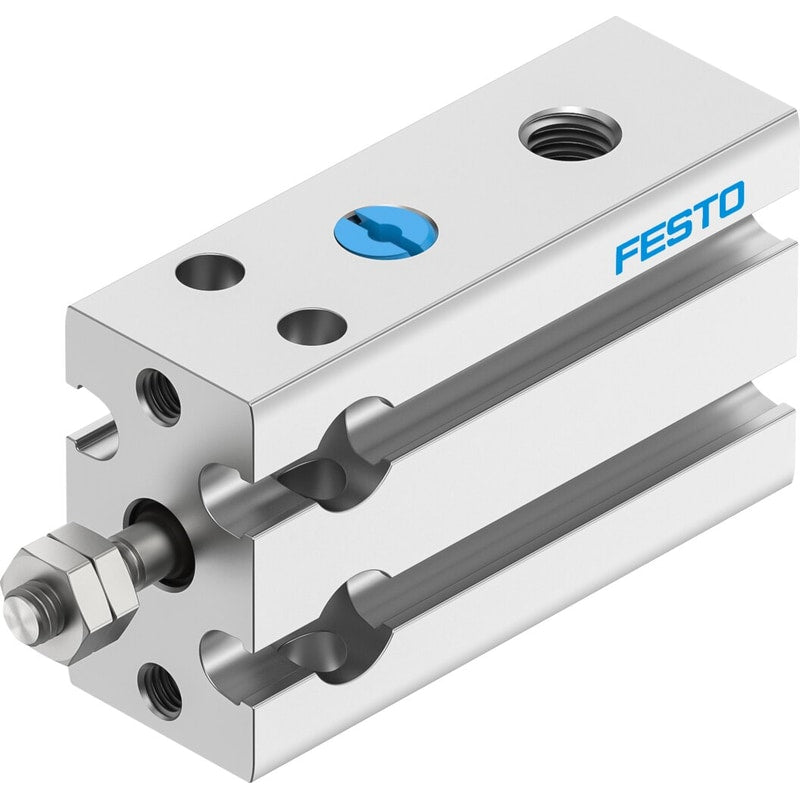

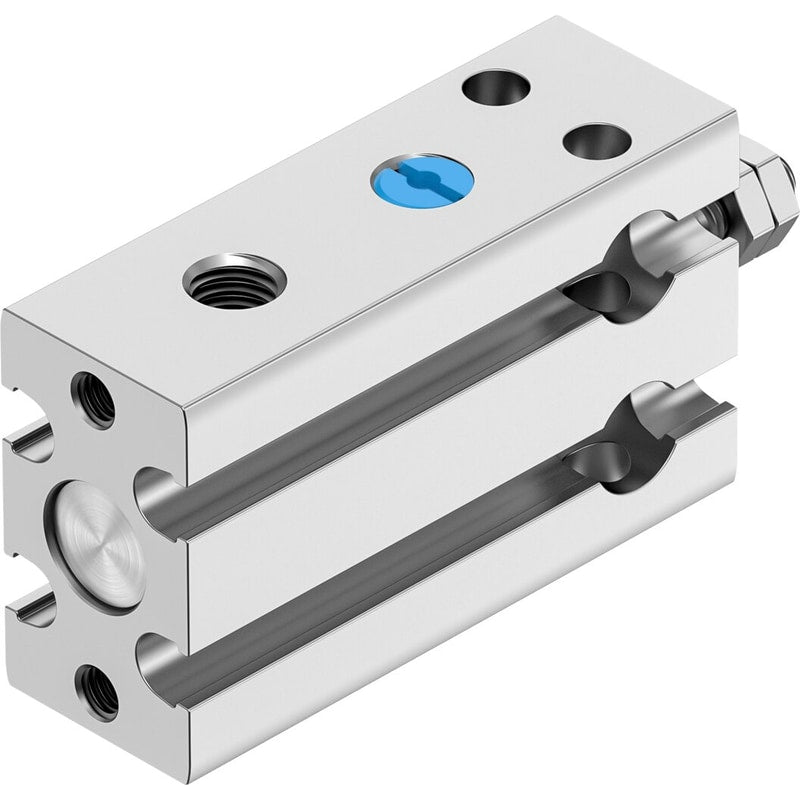

Compact cylinder
DPDM-6-5-S-PA
4830909
GTIN 4052568292584
Vendor Festo
- Mode of operation
- Pushing - Single-acting
- Piston diameter
- 6 mm
- Theoretical force at 6 bar, advancing
- 13 N
- Stroke
- 5 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
Regular price
$82.65
Unit price
DPDM-6-5-S-PA is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DPDM-6-5-S-PA
Regular price
$82.65
Unit price
DPDM-6-5-S-PA is backordered and will ship as soon as it is back in stock.
compact cylinder DPDM-6-5-S-PA Part number: 4830909
| Stroke | 5 mm |
|---|---|
| Piston diameter | 6 mm |
| Cushioning | P: Flexible cushioning rings/plates at both ends |
| Assembly position | Any |
| Mode of operation | single-actingpushing action |
| Design structure | PistonPiston rodProfile barrel |
| Position detection | For proximity sensor |
| Variants | Single-ended piston rod |
| Operating pressure | 2.5 ... 8 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 80 °C |
