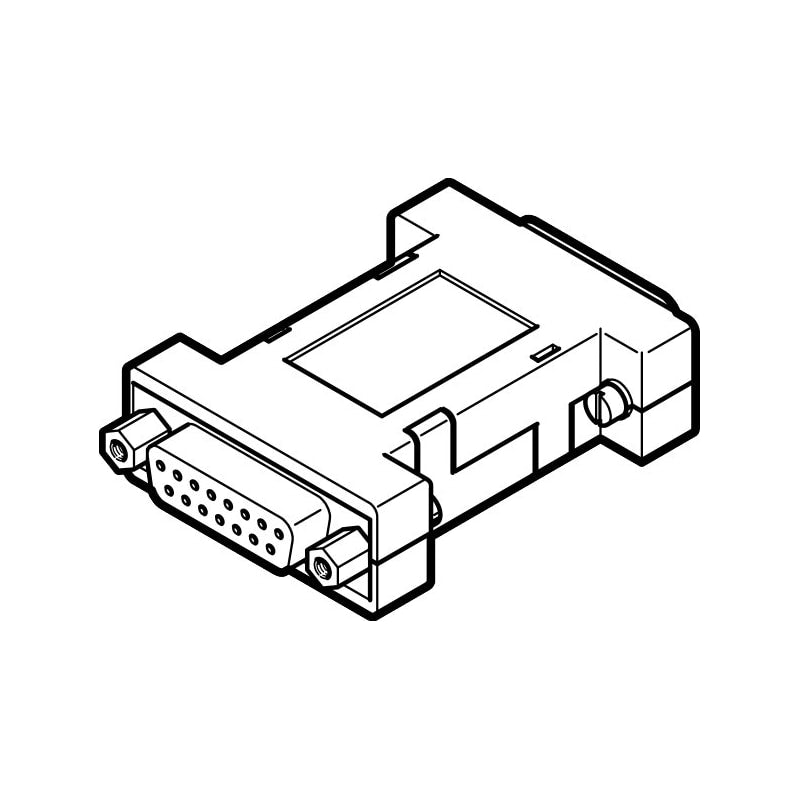

Compressed EMC air filter
CAMF-C5-FC
4825847
GTIN 4052568275686
Vendor Festo
Regular price
$54.65
Unit price
CAMF-C5-FC is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CAMF-C5-FC
Regular price
$54.65
Unit price
CAMF-C5-FC is backordered and will ship as soon as it is back in stock.
| Electrical connection 2, design | Rectangular |
|---|---|
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, design | Rectangular |
| Housing colour | Silver |
| Electrical connection 2, connection type | Plug |
| Electrical connection 1, connection technology | Sub-D |
| Electrical connection 2, type of mounting | 2x screw, 4-40 UNC-2A |
| Electrical connection 2, connection pattern | 995641 |
| Note on degree of protection | In mounted state |
| Electrical connection 2, cable outlet | Straight |
| Electrical connection 1, cable outlet | Straight |
| Electrical connection for input 1, connection pattern | 995640 |
| Electrical connection 2, function | Control side |
| Electrical connection 1, function | Field device end |
| Housing material | Metallized polymer |
| Electrical connection 2, connection technology | Sub-D |
| Electrical connection 1, occupied pins/wires | 8 |
| Electrical connection 2, occupied pins/wires | 8 |
| Electrical connection 1, number of pins/wires | 15 |
| Nominal operating voltage AC | 24 V |
| Electrical connection 2, number of pins/wires | 15 |
| DC operating voltage range | 0 V ... 30 V |
| Nominal operating voltage DC | 24 V |
| Degree of protection | IP30 |
| Ambient temperature | -40 °C ... 80 °C |
| Note on materials | RoHS-compliant |
| Type code | CAMF |
| Protocol | HIPERFACE |
