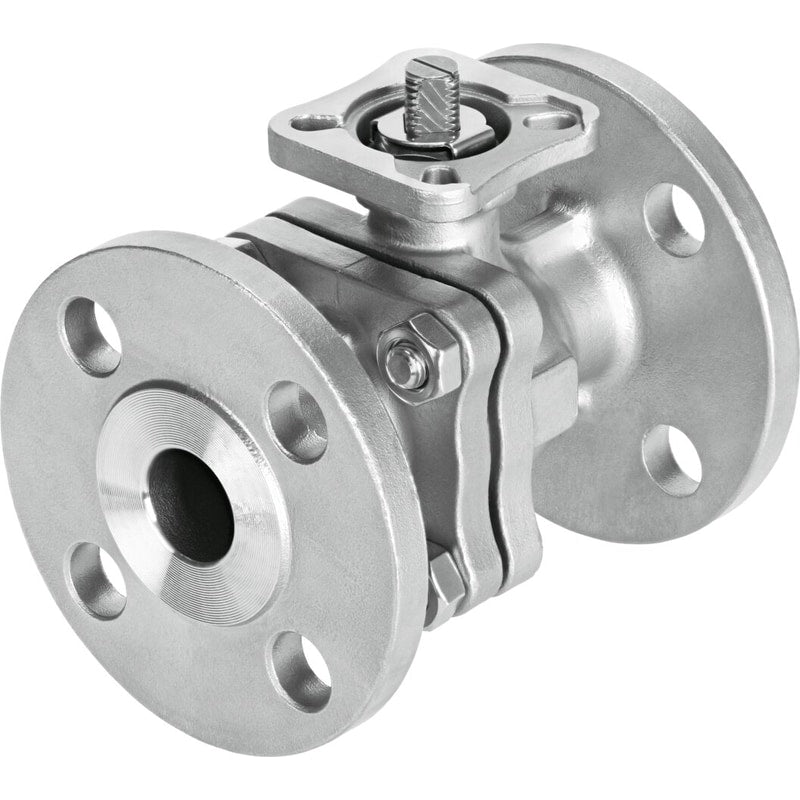

Ball valve
VZBF-6-P1-20-D-2-F1012-V15V16
4810861
GTIN 4052568275662
Vendor Festo
- Structural design
- 2-way ball valve
- Flow rate Kv
- 4258 m³/h
- Fitting connection
- Flange as per ANSI B16.5 class 150
- Actuation type
- Mechanical
Regular price
$4,523.74
Unit price
VZBF-6-P1-20-D-2-F1012-V15V16 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VZBF-6-P1-20-D-2-F1012-V15V16
Regular price
$4,523.74
Unit price
VZBF-6-P1-20-D-2-F1012-V15V16 is backordered and will ship as soon as it is back in stock.
2-way, 2-way manual or 3-way: the stainless steel ball valve VZBE controls various media, in both process automation and industrial automation.
| Type code | VZBE |
|---|---|
| Seat seal material | PTFE |
| Design | 2-way ball valve |
| Actuation type | Mechanical |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of mounting | Line installation |
| Fitting connection | 3/4 NPT |
| Switching position indication | Slot direction = flow direction |
| Flange hole pattern | F0304 |
| Inside diameter | 20 mm |
| Nominal width DN | 20 |
| Valve function | 2/2 |
| Flow direction | Reversible |
| Nominal pressure of fitting PN | 63 |
| Breakaway torque at differential pressure, nominal pressure, fitting PN | 9 Nm |
| Based on norm | ASME B1.20.1ISO 5211 |
| Symbol | 00991458 |
| Medium | Inert gasVaporCompressed air as per ISO 8573-1:2010 [-:-:-]WaterNeutral liquids |
| Temperature of medium | -20 °C ... 200 °C |
| Flow rate Kv | 15.6 m³/h |
| Note on materials | RoHS-compliantContains paint-wetting impairment substances |
| Housing material | Cast stainless steel |
| Material number of housing | 1.4408 |
| Seals material | FPMPTFE |
| Ball material | Cast stainless steel |
| Material number for ball | 1.4408 |
| Shaft material | High-alloy stainless steel |
| Material number for shaft | 1.4401 |
| Product weight | 660 g |
| Certification | CRN |
| Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress |
