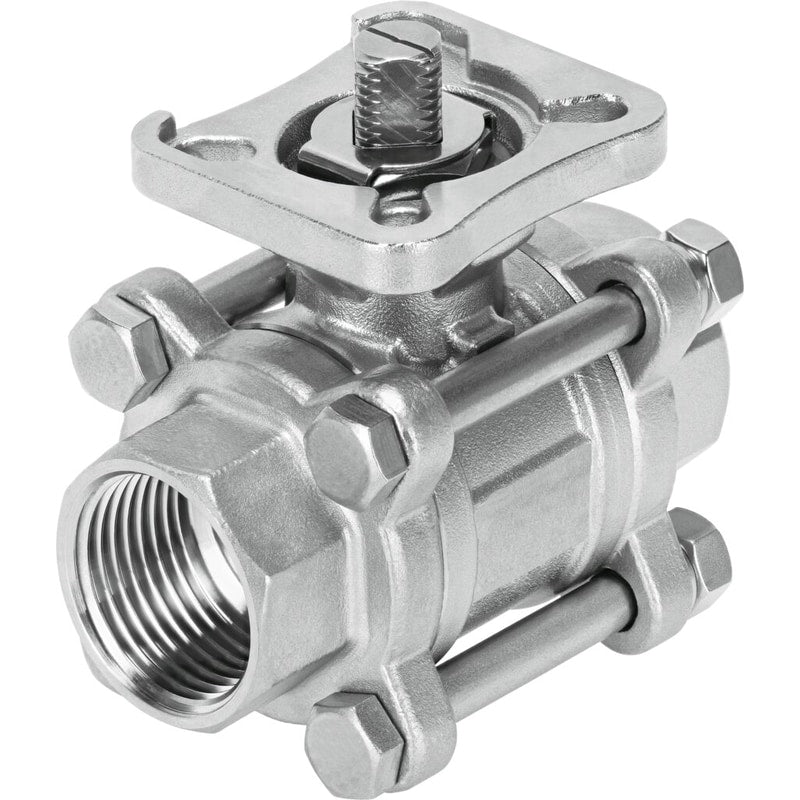

Ball valve
VZBE-3-T-63-T-2-F0710-V15V16
4809124
GTIN 4052568275556
Vendor Festo
- Structural design
- 2-way ball valve
- Flow rate Kv
- 995 m³/h
- Fitting connection
- 3 NPT
- Actuation type
- Mechanical
Regular price
$968.99
Unit price
VZBE-3-T-63-T-2-F0710-V15V16 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VZBE-3-T-63-T-2-F0710-V15V16
Regular price
$968.99
Unit price
VZBE-3-T-63-T-2-F0710-V15V16 is backordered and will ship as soon as it is back in stock.
The 2-way stainless-steel ball valve is the ideal partner for the pharmaceutical and cosmetics industry. Its sealing is compliant with FDA standards, and it has electropolished surfaces, long welded ends, or clamping sleeves.
| Type code | VZBD |
|---|---|
| Seat seal material | PTFE, modified |
| Design | 2-way ball valve |
| Actuation type | Mechanical |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of mounting | Line installation |
| Fitting connection | Clamp as per ASME-BPE |
| Switching position indication | Slot direction = flow direction |
| Flange hole pattern | F0710 |
| Inside diameter | 60.3 mm |
| Nominal width DN | 65 |
| Valve function | 2/2 |
| Flow direction | Reversible |
| Nominal pressure of fitting PN | 16 |
| Breakaway torque at differential pressure, nominal pressure, fitting PN | 79 Nm |
| Based on norm | ISO 5211ASME BPE |
| Symbol | 00991458 |
| Medium | WaterInert gasNeutral liquidsVaporCompressed air as per ISO 8573-1:2010 [-:-:-] |
| Temperature of medium | -20 °C ... 200 °C |
| Flow rate Kv | 161.7 m³/h |
| Note on materials | RoHS-compliantContains paint-wetting impairment substances |
| Housing material | Cast stainless steel |
| Material number of housing | 1.4409 |
| Seals material | FPMPTFE |
| Ball material | Cast stainless steel |
| Material number for ball | 1.4409 |
| Shaft material | High-alloy stainless steel |
| Material number for shaft | 1.4401 |
| Product weight | 6180 g |
| Certification | CRN |
| CE marking (see declaration of conformity) | as per EU pressure equipment directive |
| Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress |
