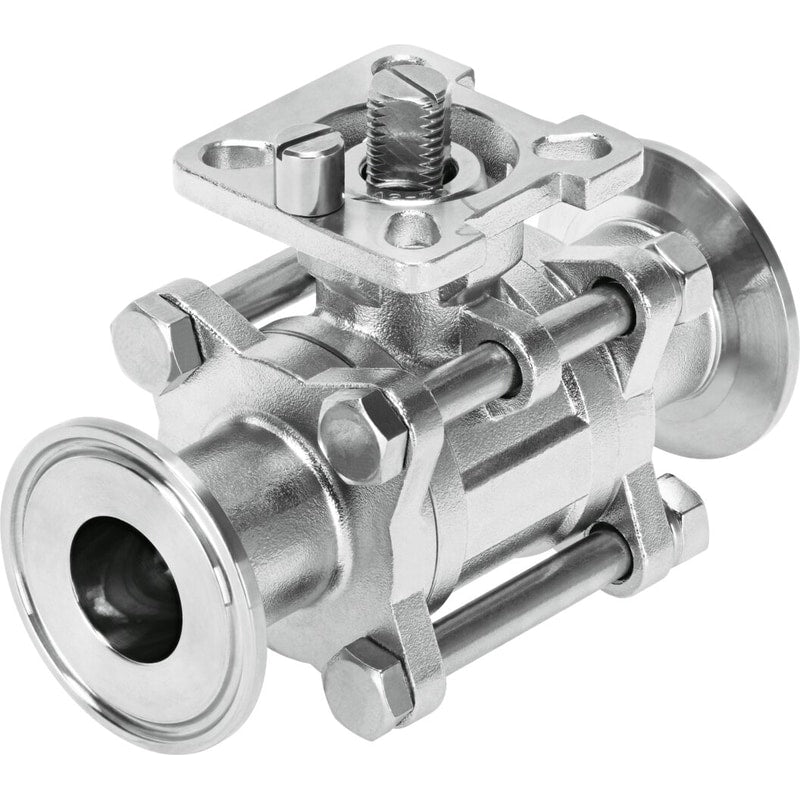

Ball valve
VZBD-1-S5-16-T-2-F0405-V14V14
4802246
GTIN 4052568275433
Vendor Festo
- Structural design
- 2-way ball valve
- Flow rate Kv
- 135 m³/h
- Fitting connection
- Clamp as per DIN 32676 series A
- Actuation type
- Mechanical
Regular price
$380.80
Unit price
VZBD-1-S5-16-T-2-F0405-V14V14 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VZBD-1-S5-16-T-2-F0405-V14V14
Regular price
$380.80
Unit price
VZBD-1-S5-16-T-2-F0405-V14V14 is backordered and will ship as soon as it is back in stock.
The 2-way stainless-steel ball valve is the ideal partner for the pharmaceutical and cosmetics industry. Its sealing is compliant with FDA standards, and it has electropolished surfaces, long welded ends, or clamping sleeves.
| Type code | VZBD |
|---|---|
| Seat seal material | PTFE, modified |
| Design | 2-way ball valve |
| Actuation type | Mechanical |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of mounting | Line installation |
| Fitting connection | Weld-on end as per ISO 1127 |
| Switching position indication | Slot direction = flow direction |
| Flange hole pattern | F0304 |
| Inside diameter | 18.1 mm |
| Nominal width DN | 15 |
| Valve function | 2/2 |
| Flow direction | Reversible |
| Nominal pressure of fitting PN | 16 |
| Breakaway torque at differential pressure, nominal pressure, fitting PN | 7 Nm |
| Based on norm | ISO 1127ISO 5211 |
| Symbol | 00991458 |
| Medium | Compressed air as per ISO 8573-1:2010 [-:-:-]Neutral liquidsWaterInert gasVapor |
| Temperature of medium | -20 °C ... 200 °C |
| Flow rate Kv | 12.2 m³/h |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Housing material | Cast stainless steel |
| Material number of housing | 1.4409 |
| Seals material | FPMPTFE |
| Ball material | Cast stainless steel |
| Material number for ball | 1.4409 |
| Shaft material | High-alloy stainless steel |
| Material number for shaft | 1.4401 |
| Product weight | 730 g |
| Certification | CRN |
| Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress |
