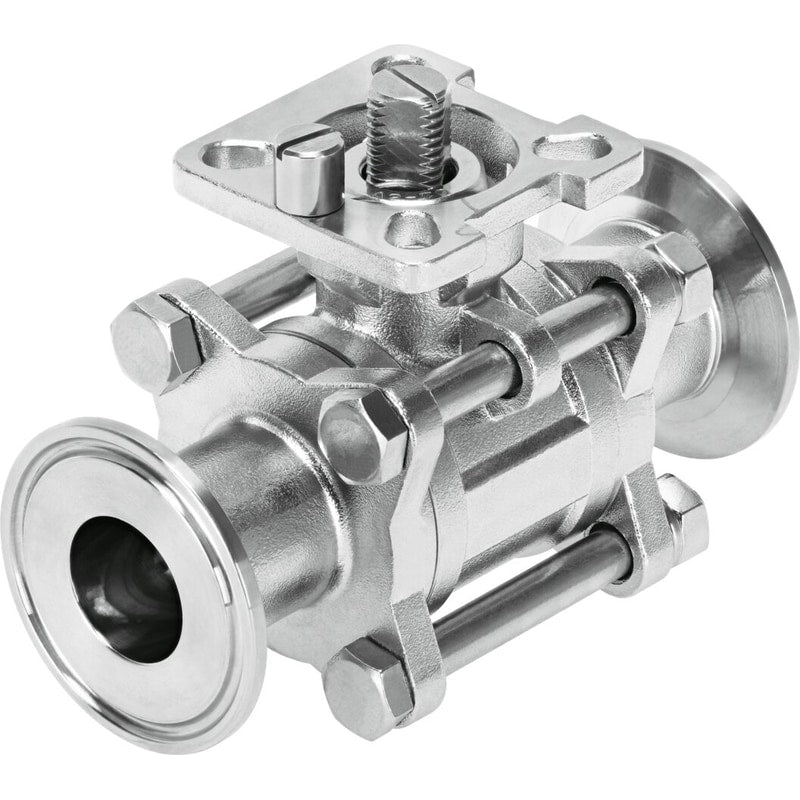

Ball valve
VZBD-3/4-S5-16-T-2-F0304-V14V14
4802245
GTIN 4052568275426
Vendor Festo
- Structural design
- 2-way ball valve
- Flow rate Kv
- 82 m³/h
- Fitting connection
- Clamp as per DIN 32676 series A
- Actuation type
- Mechanical
Regular price
$294.46
Unit price
VZBD-3/4-S5-16-T-2-F0304-V14V14 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VZBD-3/4-S5-16-T-2-F0304-V14V14
Regular price
$294.46
Unit price
VZBD-3/4-S5-16-T-2-F0304-V14V14 is backordered and will ship as soon as it is back in stock.
The 2-way stainless-steel ball valve is the ideal partner for the pharmaceutical and cosmetics industry. Its sealing is compliant with FDA standards, and it has electropolished surfaces, long welded ends, or clamping sleeves.
| Type code | VZBD |
|---|---|
| Seat seal material | PTFE, modified |
| Design | 2-way ball valve |
| Actuation type | Mechanical |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of mounting | Line installation |
| Fitting connection | Weld-on end as per ASME-BPE |
| Switching position indication | Slot direction = flow direction |
| Flange hole pattern | F1012 |
| Inside diameter | 97.5 mm |
| Nominal width DN | 100 |
| Valve function | 2/2 |
| Flow direction | Reversible |
| Nominal pressure of fitting PN | 16 |
| Breakaway torque at differential pressure, nominal pressure, fitting PN | 170 Nm |
| Based on norm | ASME BPEISO 5211 |
| Symbol | 00991458 |
| Medium | VaporWaterCompressed air as per ISO 8573-1:2010 [-:-:-]Inert gasNeutral liquids |
| Temperature of medium | -20 °C ... 200 °C |
| Flow rate Kv | 436.3 m³/h |
| Note on materials | RoHS-compliantContains paint-wetting impairment substances |
| Housing material | Cast stainless steel |
| Material number of housing | 1.4409 |
| Seals material | FPMPTFE |
| Ball material | Cast stainless steel |
| Material number for ball | 1.4409 |
| Shaft material | High-alloy stainless steel |
| Material number for shaft | 1.4401 |
| Product weight | 16180 g |
| Certification | CRN |
| CE marking (see declaration of conformity) | as per EU pressure equipment directive |
| Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress |
