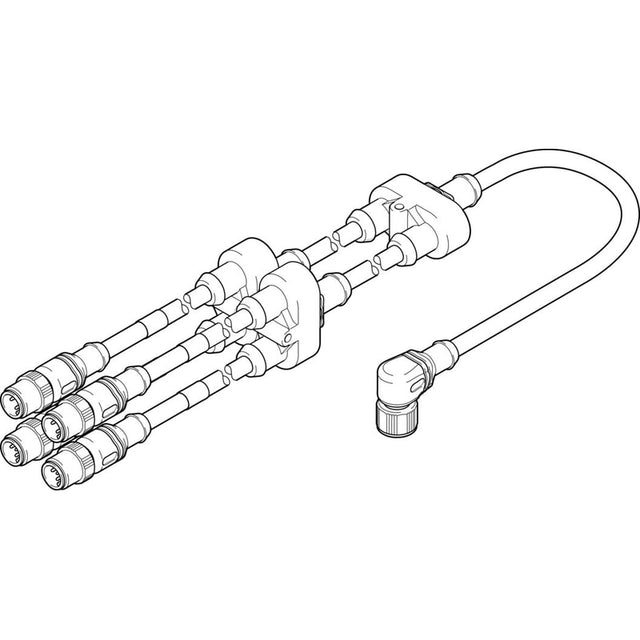

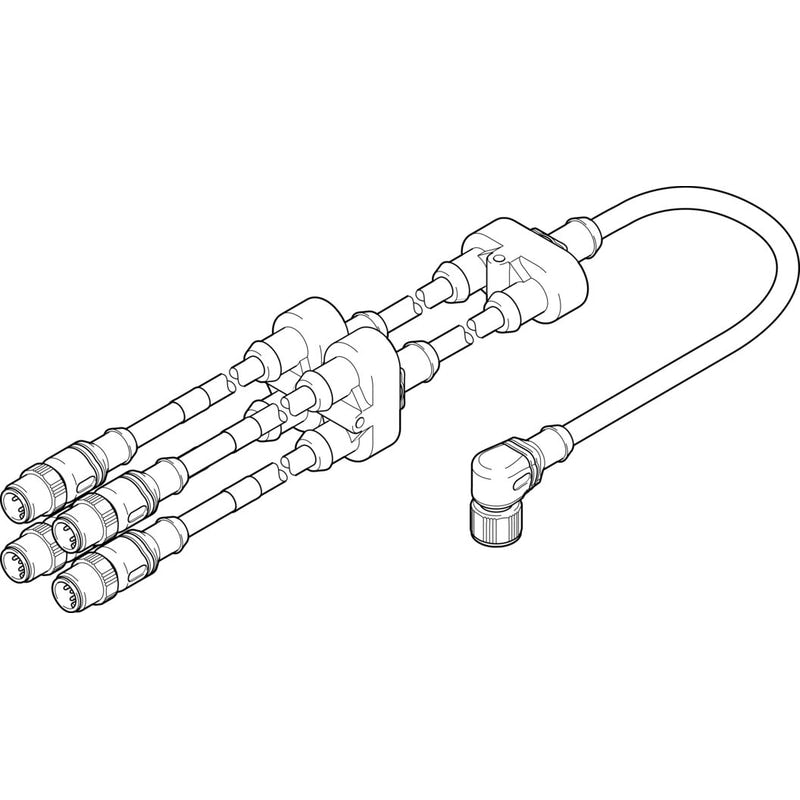

Adapter
NEFV-V12-M12W8-0.6-M12QG5
4787544
GTIN 4052568275327
Vendor Festo
- Cable length
- 0.623 m
- DC operating voltage range
- 0 V - 30 V
- Current rating at 40° C
- 2 A
- Degree of protection
- IP65 - IP67
Regular price
$526.78
Unit price
NEFV-V12-M12W8-0.6-M12QG5 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NEFV-V12-M12W8-0.6-M12QG5
Regular price
$526.78
Unit price
NEFV-V12-M12W8-0.6-M12QG5 is backordered and will ship as soon as it is back in stock.
| Type code | NEFV |
|---|---|
| Type of mounting | With through-hole |
| Product weight | 157 g |
| Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Round |
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Angled |
| Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical connection 1, number of pins/wires | 8 |
| Electrical connection 1, occupied pins/wires | 8 |
| Electrical connection 1, type of mounting | Screw-type lock |
| Electrical connection for input 1, connection pattern | 992265 |
| Electrical connection 2, function | Analog output module (green), digital input module (white), analog input module (yellow), digital output module (red)Control side |
| Electrical connection 2, design | Round |
| Electrical connection 2, connection type | 4x plugs |
| Electrical connection 2, cable outlet | Straight |
| Electrical connection 2, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical connection 2, type of mounting | Screw-type lock |
| DC operating voltage range | 0 V ... 30 V |
| Nominal operating voltage DC | 24 V |
| DC load voltage operating voltage range | 0 V ... 30 V |
| Nominal operating voltage DC load voltage | 24 V |
| Current rating at 40°C | 0.0833333333333333 |
| Cable length | 0.623 m |
| Cable characteristic | Standard |
| Connector cable test conditions | Test conditions on request |
| Degree of protection | IP67IP65 |
| Note on degree of protection | In mounted state |
| Ambient temperature | -25 °C ... 80 °C |
| Ambient temperature with flexible cable installation | -5 °C ... 80 °C |
| Note on materials | RoHS-compliant |
| Contamination level | 3 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Material of cable sheath | TPE-U(PUR) |
| Color cable sheath | Gray |
| Housing material | TPE-U(PUR) |
| Housing colour | Black |
| Material of union nut | Die-cast zinc, nickel-plated |
| Material of pin contacts | Nickel-platedBrass |
| Insulating sheath material | PP |
