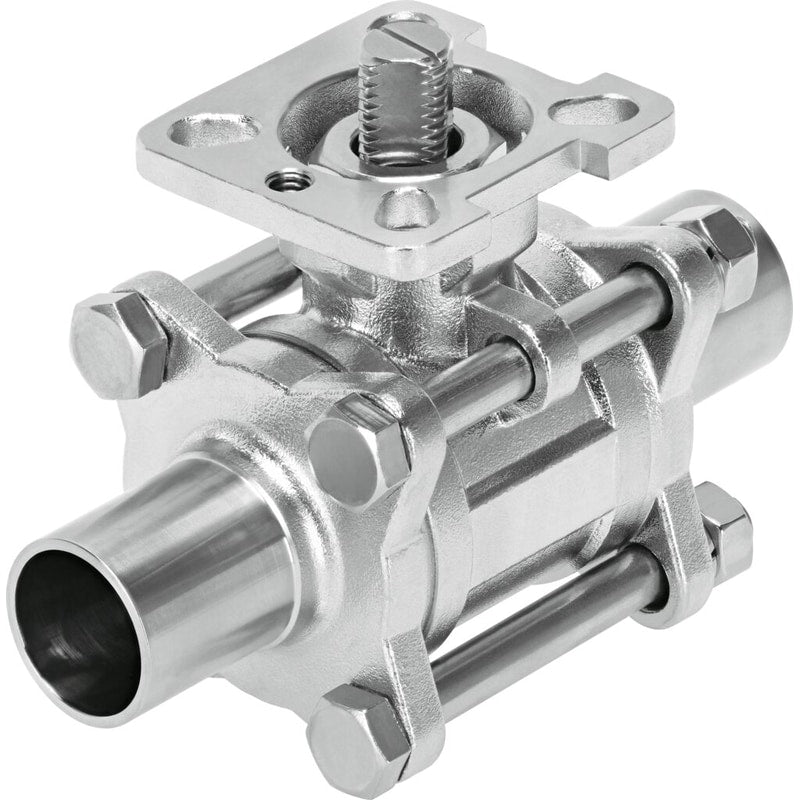

Ball valve
VZBD-11/2-W3-16-T-2-F0507-V14V14
4783599
GTIN 4052568275297
Vendor Festo
- Structural design
- 2-way ball valve
- Flow rate Kv
- 313 m³/h
- Fitting connection
- Weld-on end as per ISO 1127
- Actuation type
- Mechanical
Regular price
$790.11
Unit price
VZBD-11/2-W3-16-T-2-F0507-V14V14 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VZBD-11/2-W3-16-T-2-F0507-V14V14
Regular price
$790.11
Unit price
VZBD-11/2-W3-16-T-2-F0507-V14V14 is backordered and will ship as soon as it is back in stock.
2-way, 2-way manual or 3-way: the stainless steel ball valve VZBE controls various media, in both process automation and industrial automation.
| Type code | VZBE |
|---|---|
| Seat seal material | PTFE |
| Design | 2-Wege-Kugelhahn mit Handhebel |
| Actuation type | Mechanical |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of mounting | Line installation |
| Fitting connection | 1 1/4 NPT |
| Switching position indication | Slot direction = flow direction |
| Inside diameter | 32 mm |
| Nominal width DN | 32 |
| Valve function | 2/2 |
| Flow direction | Reversible |
| Nominal pressure of fitting PN | 63 |
| Breakaway torque at differential pressure, nominal pressure, fitting PN | 15 Nm |
| Based on norm | ASME B1.20.1 |
| Symbol | 00991458 |
| Medium | Inert gasVaporWaterNeutral liquidsCompressed air as per ISO 8573-1:2010 [-:-:-] |
| Temperature of medium | -20 °C ... 200 °C |
| Flow rate Kv | 42.6 m³/h |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Housing material | Cast stainless steel |
| Material number of housing | 1.4408 |
| Seals material | PTFE |
| Ball material | Cast stainless steel |
| Material number for ball | 1.4408 |
| Shaft material | High-alloy stainless steel |
| Material number for shaft | 1.4401 |
| Product weight | 1100 g |
| Certification | CRN |
| CE marking (see declaration of conformity) | as per EU pressure equipment directive |
| Corrosion resistance class (CRC) | 3 - High corrosion stress |
