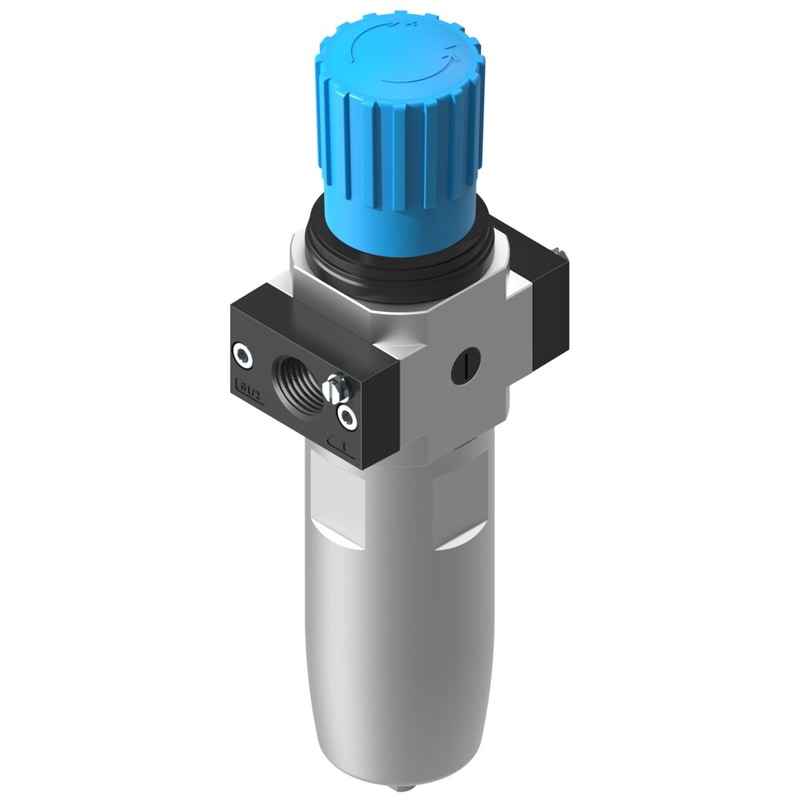

Filter regulator
LFR-1/4-D-16-5M-O-MIDI-T18-EX4
4772766
GTIN 4052568418601
Vendor Festo
- Pneumatic connection 1
- G1/4
- Normal nominal flow rate (normalized to DIN 1343)
- 1370 l/min
- Pressure regulation range
- 0.5 bar - 16 bar
- Grade of filtration
- 5 µm
Regular price
$191.84
Unit price
Filter regulator LFR-1/4-D-16-5M-O-MIDI-T18-EX4 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
LFR-1/4-D-16-5M-O-MIDI-T18-EX4
Regular price
$191.84
Unit price
Filter regulator LFR-1/4-D-16-5M-O-MIDI-T18-EX4 is backordered and will ship as soon as it is back in stock.
| Size | Midi |
|---|---|
| Type code | LFR |
| Series | D |
| Actuator lock | Rotary knob with detent |
| Mounting position | Vertical +/- 5° |
| Grade of filtration | 5 µm |
| Condensate drain | Manually rotating |
| Design | Filter regulator without pressure gauge |
| Max. condensate volume | 42 ml |
| Bowl guard | Integrated as metal bowl guard |

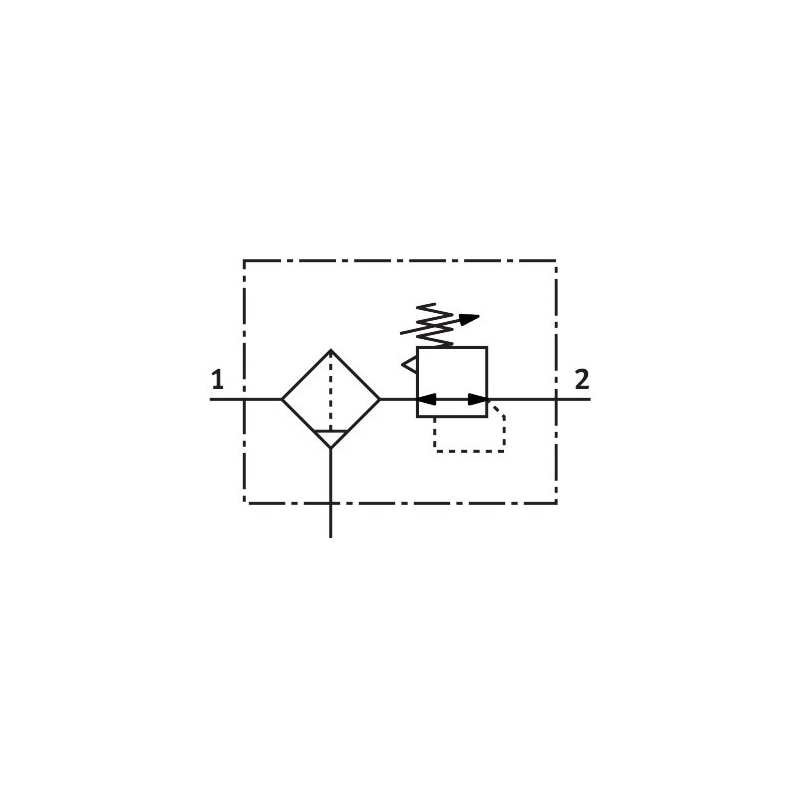

| Symbol | 991586 |
| Pressure gauge | G1/4 prepared |
| Operating pressure | 1 bar ... 20 bar |
| Pressure regulation range | 0.5 bar ... 16 bar |
| Max. pressure hysteresis | 0.2 bar |
| Standard nominal flow rate | 1370 l/min |
| ATEX category gas | II 2G |
| Type of ignition protection for gas | Ex h IIC T6 Gb X |
| ATEX category for dust | II 2D |
| Type of (ignition) protection for dust | Ex h IIIC T85°C Db X |
| Explosive ambient temperature | -20°C <= Ta <= +80°C |
| Explosion prevention and protection | Zone 21 (ATEX)Zone 22 (ATEX)Zone 2 (ATEX)Zone 1 (ATEX) |
| Operating medium | Inert gasCompressed air as per ISO 8573-1:2010 [-:9:-] |
| CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) |
| Corrosion resistance class (CRC) | 3 - High corrosion stress |
| Storage temperature | -20 °C ... 80 °C |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [6:8:4]Inert gas |
| Temperature of medium | -20 °C ... 80 °C |
| Ambient temperature | -20 °C ... 80 °C |
| Product weight | 1400 g |
| Type of mounting | Line installationWith accessoriesOptionally: |
| Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G¼ |
| Note on materials | RoHS-compliant |
| Housing material | Die-cast zinc |
| Material of bowl | Wrought aluminum alloy |
