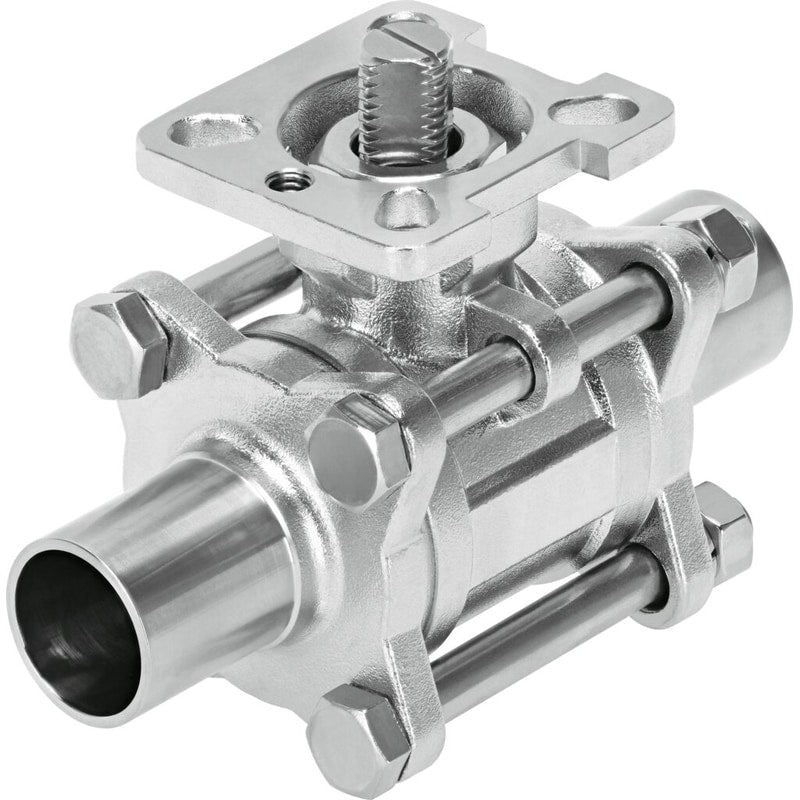

Ball valve
VZBD-1/2-W1-16-T-2-F0304-V14V14
4762847
GTIN 4052568275174
Vendor Festo
- Structural design
- 2-way ball valve
- Flow rate Kv
- 13 m³/h
- Fitting connection
- Weld-on end as per ASME-BPE
- Actuation type
- Mechanical
Regular price
$181.98
Unit price
VZBD-1/2-W1-16-T-2-F0304-V14V14 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VZBD-1/2-W1-16-T-2-F0304-V14V14
Regular price
$181.98
Unit price
VZBD-1/2-W1-16-T-2-F0304-V14V14 is backordered and will ship as soon as it is back in stock.
VZBM 2-way or 3-way ball valve in brass with L and T holes. VZBM can be automated or operated with a hand lever.
| Type code | VZBM |
|---|---|
| Design | 2-way ball valve |
| Actuation type | Mechanical |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of mounting | Line installation |
| Fitting connection | Rp1/4 |
| Switching position indication | Slot direction = flow direction |
| Inside diameter | 10 mm |
| Nominal width DN | 8 |
| Valve function | 2/2 |
| Flow direction | Reversible |
| Nominal pressure of fitting PN | 50 |
| Actuating torque at differential pressure, nominal pressure, process valve | 7.5 Nm |
| Based on norm | EN 10226-1 |
| Symbol | 00991458 |
| Medium | Water – no water vaporInert gasCompressed air as per ISO 8573-1:2010 [-:-:-]Neutral liquids |
| Temperature of medium | -15 °C ... 120 °C |
| Flow rate Kv | 6 m³/h |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Housing material | BrassNickel-plated |
| Material number of housing | CW617N |
| Seals material | NBRPTFE |
| Ball material | Chrome-platedBrass |
| Material number for ball | CW617N |
| Shaft material | Brass |
| Material number for shaft | CW617N |
| Product weight | 130 g |
| Certification | DVGW GasDVGW Water |
| CE marking (see declaration of conformity) | as per EU pressure equipment directive |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
