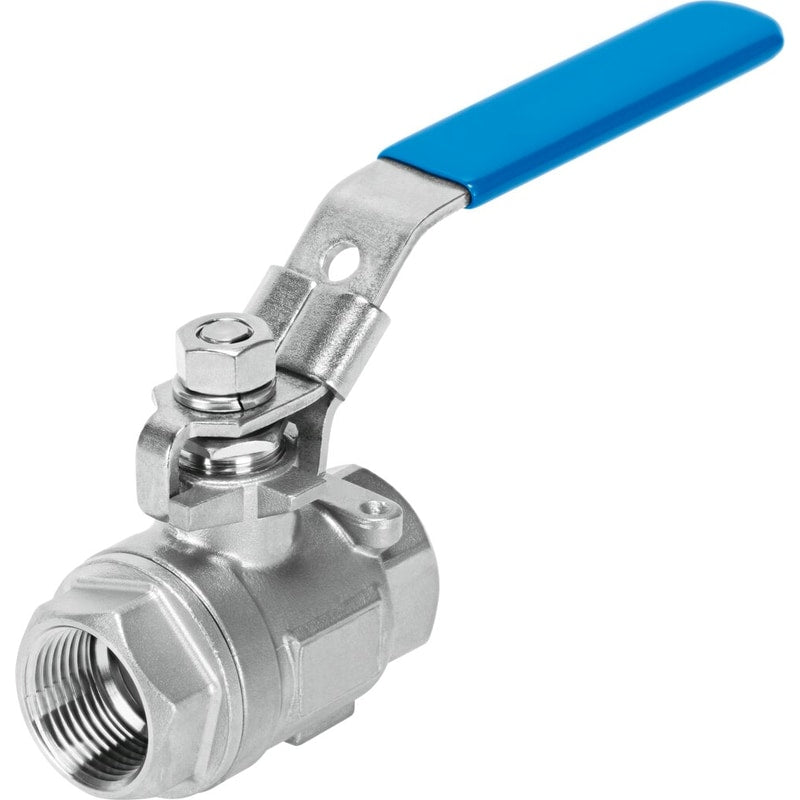

Ball valve
VZBE-11/4-T-63-D-2-M-V15V15
4745220
GTIN 4052568275129
Vendor Festo
- Structural design
- 2-way ball valve with hand lever
- Flow rate Kv
- 160 m³/h
- Fitting connection
- 1 1/4 NPT
- Actuation type
- Mechanical
Regular price
$112.97
Unit price
VZBE-11/4-T-63-D-2-M-V15V15 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VZBE-11/4-T-63-D-2-M-V15V15
Regular price
$112.97
Unit price
VZBE-11/4-T-63-D-2-M-V15V15 is backordered and will ship as soon as it is back in stock.
VZBM 2-way or 3-way ball valve in brass with L and T holes. VZBM can be automated or operated with a hand lever.
| Type code | VZBM |
|---|---|
| Design | 2-way ball valve |
| Actuation type | Mechanical |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of mounting | Line installation |
| Fitting connection | Rp3/4 |
| Switching position indication | Slot direction = flow direction |
| Flange hole pattern | F03 |
| Inside diameter | 20 mm |
| Nominal width DN | 20 |
| Valve function | 2/2 |
| Flow direction | Reversible |
| Nominal pressure of fitting PN | 25 |
| Breakaway torque at differential pressure, nominal pressure, fitting PN | 5 Nm |
| Based on norm | EN 10226-1ISO 5211 |
| Symbol | 00991458 |
| Medium | Water – no water vaporInert gasNeutral liquidsCompressed air as per ISO 8573-1:2010 [-:-:-] |
| Temperature of medium | -15 °C ... 90 °C |
| Flow rate Kv | 28 m³/h |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Housing material | Nickel-platedBrass |
| Material number of housing | CW617N |
| Seals material | FPMPTFEHNBR |
| Ball material | Chrome-platedBrass |
| Material number for ball | CW617N |
| Shaft material | Brass |
| Material number for shaft | CW617N |
| Product weight | 306 g |
| CE marking (see declaration of conformity) | as per EU pressure equipment directive |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
