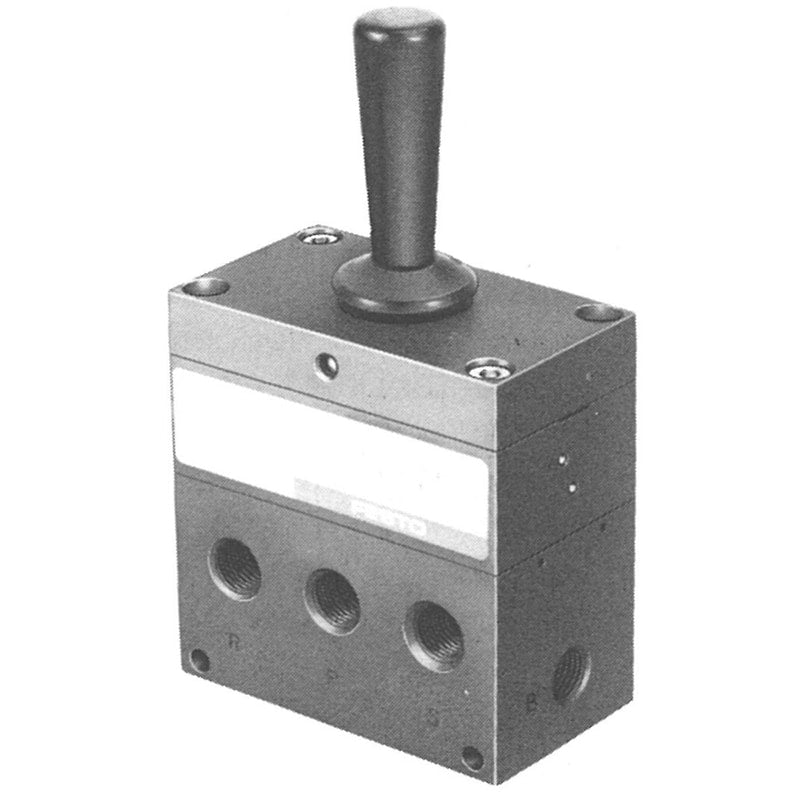

Toggle lever valve
H-5/3-1/4
4577
GTIN 4052568110574
Vendor Festo
Regular price
$1,158.38
Unit price
H-5/3-1/4 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
H-5/3-1/4
Regular price
$1,158.38
Unit price
H-5/3-1/4 is backordered and will ship as soon as it is back in stock.
toggle lever valve H-5/3-1/4 Valve function=5/3 closed, Type of actuation=manual, Standard nominal flow rate=680 l/min, Operating pressure=2 - 10 bar, Type of reset=mechanical spring

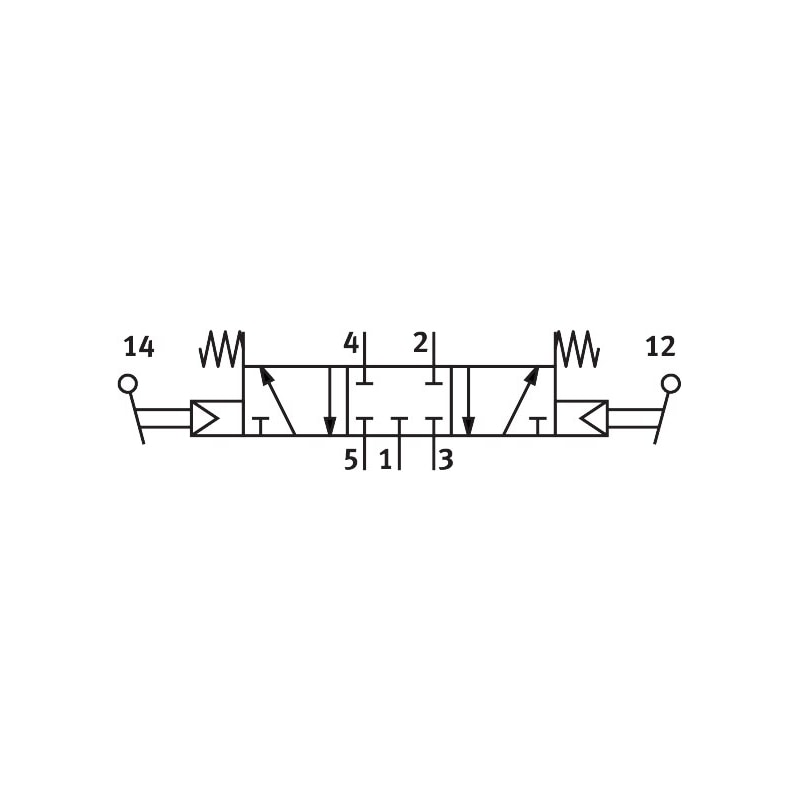

| Valve function | 5/3 closed |
|---|---|
| Type of actuation | manual |
| Standard nominal flow rate | 680 l/min |
| Operating pressure | 2 ... 10 bar |
| Type of reset | mechanical spring |
| Nominal size | 7 mm |
| Sealing principle | soft |
| Type of piloting | Piloted |
| Flow direction | non reversible |
| Ambient temperature | '-10 ... 60 °C |
| Product weight | 1,060 g |
| Pneumatic connection, port 1 | G1/4 |
| Pneumatic connection, port 2 | G1/4 |
