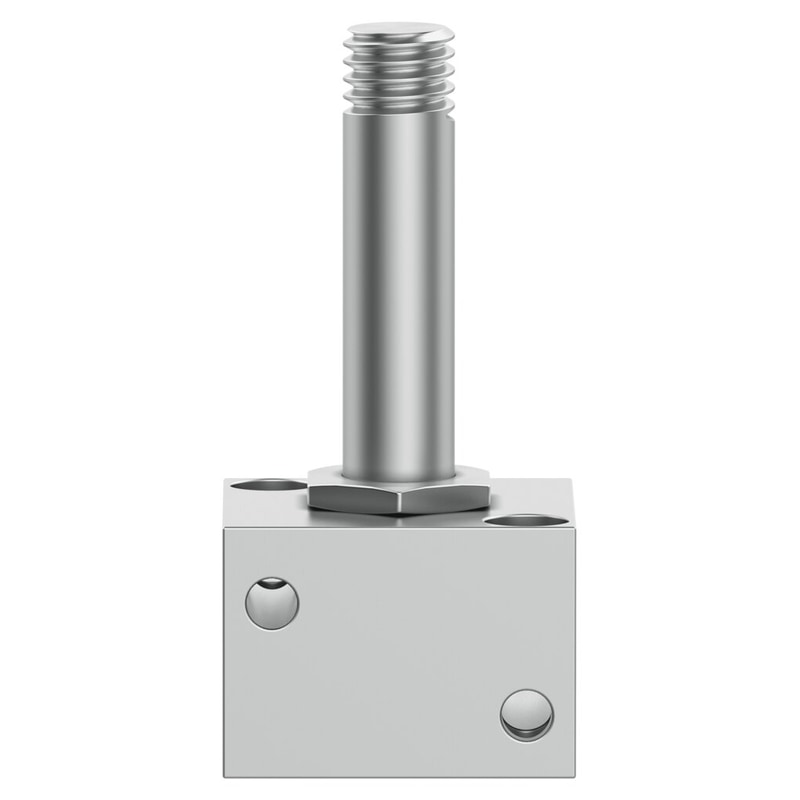

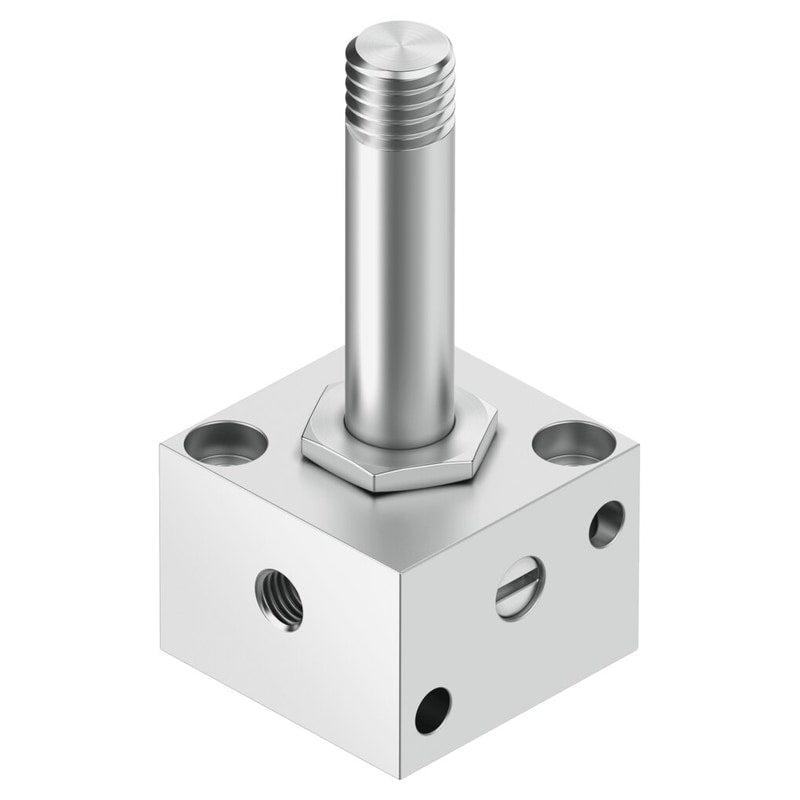

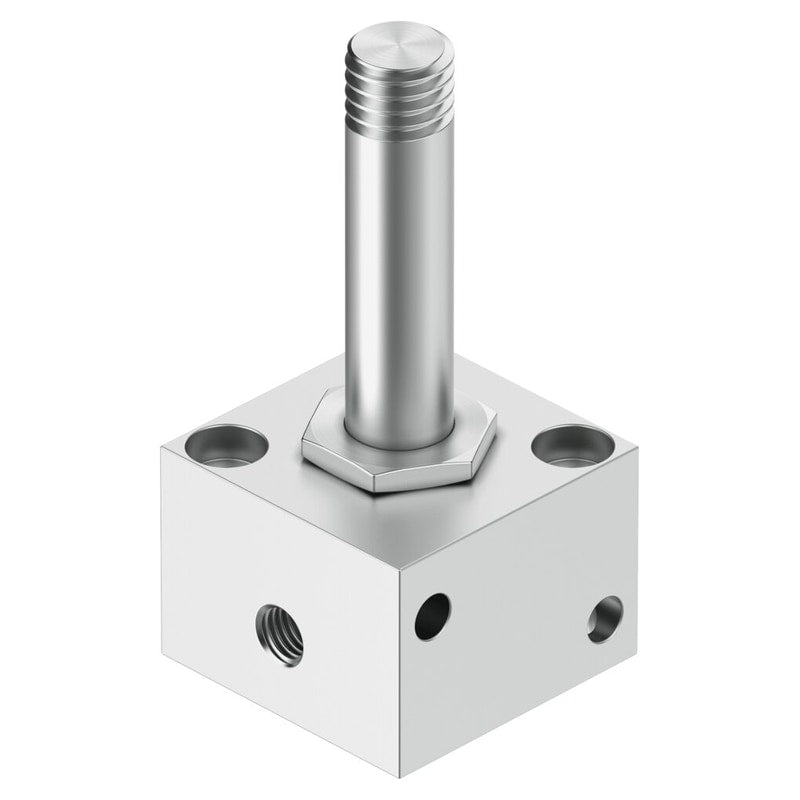

Air solenoid valve
MFH-2-M5
4573
GTIN 4052568008529
Vendor Festo
- Valve function
- 2/2, closed, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 75 l/min
- Pneumatic connection 1
- M5
- Actuation type
- Electrical
Regular price
$181.34
Unit price
MFH-2-M5 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MFH-2-M5
Regular price
$181.34
Unit price
MFH-2-M5 is backordered and will ship as soon as it is back in stock.
| Valve function | 2/2, closed, monostable |
|---|---|
| Actuation type | Electrical |
| Standard nominal flow rate | 75 l/min |
| Pneumatic working port | M5 |
| Operating pressure | 0 bar ... 8 bar |
| Design | Plate seat |
| Reset method | Mechanical spring |
| Certification | c CSA us (OL) |
| Nominal width | 1.5 mm |
| Type code | MFH |
| Exhaust air function | Without flow control option |
| Sealing principle | Soft |
| Mounting position | Any |
| Manual override | Detenting |
| Type of control | Direct |
| Flow direction | Non-reversible |
| Symbol | 991398 |
| Switching time off | 5 ms |
| On switching time | 6.2 ms |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Temperature of medium | -15 °C ... 60 °C |
| Ambient temperature | -15 °C ... 40 °C |
| Pneumatic connection 1 | M5 |
| Pneumatic connection 2 | M5 |
