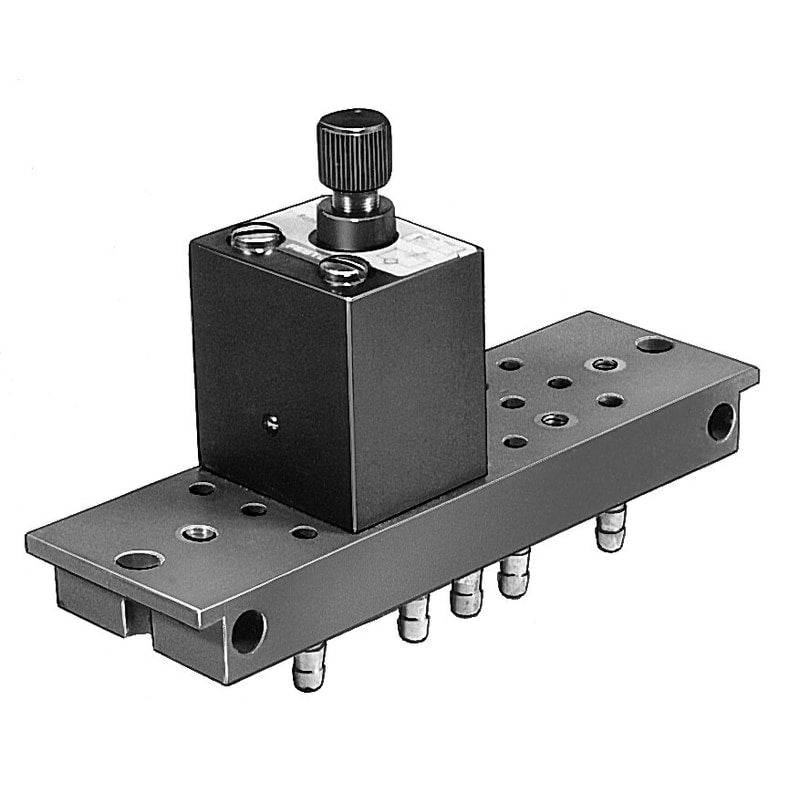

One-way flow control valve
GRF-PK-3
4565
GTIN 4052568110536
Vendor Festo
- Valve function
- Flow control non-return function
- Standard nominal flow rate in flow control direction
- 45 l/min
- Pneumatic connection 1
- PK-3
- Adjusting element
- Knurled screw
Regular price
$271.20
Unit price
GRF-PK-3 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
GRF-PK-3
Regular price
$271.20
Unit price
GRF-PK-3 is backordered and will ship as soon as it is back in stock.
one-way flow control valve GRF-PK-3 With sub-base 2n and barbed fitting for tubing ND 3. Valve function=One-way flow control function, Pneumatic connection, port 1=PK-3, Pneumatic connection, port 2=PK-3, Adjusting element=Knurled screw, Mounting type=with through hole
| Valve function | One-way flow control function |
|---|---|
| Pneumatic connection, port 1 | PK-3 |
| Pneumatic connection, port 2 | PK-3 |
| Adjusting element | Knurled screw |
| Mounting type | with through hole |
| Standard nominal flow rate in flow control direction | 45 l/min |
| Standard nominal flow rate in non-return direction | 45 l/min |
| Operating pressure | 0.5 ... 8 bar |
| Ambient temperature | '-10 ... 60 °C |
| Material housing | Wrought Aluminium alloy |
| Assembly position | Any |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
