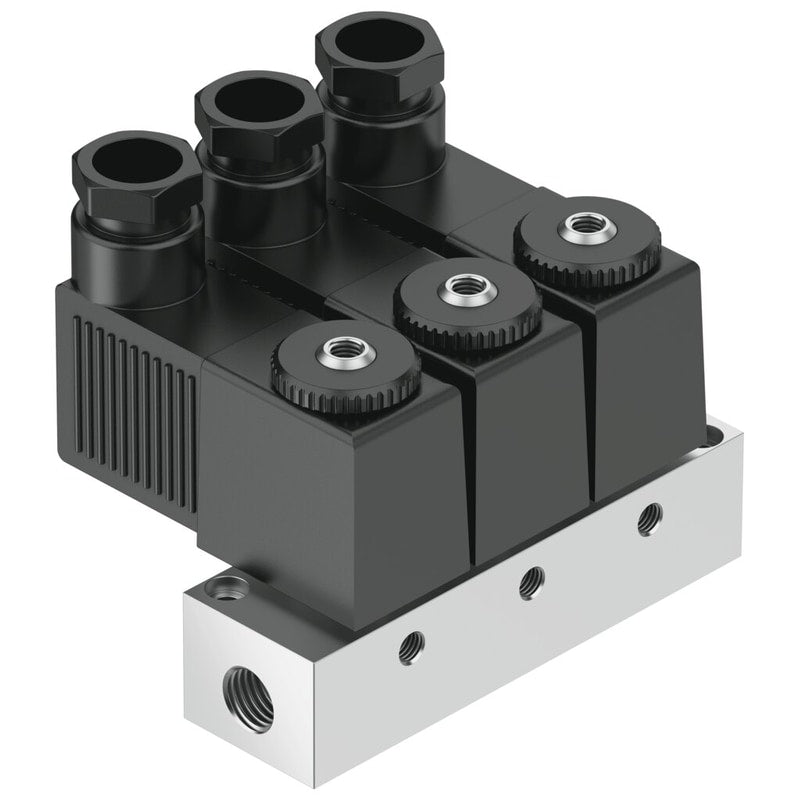

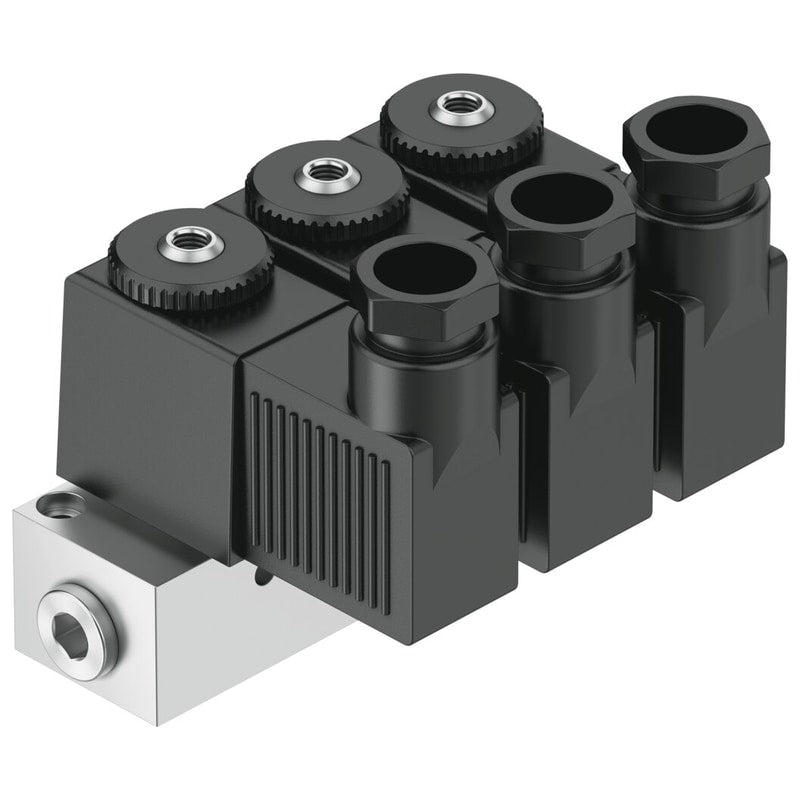

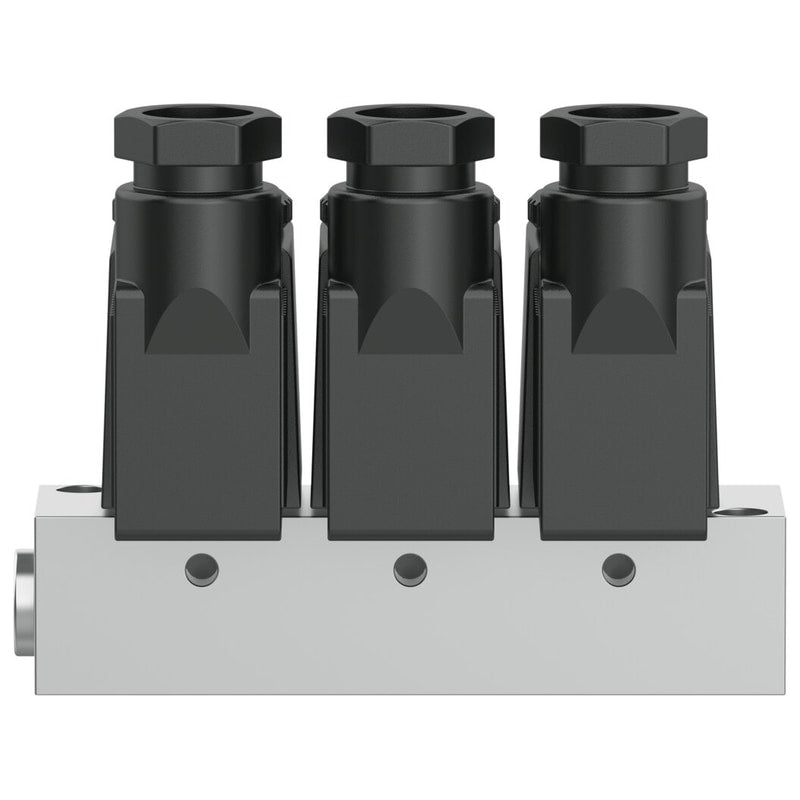

Air solenoid valve
BMFH-3-3-M5
4523
GTIN 4052568110529
Vendor Festo
- Valve function
- 3x3/2, closed, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 50 l/min
- Pneumatic connection 1
- G1/8
- Actuation type
- Electrical
Regular price
$545.22
Unit price
BMFH-3-3-M5 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
BMFH-3-3-M5
Regular price
$545.22
Unit price
BMFH-3-3-M5 is backordered and will ship as soon as it is back in stock.
| Valve function | 3x3/2, closed, monostable |
|---|---|
| Actuation type | Electrical |
| Standard nominal flow rate | 50 l/min |
| Pneumatic working port | M5 |
| Operating pressure | 0 bar ... 8 bar |
| Design | Poppet valve with return spring |
| Reset method | Mechanical spring |
| Degree of protection | IP65 |
| Certification | c CSA us (OL) |
| Nominal width | 1.3 mm |
| Type code | BMFH |
| Sealing principle | Soft |
| Max. no. of valve positions | 3 |
| Type of control | Direct |

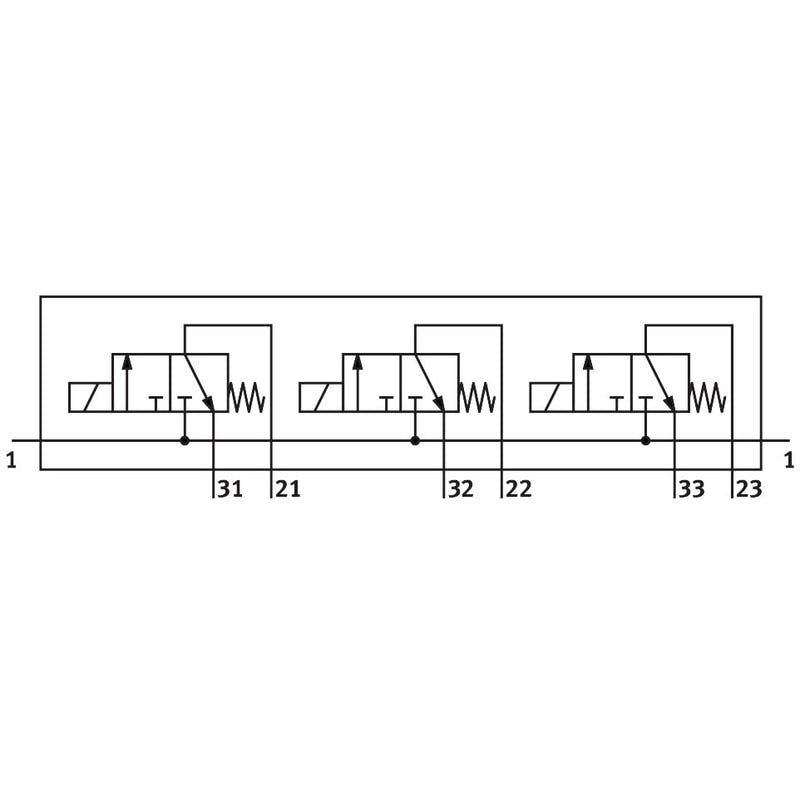

| Symbol | 991652 |
| Pick-up power consumption | 7.5 W |
| Holding power consumption | 6 W |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Temperature of medium | -10 °C ... 60 °C |
| Ambient temperature | -5 °C ... 40 °C |
| Product weight | 350 g |
| Electrical connection | Plug |
| Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | M5 |
| Pneumatic connection 3 | M5 |
| Housing material | Aluminum |
