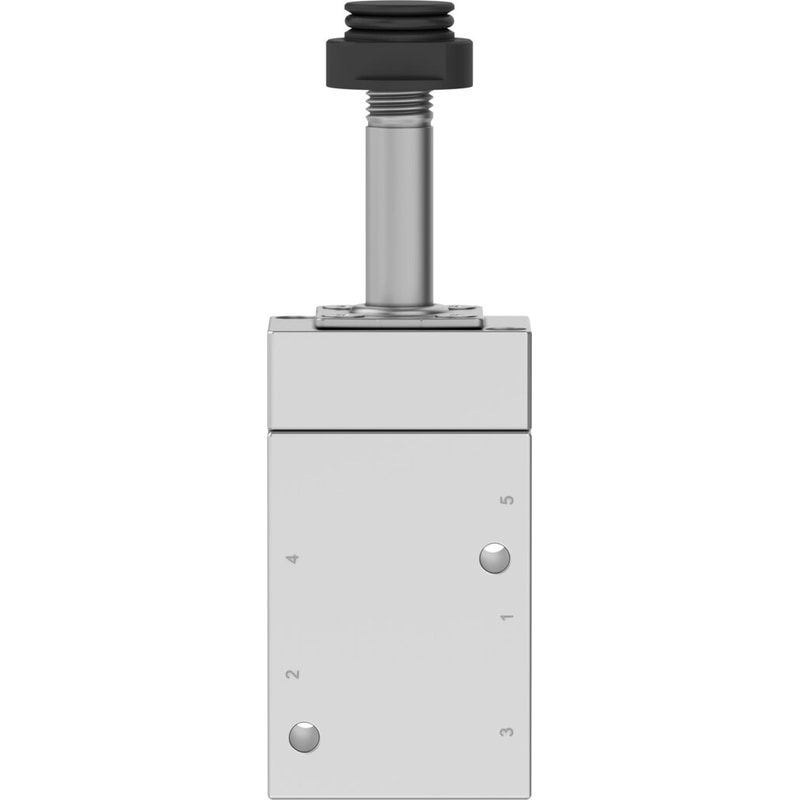

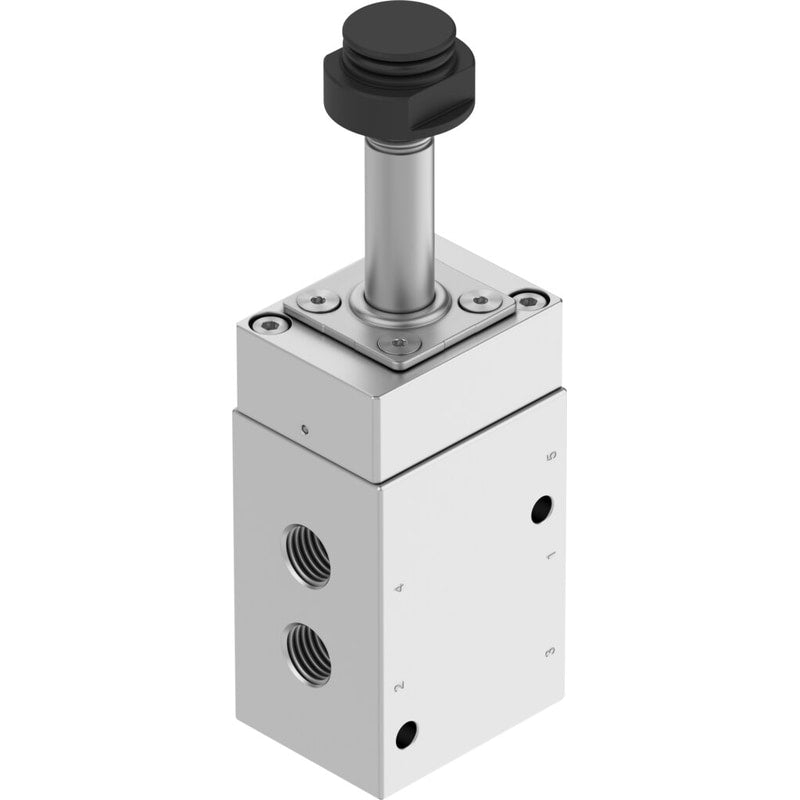

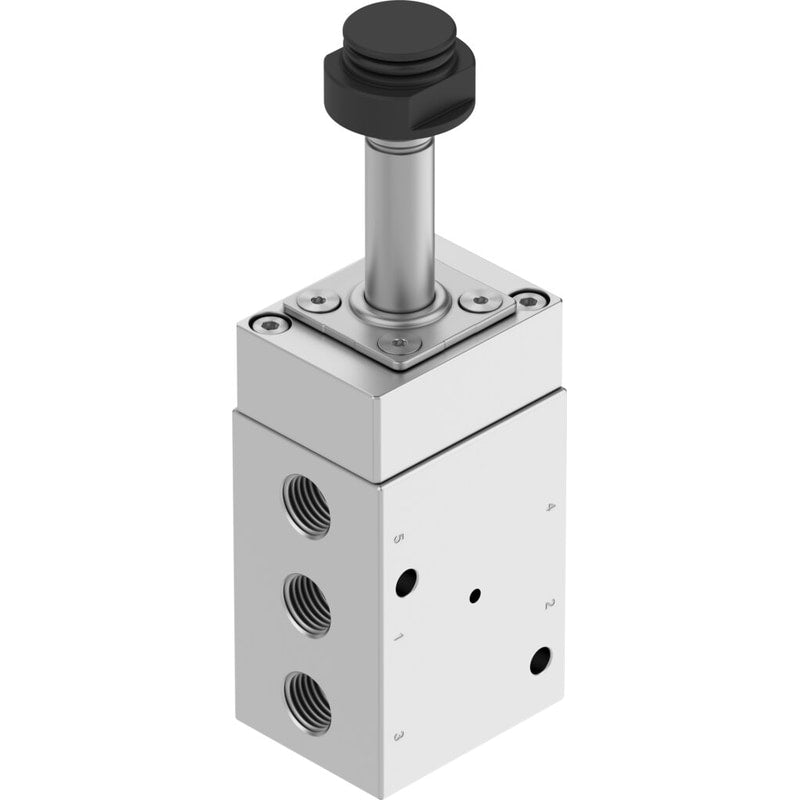

Pneumatic valve
VOFC-L-M52-M-G14-F19A
4514926
GTIN 4052568274818
Vendor Festo
- Valve function
- 5/2, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 1030 l/min
- Pneumatic connection 1
- G1/4
- Operating pressure
- 2.5 bar - 8 bar
Regular price
$562.44
Unit price
VOFC-L-M52-M-G14-F19A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VOFC-L-M52-M-G14-F19A
Regular price
$562.44
Unit price
VOFC-L-M52-M-G14-F19A is backordered and will ship as soon as it is back in stock.
valve VOFC-L-M52-M-G14-F19A Valve function=5/2 monostable, Type of actuation=electrical, Width=40 mm, Standard nominal flow rate=1030 l/min, Operating pressure=2,5 - 8 bar
| Valve function | 5/2 monostable |
|---|---|
| Type of actuation | electrical |
| Width | 40 mm |
| Standard nominal flow rate | 1,030 l/min |
| Operating pressure | 2.5 ... 8 bar |
| Design structure | Piston slide |
| Type of reset | mechanical spring |
| Protection class | IP65 |
| Nominal size | 6 mm |
| Sealing principle | soft |
| Assembly position | Any |
| Manual override | None |
| Type of piloting | Piloted |
