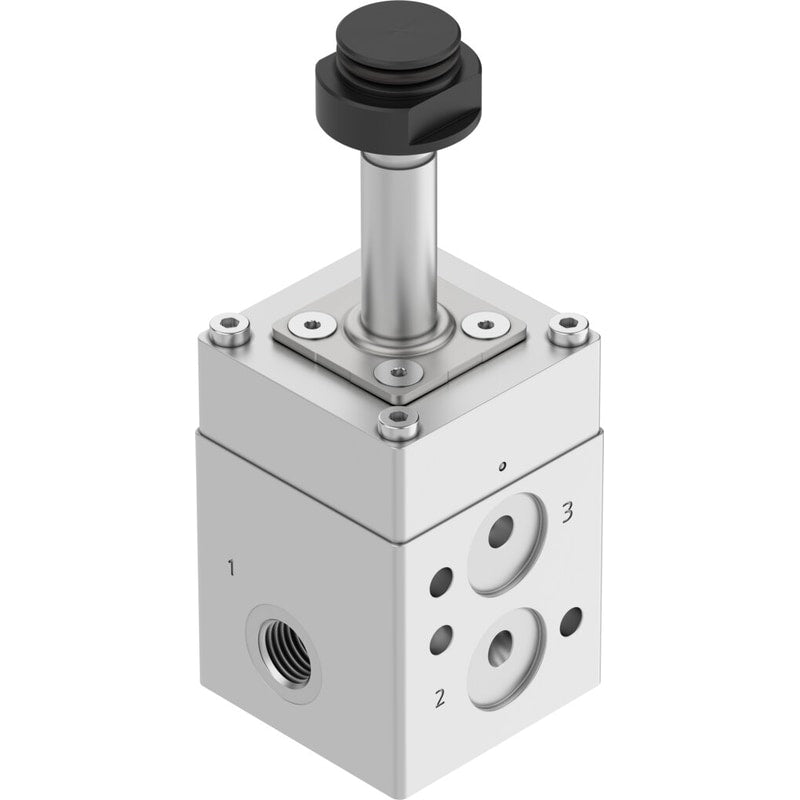

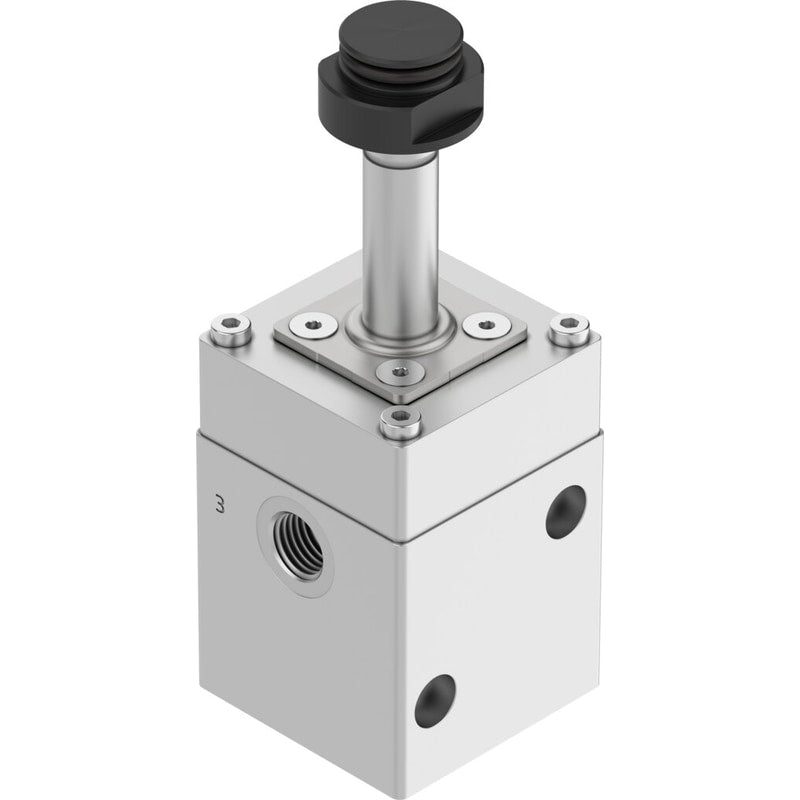

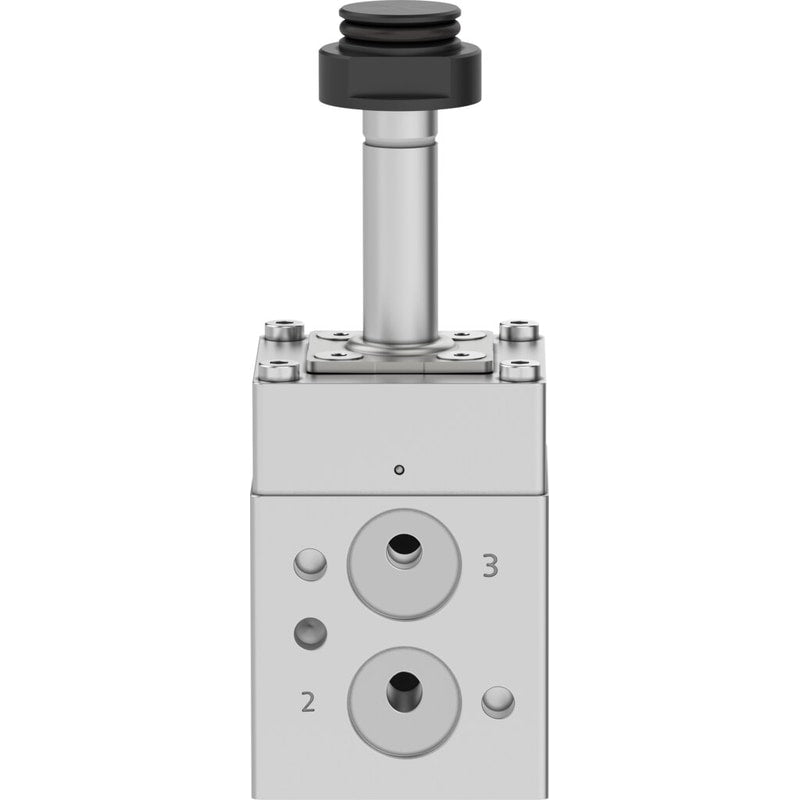

Pneumatic valve
VOFC-LT-M32C-M-FG14-F19A
4514739
GTIN 4052568274672
Vendor Festo
- Valve function
- 3/2, closed, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 601 l/min
- Pneumatic connection 1
- G1/4
- Operating pressure
- 1 bar - 8 bar
Regular price
$502.61
Unit price
VOFC-LT-M32C-M-FG14-F19A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VOFC-LT-M32C-M-FG14-F19A
Regular price
$502.61
Unit price
VOFC-LT-M32C-M-FG14-F19A is backordered and will ship as soon as it is back in stock.
| Valve function | 3/2, closed, monostable |
|---|---|
| Actuation type | Electrical |
| Width | 51 mm |
| Standard nominal flow rate | 766 l/min |
| Pneumatic working port | Sub-baseG1/4 |
| Operating pressure | 1 bar ... 8 bar |
| Design | Pilot-controlled piston poppet valve |
| Reset method | Mechanical spring |
| Degree of protection | IP65 |
| Nominal width | 6 mm |
| Type code | VOFC |
| Sealing principle | Hard |
| Mounting position | Any |
| Manual override | None |
| Type of control | Pilot-controlled |
| Pilot air supply port | Internal |
| Flow direction | Non-reversible |
| Symbol | 995568 |
| Safety function | Safe venting |
| Safety integrity level (SIL) | Up to SIL 3 low demand modeUp to SIL 3 high demand mode |
| Flow rate for piston valve pressurization | 0.5 m³/h |
| Flow rate for piston valve exhausting | 0.8 m³/h |
| Standard nominal flow rate 2-3 | 1467 l/min |
| On switching time | 24 ms |
| Certificate issuing authority | German Technical Control Board (TÃœV) V496.01/16 |
| Explosion prevention and protection | Zone 1 (ATEX)Zone 2 (ATEX)Zone 22 (ATEX)Zone 21 (ATEX) |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress |
| Temperature of medium | -25 °C ... 60 °C |
| Ambient temperature | -25 °C ... 60 °C |
| Product weight | 600 g |
| Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | Flange 1/4NAMUR connection diagram |
| Pneumatic connection 3 | G1/4 |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Seals material | NBR |
| Housing material | Aluminum, ematal coated |
