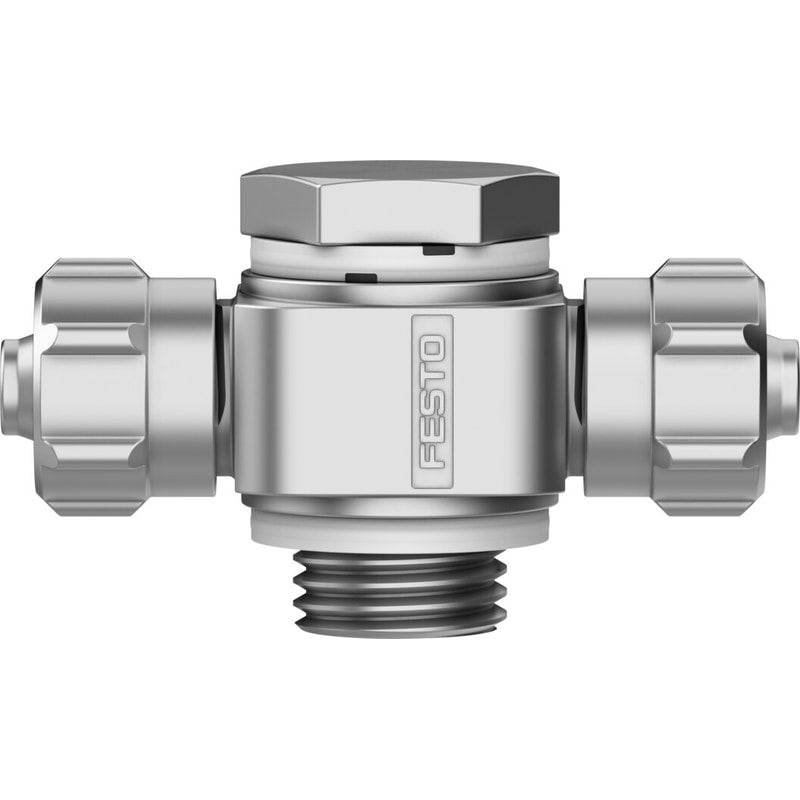

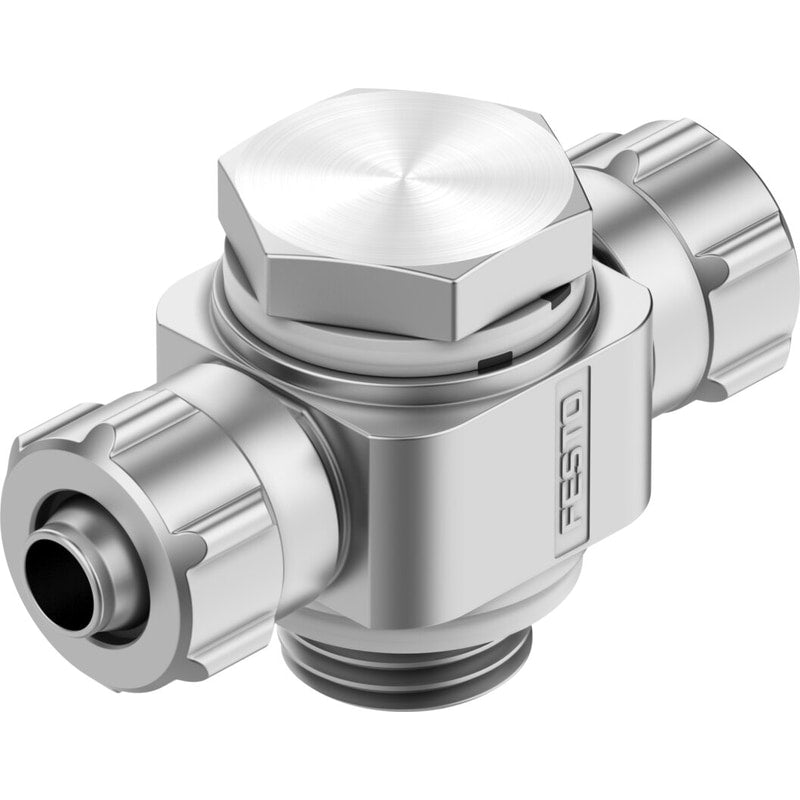

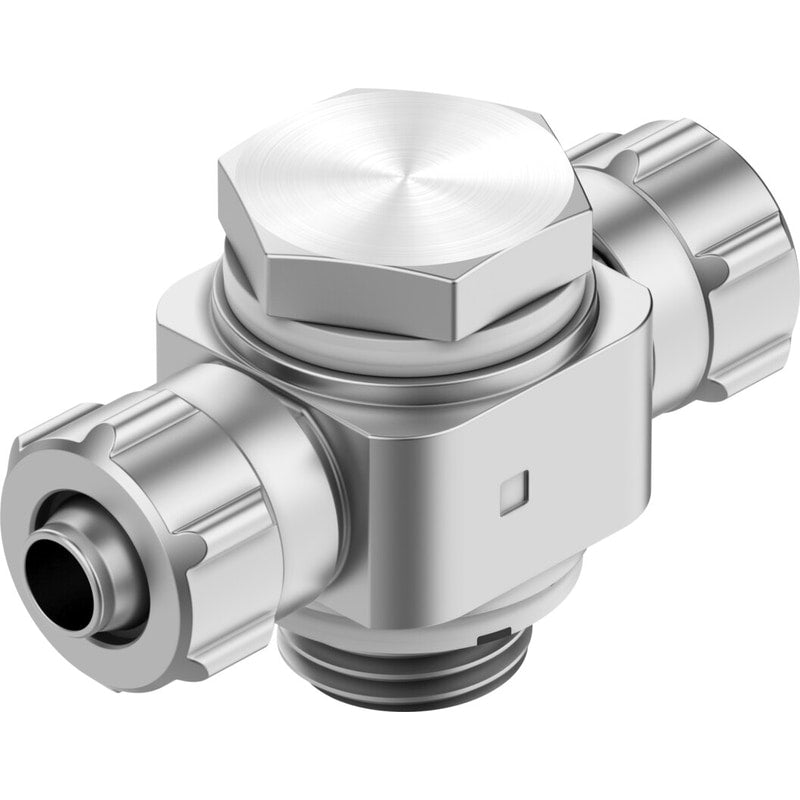

T quick connector
TCK-3/8-PK-9
4490
Vendor Festo
- Pneumatic connection 1
- External thread G3/8
- Pneumatic connection 2
- for barbed fitting, inside diameter 9 mm, with nut
- Ambient temperature
- -10 °C - 60 °C
- Housing material
- Die-cast zinc
Regular price
$36.78
Unit price
TCK-3/8-PK-9 T quick connector is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
TCK-3/8-PK-9
Regular price
$36.78
Unit price
TCK-3/8-PK-9 T quick connector is backordered and will ship as soon as it is back in stock.
quick T-connector TCK-3/8-PK-9 Swivelling with 2 sealing rings. Nominal size=8 mm, Type of seal on screw-in stud=Sealing ring, Assembly position=Any, Pneumatic connection, port 1=Male thread G3/8, Pneumatic connection, port 2=for barbed connector internal diameter 9 mm with nut
| Fitting Type | n/a |
|---|---|
| Nominal size | 8 mm |
| Type of seal on screw-in stud | Sealing ring |
| Assembly position | Any |
| Pneumatic connection, port 1 | Male thread G3/8 |
| Pneumatic connection, port 2 | for barbed connector internal diameter 9 mm with nut |
| Materials note | Conforms to RoHS |
| Material housing | Aluminium |
