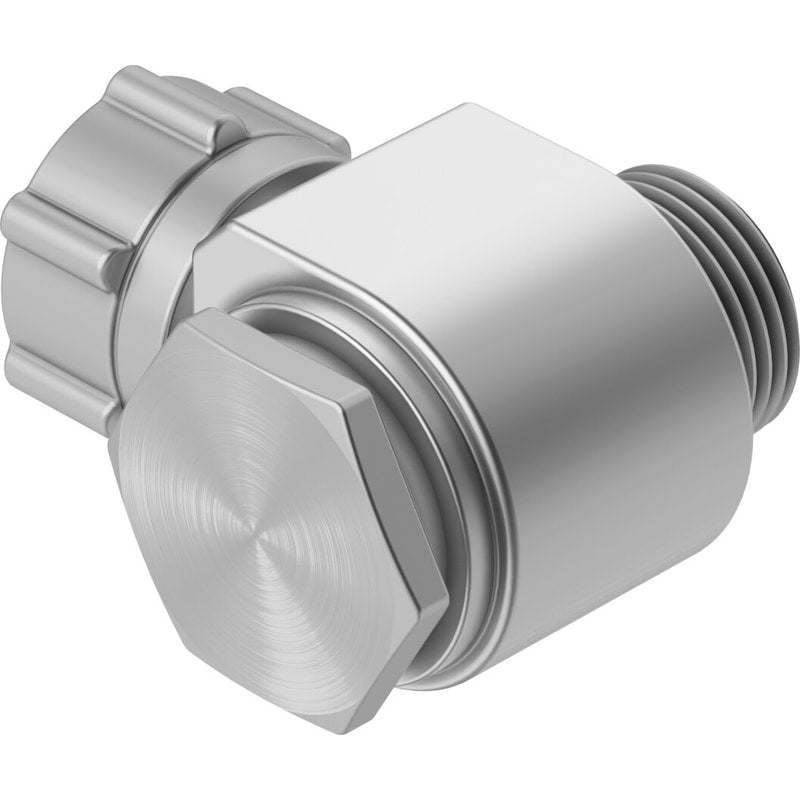

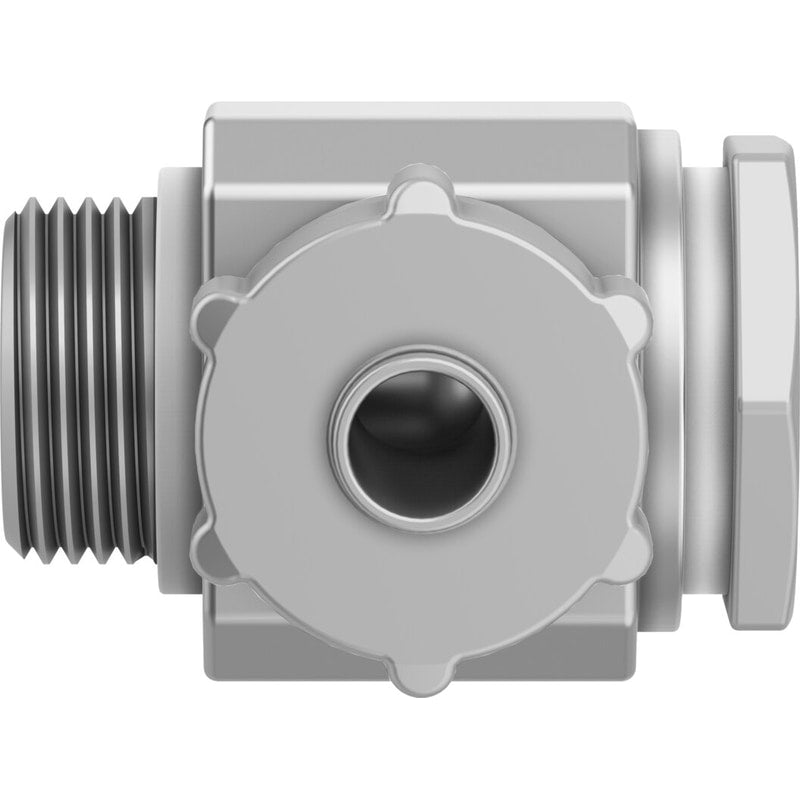

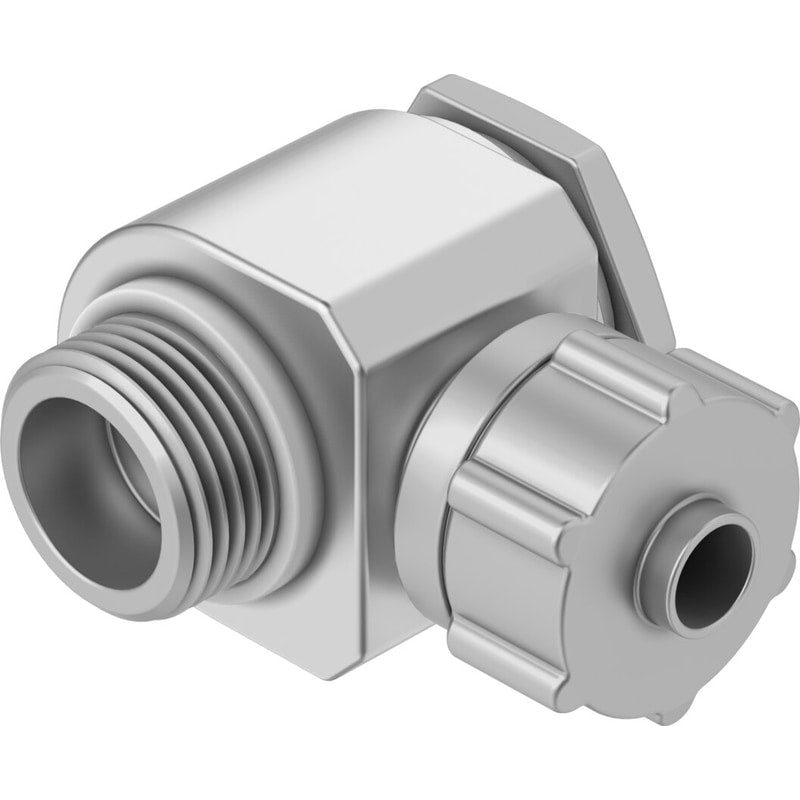

Elbow quick connector
LCK-1/8-PK-4
4469
GTIN 4052568000615
Vendor Festo
- Pneumatic connection 1
- External thread G1/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm - for barbed fitting, inside diameter 4 mm, with nut
- Ambient temperature
- -10 °C - 60 °C
Regular price
$12.30
Unit price
LCK-1/8-PK-4 Elbow quick connector is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
LCK-1/8-PK-4
Regular price
$12.30
Unit price
LCK-1/8-PK-4 Elbow quick connector is backordered and will ship as soon as it is back in stock.
elbow quick connector LCK-1/8-PK-4 Swivelling with 2 sealing rings. Nominal size=2,9 mm, Type of seal on screw-in stud=Sealing ring, Assembly position=Any, Pneumatic connection, port 1=Male thread G1/8, Pneumatic connection, port 2=for barbed connector internal diameter 4 mm with nut
| Fitting Type | Miniature Barb Elbow |
|---|---|
| Nominal size | 2.9 mm |
| Type of seal on screw-in stud | Sealing ring |
| Assembly position | Any |
| connection 1 | Male thread G1/8 |
| connection 2 | for barbed connector internal diameter 4 mm with nut |
| Materials note | Free of copper and PTFEConforms to RoHS |
| Material housing | Zinc die-casting |
