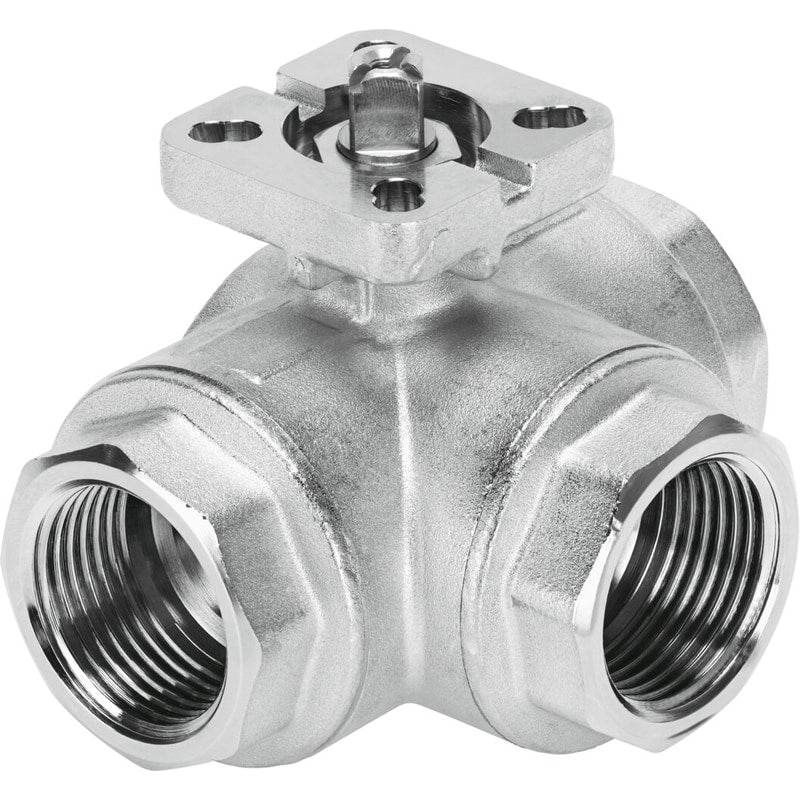

Ball valve
VZBM-11/4-RP-40-F-3L-F0405-B2B3
4451863
GTIN 4052568291716
Vendor Festo
- Structural design
- 3-way ball valve - Drilled L hole
- Fitting connection
- Rp1 1/4
- Actuation type
- Mechanical
Regular price
$329.93
Unit price
VZBM-11/4-RP-40-F-3L-F0405-B2B3 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VZBM-11/4-RP-40-F-3L-F0405-B2B3
Regular price
$329.93
Unit price
VZBM-11/4-RP-40-F-3L-F0405-B2B3 is backordered and will ship as soon as it is back in stock.
| Structural design | 3-way ball valve Drilled L hole |
|---|---|
| Actuation type | Mechanical |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of mounting | Line installation |
| Fitting connection | Rp1 1/4 |
| Switching position indication | Slot direction = flow direction |
| Flange hole pattern | F04 F05 |
| Inside diameter | 32 mm |
| Nominal width DN | 32 |
| Valve function | 3/2 |
| Flow direction | Reversible |
| Nominal pressure of fitting PN | 40 |
| Breakaway torque at differential pressure, nominal pressure, fitting PN | 16.7 Nm |
| Based on norm | EN 10226-1 ISO 5211 |
| Symbol | 00991888 |
| Medium | Compressed air as per ISO 8573-1:2010 [-:-:-] Inert gas Water – no water vapor Neutral liquids |
| Temperature of medium | -20 °C ... 130 °C |
| Flow rate Kv type L | 121 m³/h |
| Note on materials | Contains paint-wetting impairment substances RoHS-compliant |
| Housing material | Brass Nickel-plated |
| Material number of housing | CW617N |
| Seals material | HNBR PTFE |
| Ball material | Brass Chrome-plated |
| Material number for ball | CW614N |
| Shaft material | Brass |
| Material number for shaft | CW614N |
| Product weight | 3000 g |
| CE marking (see declaration of conformity) | as per EU pressure equipment directive |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
