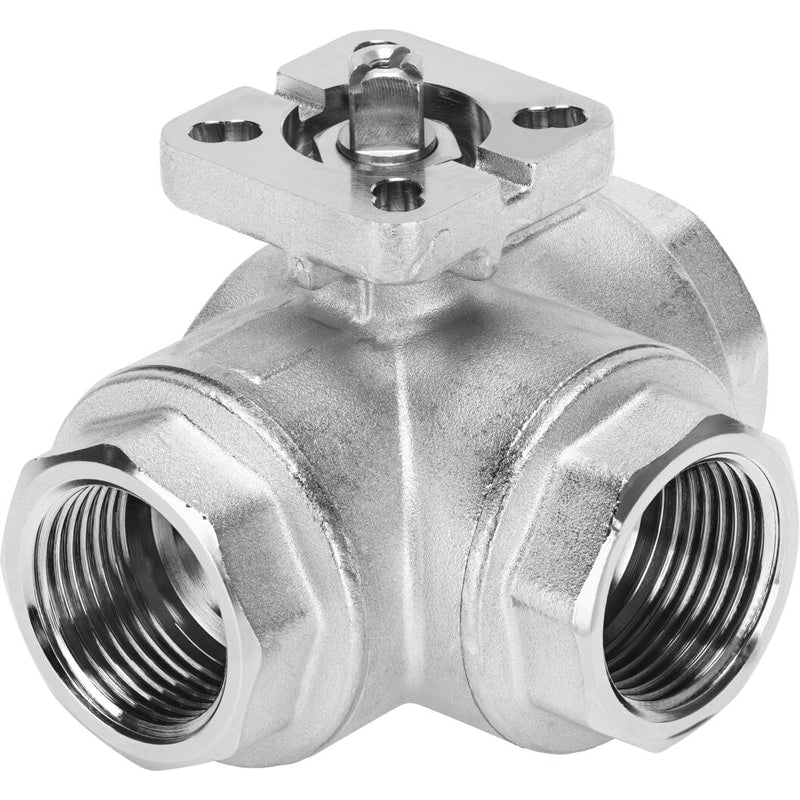

Ball valve
VZBM-11/2-RP-25-F-3T-F0405-B2B3
4451859
GTIN 4052568291679
Vendor Festo
- Structural design
- 3-way ball valve - Drilled T hole
- Fitting connection
- Rp1 1/2
- Actuation type
- Mechanical
Regular price
$362.48
Unit price
VZBM-11/2-RP-25-F-3T-F0405-B2B3 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VZBM-11/2-RP-25-F-3T-F0405-B2B3
Regular price
$362.48
Unit price
VZBM-11/2-RP-25-F-3T-F0405-B2B3 is backordered and will ship as soon as it is back in stock.
| Type code | VZBM |
|---|---|
| Design | 3-way ball valveDrilled T hole |
| Actuation type | Mechanical |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of mounting | Line installation |
| Fitting connection | Rp1 1/2 |
| Switching position indication | Slot direction = flow direction |
| Flange hole pattern | F04F05 |
| Inside diameter | 38 mm |
| Nominal width DN | 40 |
| Valve function | 3/2 |
| Flow direction | Reversible |
| Nominal pressure of fitting PN | 25 |
| Breakaway torque at differential pressure, nominal pressure, fitting PN | 26.7 Nm |
| Based on norm | EN 10226-1ISO 5211 |
| Symbol | 00991888 |
| Medium | Compressed air as per ISO 8573-1:2010 [-:-:-]Inert gasWater – no water vaporNeutral liquids |
| Temperature of medium | -20 °C ... 130 °C |
| Flow rate Kv type T corner | 200 m³/h |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Housing material | BrassNickel-plated |
| Material number of housing | CW617N |
| Seals material | HNBRPTFE |
| Ball material | BrassChrome-plated |
| Material number for ball | CW614N |
| Shaft material | Brass |
| Material number for shaft | CW614N |
| Product weight | 3190 g |
| CE marking (see declaration of conformity) | as per EU pressure equipment directive |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
