Air solenoid valve
MFH-5-PK-3
4448
GTIN 4052568110475
Vendor Festo
- Valve function
- 5/2, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 105 l/min
- Pneumatic connection 1
- PK-3
- Operating pressure
- 3 bar - 8 bar
Regular price
$399.73
Unit price
MFH-5-PK-3 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MFH-5-PK-3
Regular price
$399.73
Unit price
MFH-5-PK-3 is backordered and will ship as soon as it is back in stock.

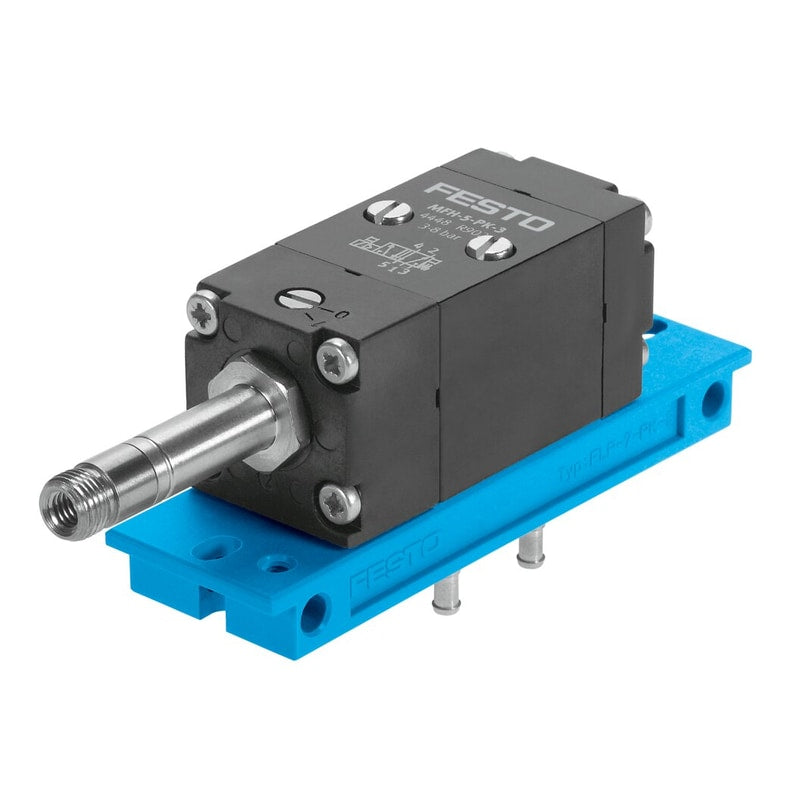

solenoid valve MFH-5-PK-3 With manual override, without solenoid coil or socket. Solenoid coil and socket should be ordered separately. Valve function=5/2 monostable, Standard nominal flow rate=105 l/min, Operating pressure=3 - 8 bar, Design structure=Poppet seat, Nominal size=2,5 mm
| Valve function | 5/2 monostable |
|---|---|
| Standard nominal flow rate | 105 l/min |
| Operating pressure | 3 ... 8 bar |
| Design structure | Poppet seat |
| Nominal size | 2.5 mm |
| Sealing principle | soft |
| Switching time off | 22 ms |
| Switching time on | 10 ms |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Medium temperature | '-10 ... 60 °C |
| Ambient temperature | '-5 ... 40 °C |
| Product weight | 270 g |
| Mounting type | OptionalOn sub-baseOn mounting framewith through hole |
