Air solenoid valve
JMFH-5-PK-3
4447
GTIN 4052568110468
Vendor Festo
- Valve function
- 5/2, bistable
- Normal nominal flow rate (normalized to DIN 1343)
- 105 l/min
- Pneumatic connection 1
- PK-3
- Operating pressure
- 2 bar - 8 bar
Regular price
$547.93
Unit price
JMFH-5-PK-3 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
JMFH-5-PK-3
Regular price
$547.93
Unit price
JMFH-5-PK-3 is backordered and will ship as soon as it is back in stock.

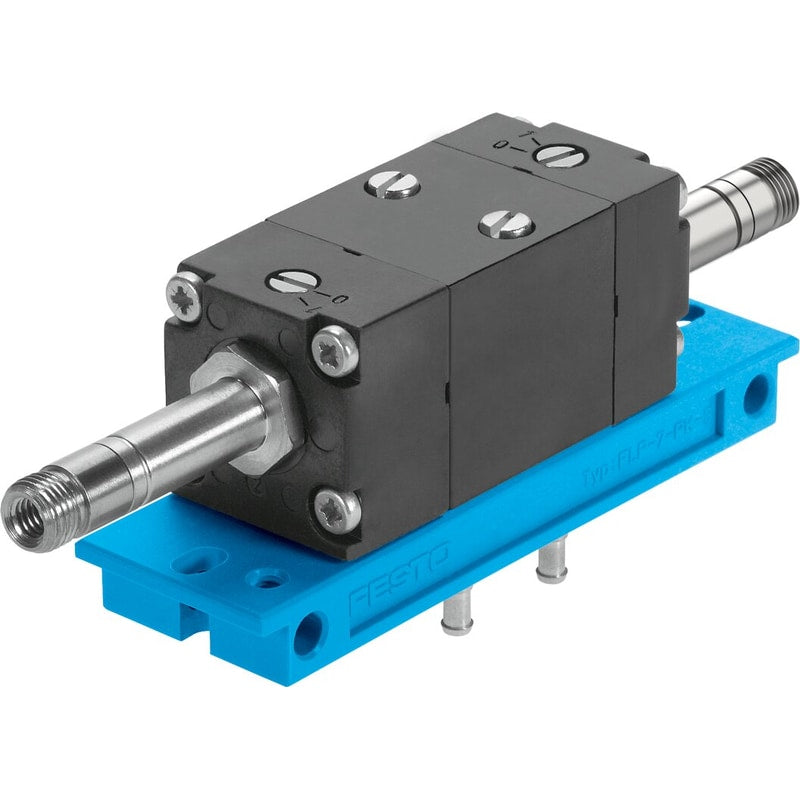

solenoid valve JMFH-5-PK-3 With manual overrides, without solenoid coils or sockets. Solenoid coils and sockets should be ordered separately. Valve function=5/2 bistable, Standard nominal flow rate=105 l/min, Operating pressure=2 - 8 bar, Design structure=Poppet seat, Nominal size=2,5 mm
| Valve function | 5/2 bistable |
|---|---|
| Standard nominal flow rate | 105 l/min |
| Operating pressure | 2 ... 8 bar |
| Design structure | Poppet seat |
| Nominal size | 2.5 mm |
| Sealing principle | soft |
| Switching time reversal | 13 ms |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Medium temperature | 0 ... 60 °C |
| Ambient temperature | 0 ... 40 °C |
| Product weight | 380 g |
| Mounting type | OptionalOn sub-baseOn mounting framewith through hole |
| Pneumatic connection, port 1 | PK-3 |
