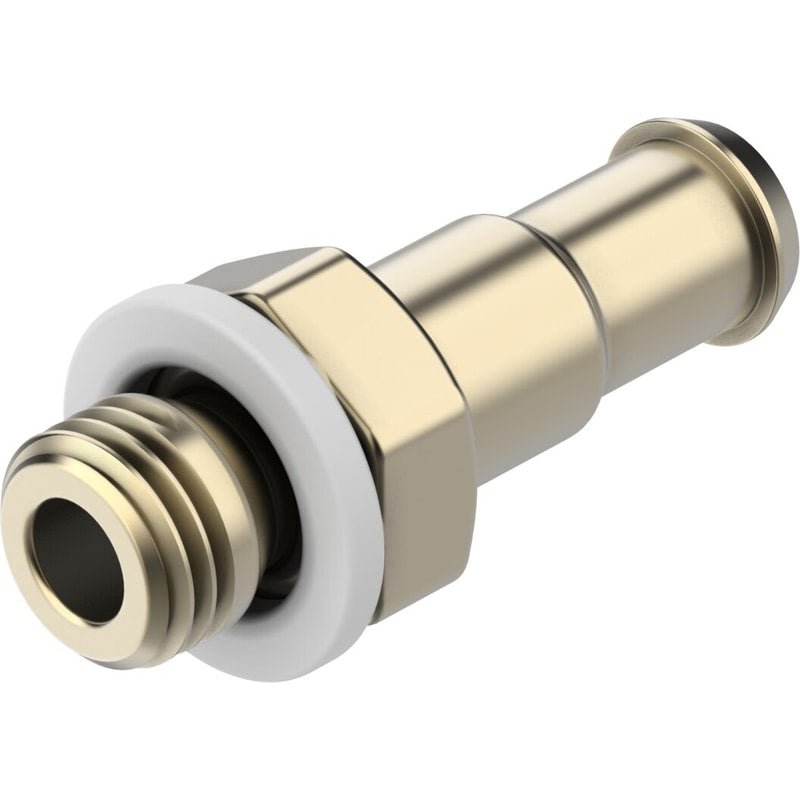

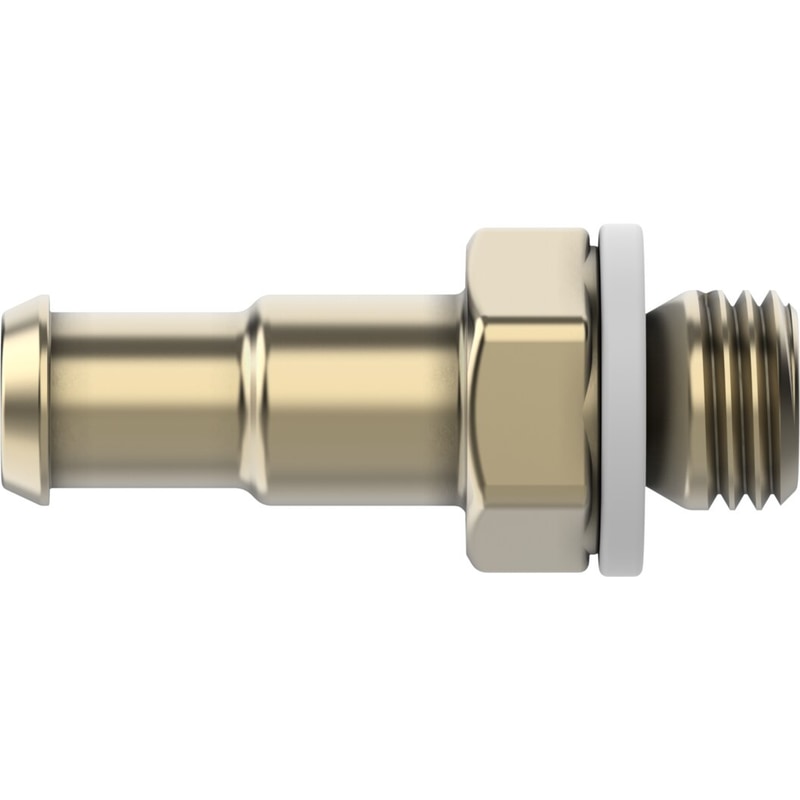

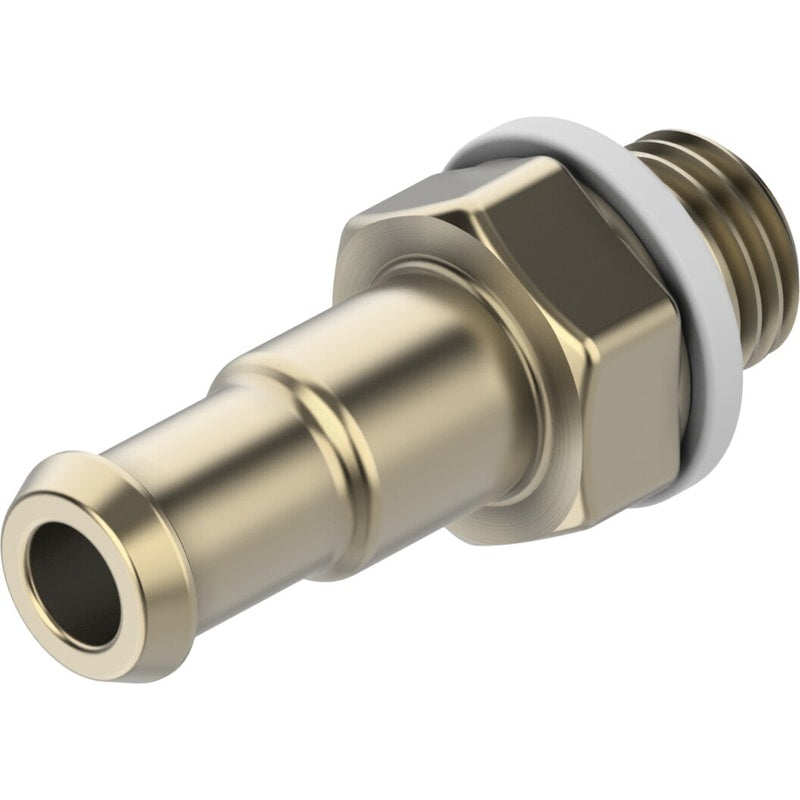

Barb fitting
N-M5-PK-3 Barbed fitting
4446
GTIN 4052568018771
Vendor Festo
- Pneumatic connection 1
- External thread M5
- Pneumatic connection 2
- for pneumatic tubing outside diameter 4 mm
- Nominal width
- 2.5 mm
- Ambient temperature
- -10 °C - 60 °C
Regular price
$3.46
Unit price
N-M5-PK-3 Barbed fitting is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
N-M5-PK-3 Barbed fitting
Regular price
$3.46
Unit price
N-M5-PK-3 Barbed fitting is backordered and will ship as soon as it is back in stock.
barbed fitting N-M5-PK-3 With sealing ring. Nominal size=2,5 mm, Type of seal on screw-in stud=Sealing ring, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-], Note on operating and pilot medium=Lubricated operation possible (subsequently required for further operation), Pneumatic connection, port 1=Male thread M5
| Fitting Type | Barbed Straight |
|---|---|
| Nominal size | 2.5 mm |
| Type of seal on screw-in stud | Sealing ring |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| connection 1 | Male thread M5 |
| connection 2 | For tubing outside diameter 4 mm |
