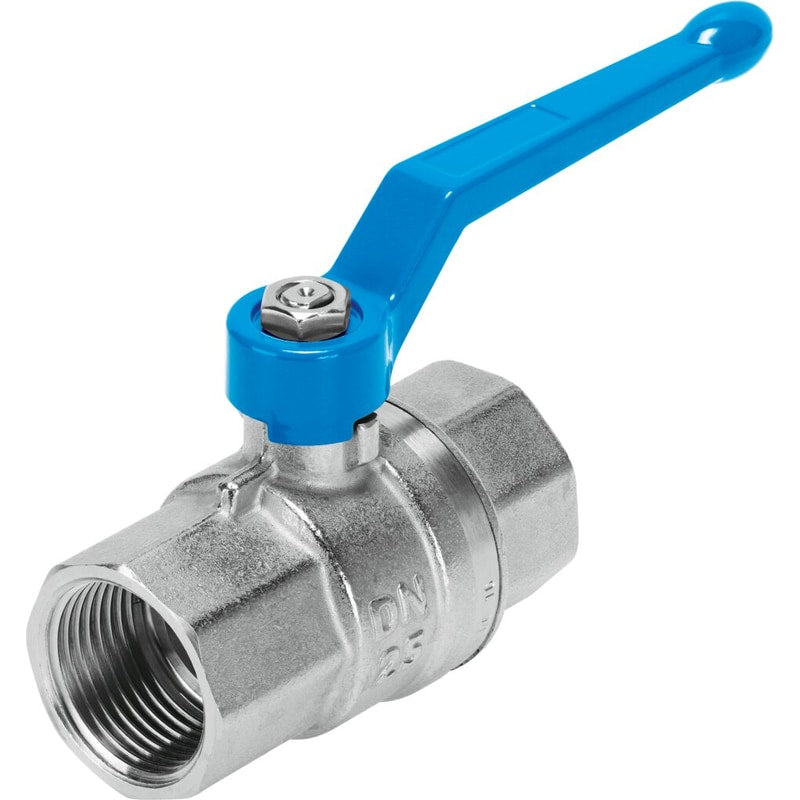

VZBM-1/4-RP-50-D-2-M-B2B3
4405684
Vendor Festo
Regular price
$18.60
Unit price
VZBM-1/4-RP-50-D-2-M-B2B3 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VZBM-1/4-RP-50-D-2-M-B2B3
Regular price
$18.60
Unit price
VZBM-1/4-RP-50-D-2-M-B2B3 is backordered and will ship as soon as it is back in stock.
2-way or 3-way ball valve actuator: the ideal combination of pneumatic quarter turn actuator and ball valve.
| Type code | VZBA |
|---|---|
| Design | Drilled T hole3-way ball valve |
| Actuation type | Pneumatic |
| Mounting position | Any |
| Type of mounting | Line installation |
| Fitting connection | Rp1/4 |
| Switching position indication | Slot direction = flow direction |
| Nominal width DN | 8 |
| Operating pressure | 6 bar ... 8.4 bar |
| Nominal pressure of fitting PN | 63 |
| Symbol | 00995330 |
| Medium | Neutral liquidsInert gasWater – no water vaporCompressed air as per ISO 8573-1:2010 [-:-:-] |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Temperature of medium | -10 °C ... 200 °C |
| Ambient temperature | -10 °C ... 80 °C |
| Flow rate Kv type T corner | 4.5 m³/h |
| Flow rate Kv type T straight | 8 m³/h |
| Max. surface temperature of assembly | TX |
| Explosion group of assembly | IIC, IIIC |
| Note on materials | RoHS-compliantContains paint-wetting impairment substances |
| Housing material | High-alloy stainless steel |
| Material number of housing | 1.4408 |
| Seals material | PTFEPTFE-reinforced |
| Ball material | High-alloy stainless steel |
| Material number for ball | 1.4408 |
| Shaft material | High-alloy stainless steel |
| Material number for shaft | 1.4401 |
| Product weight | 2950 g |
| Corrosion resistance class (CRC) | 3 - High corrosion stress |
| Explosive ambient temperature | -10°C <= Ta <= +60°C |
| Explosion prevention and protection | Zone 21 (ATEX)Zone 1 (ATEX)Zone 22 (ATEX)Zone 2 (ATEX) |
