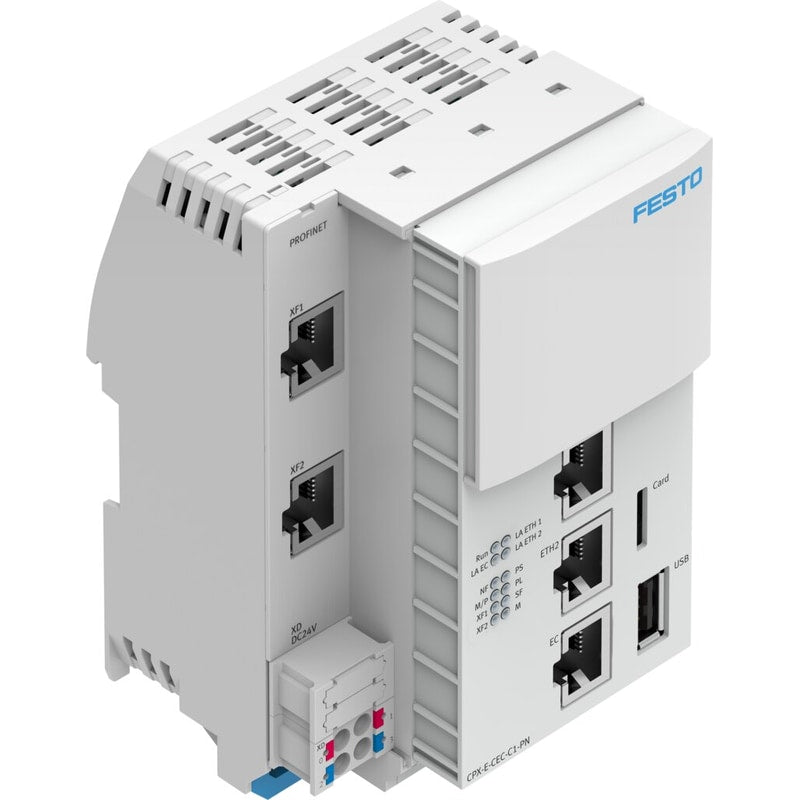

Controller
CPX-E-CEC-M1-PN
4252743
GTIN 4052568291556
Vendor Festo
Regular price
$2,740.90
Unit price
CPX-E-CEC-M1-PN is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CPX-E-CEC-M1-PN
Regular price
$2,740.90
Unit price
CPX-E-CEC-M1-PN is backordered and will ship as soon as it is back in stock.
| Dimensions W x L x H | 75.9 mm x 124.3 mm x 82.5 mm |
|---|---|
| Power supply, type of connection | Terminal strip |
| Vibration resistance | Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6 |
| Ethernet interface, protocol | Modbus® TCPEasyIPTCP/IP |
| Fieldbus interface, connection type | 2x socket |
| Storage medium | Micro SD <= 32 GBUSB memory stick <= 32 GB |
| Fieldbus interface 2, protocol | EtherCAT Master |
| Note on ambient temperature | -5 - 60 °C for vertical installation |
| Fieldbus interface 2, connection type | Socket |
| Intrinsic current consumption at nominal operating voltage for electronics/sensors | Typically 150 mA |
| Ethernet interface, connection technology | RJ45 |
| Fieldbus interface 2, connection technology | RJ45 |
| Fieldbus interface 2, connection pattern | 995789 |
| Fieldbus interface, connection pattern | 995789 |
| Power supply, connection pattern | 995847 |
| Fieldbus interface, function | Bus connection, incoming/forwarding |
| Ethernet interface, transmission rate | 10 Mbit/s100 Mbit/s |
| Power supply, function | Electronics and sensors |
| USB interface | USB 2.0 |
| Fieldbus interface 2, transmission rate | 100 Mbit/s |
| Fieldbus interface 2, galvanic isolation | yes |
| Power supply, information on conductor diameter | 0.2 - 2.5 mm² for flexible conductors without cable end sleeves |
| Ethernet interface, function | SwitchDiagnostics |
| System parameter | Diagnostic memorySystem startFail-safe response |
| Fieldbus interface 2, function | Bus connection, forwarding |
| Ethernet interface, connection pattern | 995789 |
| Fieldbus interface, connection technology | RJ45 |
| Power supply, connection technology | Spring-loaded terminal |
| Fieldbus interface, protocol | PROFINET IO |
| Fieldbus interface 2, type | Ethernet |
| Shock resistance | Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27 |
| Module parameters | Undervoltage diagnosticsAnalog module process value representationChannel alarms for undervoltageChannel alarm bundling |
| Ethernet interface, connection type | 2x socket |
| Diagnostics via LED | Maintenance requiredNetwork status, port 1Engineering port 2 network statusNetwork errorEtherCAT network statusNetwork status, engineering port 1System faultNetwork status, port 2Power supply for electronics/sensorsRunForce modeLoad power supply |
| Fieldbus interface 2, number of poles/wires | 8 |
| Ethernet interface, number of poles/wires | 8 |
| Nominal operating voltage DC for electronics/sensors | 24 V |
| Power supply, number of pins/wires | 4 |
| Fieldbus interface, number of poles/wires | 8 |
| Fieldbus interface, max. address volume for outputs | 512 byte |
| Fieldbus interface, max. address volume for inputs | 512 byte |
| Max. number of modules | 10 |
| Power supply, conductor diameter | 0.2 mm² ... 1.5 mm² |
| Width dimension | 18.9 mm |
| Type code | CPX-E |
| CPU data | 512 MB RAMDual core 766 MHz |
| Configuration support | Operator unit CDSBGSDML fileCODESYS V3 |
| Additional functions | CODESYS V3 with SoftMotion |
| Control elements | Optional: CDSB operating unitDIL switch for RUN/STOP |
| Processing time | Approx. 200 µs/1 k instruction |
| IP address setting | Via CODESYSDHCPOptional: via CDSB operating unit |
| Function blocks | and othersRead CPX-E module diagnosticsCPX-E diagnostic statusCopying of CPX-E diagnostic trace |
| Max. power supply | 0.333333333333333 |
| Flag | 120 kB remanent dataCODESYS variable concept |
| Power failure buffering | 20 ms |
| Programming software | CODESYS provided by Festo |
| Program memory | 12 MB user program |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Storage temperature | -20 °C ... 70 °C |
| Relative air humidity | Non-condensing95 % |
| Protection against direct and indirect contact | PELV |
| Degree of protection | IP20 |
| Ambient temperature | -5 °C ... 50 °C |
| Certification | c UL us - Listed (OL)RCM compliance mark |
| Product weight | 288 g |
| Max. address capacity outputs | 64 byte |
| Max. address capacity inputs | 64 byte |
| Fieldbus interface, galvanic isolation | yes |
| Fieldbus interface, transmission rate | 100 Mbit/s |
| Fieldbus interface, type | Ethernet |
| Type of mounting | With H-rail |
| Note on materials | RoHS-compliantContains paint-wetting impairment substances |
| Housing material | PA |
