Controller

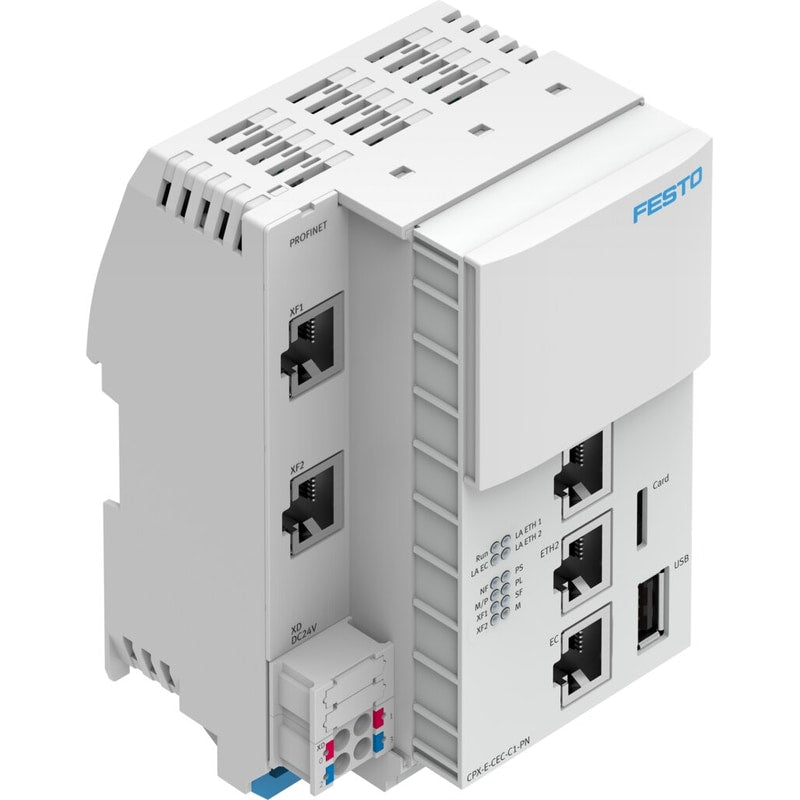

CPX-E-CEC-C1-PN
4252741
GTIN 4052568291549
Vendor Festo
Regular price
$2,063.33
Unit price
CPX-E-CEC-C1-PN is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CPX-E-CEC-C1-PN
Regular price
$2,063.33
Unit price
CPX-E-CEC-C1-PN is backordered and will ship as soon as it is back in stock.
| Dimensions W x L x H | 75.9 mm x 124.3 mm x 82.5 mm |
|---|---|
| Power supply, type of connection | Terminal strip |
| Vibration resistance | Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6 |
| Ethernet interface, protocol | EasyIPTCP/IPModbus® TCP |
| Fieldbus interface, connection type | 2x socket |
| Storage medium | USB memory stick <= 32 GBMicro SD <= 32 GB |
| Fieldbus interface 2, protocol | EtherCAT Master |
| Note on ambient temperature | -5 - 60 °C for vertical installation |
| Fieldbus interface 2, connection type | Socket |
| Intrinsic current consumption at nominal operating voltage for electronics/sensors | Typically 150 mA |
| Ethernet interface, connection technology | RJ45 |
| Fieldbus interface 2, connection technology | RJ45 |
| Fieldbus interface 2, connection pattern | 995789 |
| Fieldbus interface, connection pattern | 995789 |
| Power supply, connection pattern | 995847 |
| Fieldbus interface, function | Bus connection, incoming/forwarding |
| Ethernet interface, transmission rate | 10 Mbit/s100 Mbit/s |
| Power supply, function | Electronics and sensors |
| USB interface | USB 2.0 |
| Fieldbus interface 2, transmission rate | 100 Mbit/s |
| Fieldbus interface 2, galvanic isolation | yes |
| Power supply, information on conductor diameter | 0.2 - 2.5 mm² for flexible conductors without cable end sleeves |
| Ethernet interface, function | SwitchDiagnostics |
| System parameter | System startDiagnostic memoryFail-safe response |
| Fieldbus interface 2, function | Bus connection, forwarding |
| Ethernet interface, connection pattern | 995789 |
| Fieldbus interface, connection technology | RJ45 |
| Power supply, connection technology | Spring-loaded terminal |
| Fieldbus interface, protocol | PROFINET IO |
| Fieldbus interface 2, type | Ethernet |
| Shock resistance | Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27 |
| Module parameters | Undervoltage diagnosticsAnalog module process value representationChannel alarm bundlingChannel alarms for undervoltage |
| Ethernet interface, connection type | 2x socket |
| Diagnostics via LED | Network errorEtherCAT network statusMaintenance requiredRunLoad power supplyNetwork status, port 2System faultPower supply for electronics/sensorsEngineering port 2 network statusForce modeNetwork status, port 1Network status, engineering port 1 |
| Fieldbus interface 2, number of poles/wires | 8 |
| Ethernet interface, number of poles/wires | 8 |
| Nominal operating voltage DC for electronics/sensors | 24 V |
| Power supply, number of pins/wires | 4 |
| Fieldbus interface, number of poles/wires | 8 |
| Fieldbus interface, max. address volume for outputs | 512 byte |
| Fieldbus interface, max. address volume for inputs | 512 byte |
| Max. number of modules | 10 |
| Power supply, conductor diameter | 0.2 mm² ... 1.5 mm² |
| Width dimension | 18.9 mm |
| Type code | CPX-E |
| CPU data | Dual core 766 MHz512 MB RAM |
| Configuration support | GSDML fileCODESYS V3Operator unit CDSB |
| Additional functions | CODESYS V3 |
| Control elements | DIL switch for RUN/STOPOptional: CDSB operating unit |
| Processing time | Approx. 200 µs/1 k instruction |
| IP address setting | Via CODESYSOptional: via CDSB operating unitDHCP |
| Function blocks | and othersRead CPX-E module diagnosticsCopying of CPX-E diagnostic traceCPX-E diagnostic status |
| Max. power supply | 0.333333333333333 |
| Flag | 120 kB remanent dataCODESYS variable concept |
| Power failure buffering | 20 ms |
| Programming software | CODESYS provided by Festo |
| Program memory | 12 MB user program |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Storage temperature | -20 °C ... 70 °C |
| Relative air humidity | Non-condensing95 % |
| Protection against direct and indirect contact | PELV |
| Degree of protection | IP20 |
| Ambient temperature | -5 °C ... 50 °C |
| Certification | c UL us - Listed (OL)RCM compliance mark |
| Product weight | 288 g |
| Max. address capacity outputs | 64 byte |
| Max. address capacity inputs | 64 byte |
| Fieldbus interface, galvanic isolation | yes |
| Fieldbus interface, transmission rate | 100 Mbit/s |
| Fieldbus interface, type | Ethernet |
| Type of mounting | With H-rail |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Housing material | PA |
