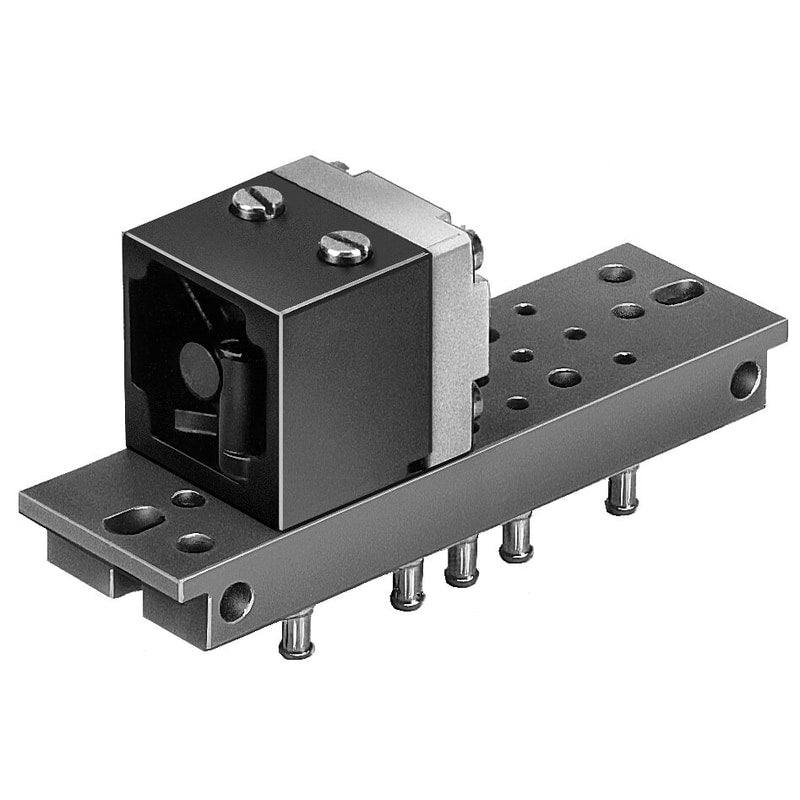

Pneumatic valve
VL/O-3-PK-3
4233
GTIN 4052568008499
Vendor Festo
- Valve function
- 3/2, open, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 100 l/min
- Pneumatic connection 1
- PK-3
- Operating pressure
- 0 bar - 8 bar
Regular price
$222.22
Unit price
VL/O-3-PK-3 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VL/O-3-PK-3
Regular price
$222.22
Unit price
VL/O-3-PK-3 is backordered and will ship as soon as it is back in stock.
pneumatic valve VL/O-3-PK-3 Depending on the choice of connection, normally-open or normally-closed function. Valve function=3/2 open, monostable, Standard nominal flow rate=100 l/min, Operating pressure=0 - 8 bar, Design structure=Poppet seat, Nominal size=2,5 mm
| Valve function | 3/2 open, monostable |
|---|---|
| Standard nominal flow rate | 100 l/min |
| Operating pressure | 0 ... 8 bar |
| Design structure | Poppet seat |
| Nominal size | 2.5 mm |
| Switching time off | 50 ms |
| Switching time on | 12 ms |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Pilot medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Ambient temperature | '-10 ... 60 °C |
| Product weight | 110 g |
| Mounting type | OptionalOn sub-baseOn mounting framewith through hole |
