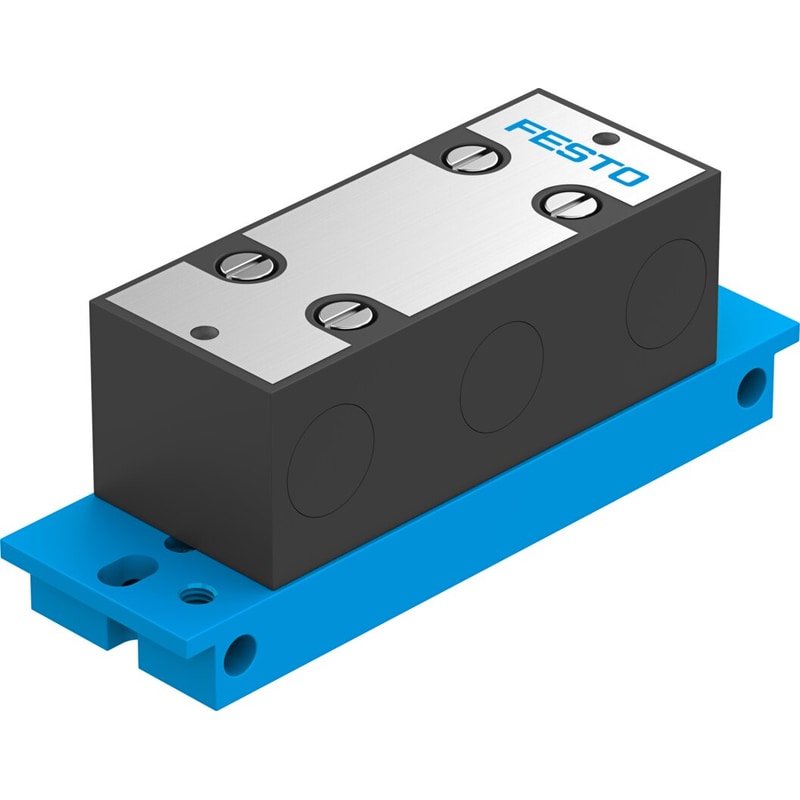

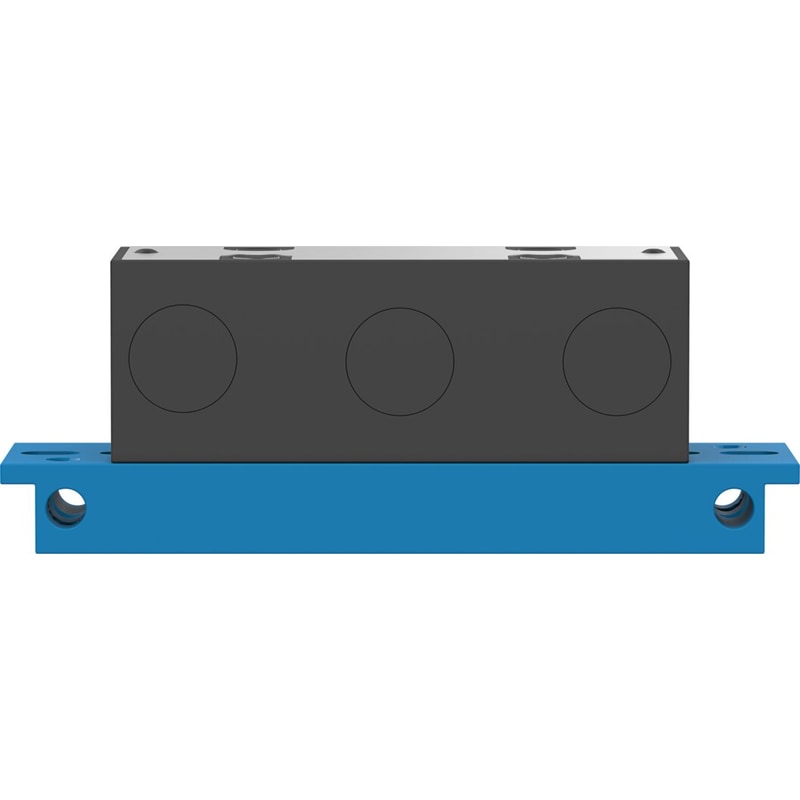

AND block
ZK-PK-3-6/3
4204
GTIN 4052568000561
Vendor Festo
- Valve function
- AND function
- Pneumatic connection 1
- PK-3
- Normal nominal flow rate (normalized to DIN 1343)
- 100 l/min
- Operating pressure
- 1.6 bar - 8 bar
Regular price
$291.52
Unit price
ZK-PK-3-6/3 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
ZK-PK-3-6/3
Regular price
$291.52
Unit price
ZK-PK-3-6/3 is backordered and will ship as soon as it is back in stock.

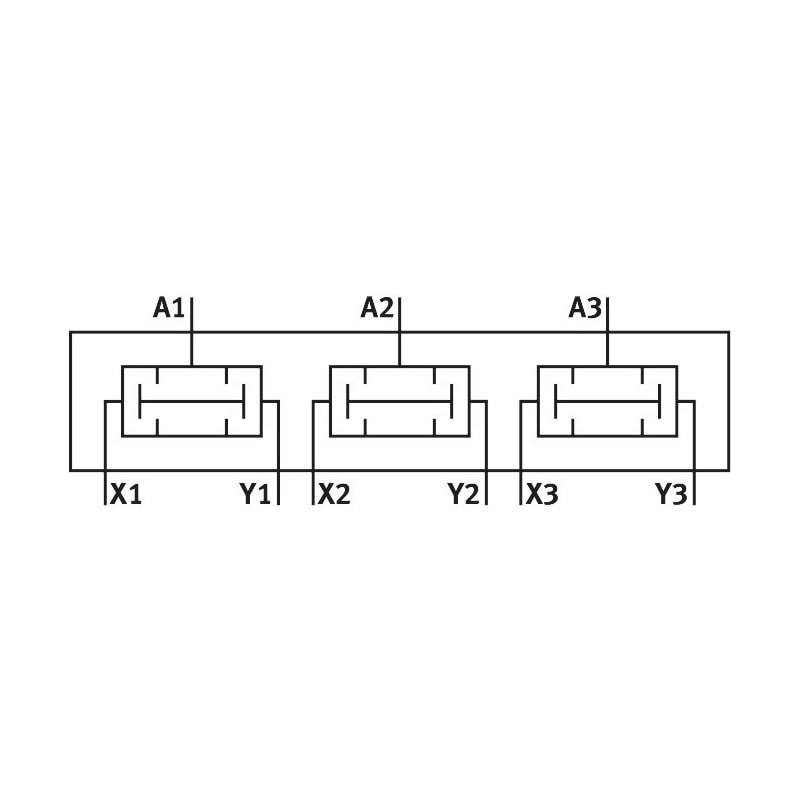

AND block ZK-PK-3-6/3 Valve function=AND function, Pneumatic connection, port 1=PK-3, Pneumatic connection, port 2=PK-3, Mounting type=Front panel installation, Standard nominal flow rate=100 l/min
| Valve function | AND function |
|---|---|
| Pneumatic connection, port 1 | PK-3 |
| Pneumatic connection, port 2 | PK-3 |
| Mounting type | Front panel installation |
| Standard nominal flow rate | 100 l/min |
| Operating pressure | 1.6 ... 8 bar |
| Ambient temperature | '-10 ... 60 °C |
| Material housing | POM |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Nominal size | 2.5 mm |
| Assembly position | Any |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Medium temperature | '-10 ... 60 °C |
