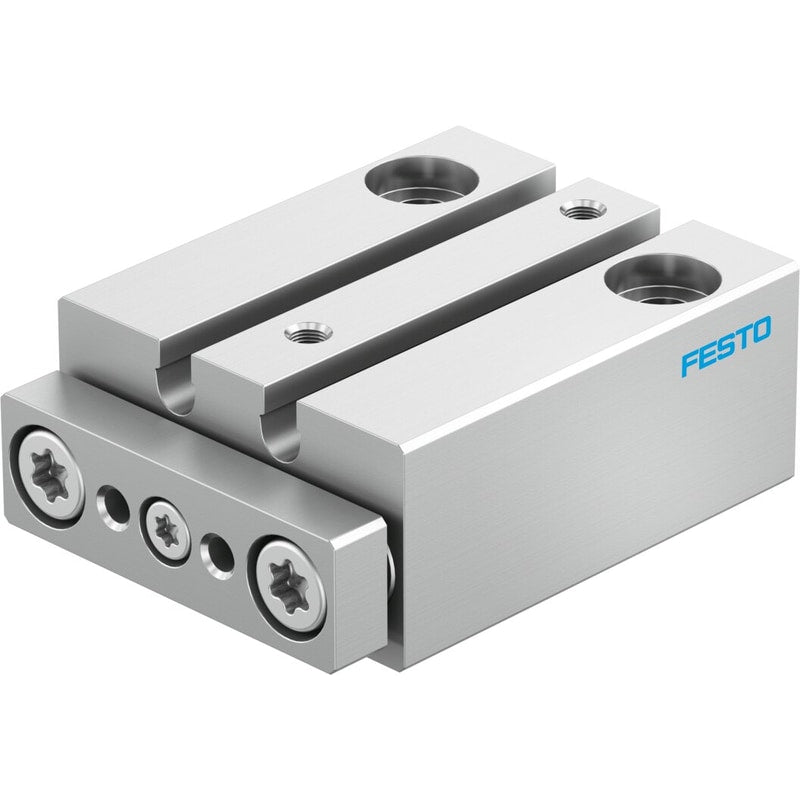

Guided drive
DFM-10-20-P-A-GF
4154799
GTIN 4052568418076
Vendor Festo
- Piston diameter
- 10 mm
- Theoretical force at 6 bar, advancing
- 47 N
- Stroke
- 20 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Position sensing
- For proximity sensor
Regular price
$126.07
Unit price
DFM-10-20-P-A-GF is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DFM-10-20-P-A-GF
Regular price
$126.07
Unit price
DFM-10-20-P-A-GF is backordered and will ship as soon as it is back in stock.
| Distance of centre of gravity of payload to yoke plate xs | 10 mm |
|---|---|
| Max. permissible torque load Mx as a function of the stroke | 0.034 Nm |
| Stroke | 20 mm |
| Piston diameter | 10 mm |
| Type code | DFM |
| Drive unit operating mode | Yoke |
| Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any |
| Guide | Sliding guide |
| Design | Guide |
| Position sensing | For proximity sensor |
| Symbol | 991737 |
| Operating pressure | 1.5 bar ... 8 bar |
| Max. speed | 1.7 m/s |
| Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Ambient temperature | -10 °C ... 60 °C |
| Impact energy in the end positions | 0.035 J |
| Max. payload as a function of the stroke at defined distance xs | 2 N |
| Theoretical force at 6 bar, retracting | 47 N |
| Theoretical force at 6 bar, advancing | 68 N |
| Moving mass | 21 g |
| Product weight | 60.5 g |
| Pneumatic connection | M3 |
| Note on materials | RoHS-compliant |
| Cover material | High-alloy stainless steel |
| Seals material | NBR |
| Material of dynamic seals | HNBR |
| End plate material | Wrought aluminum alloy, anodized |
| Guide rod material | High-alloy stainless steel |
| Housing material | Wrought aluminum alloy, anodized |
| Piston rod material | High-alloy stainless steel |
