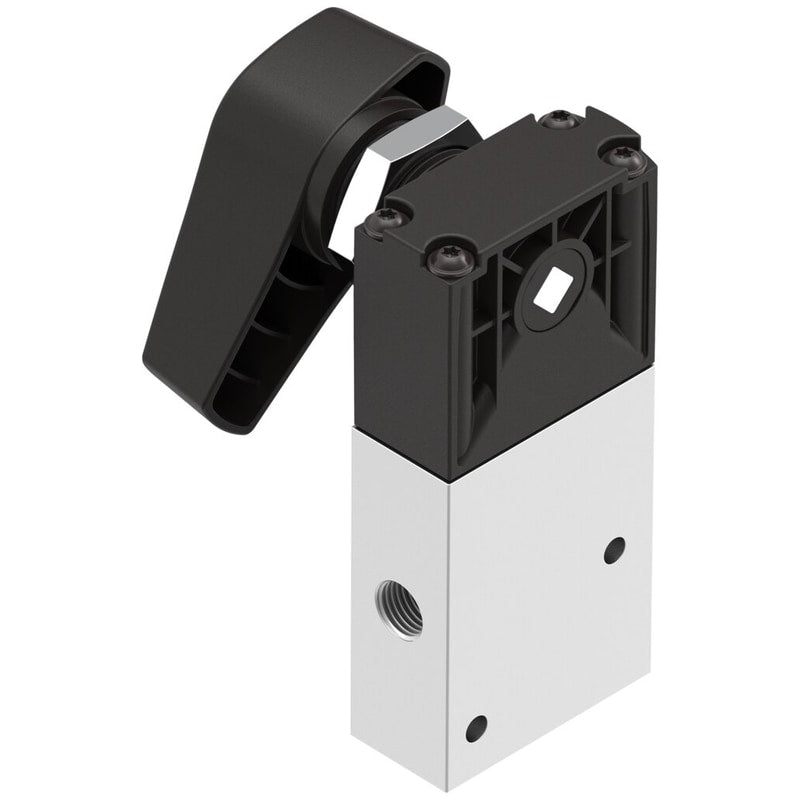

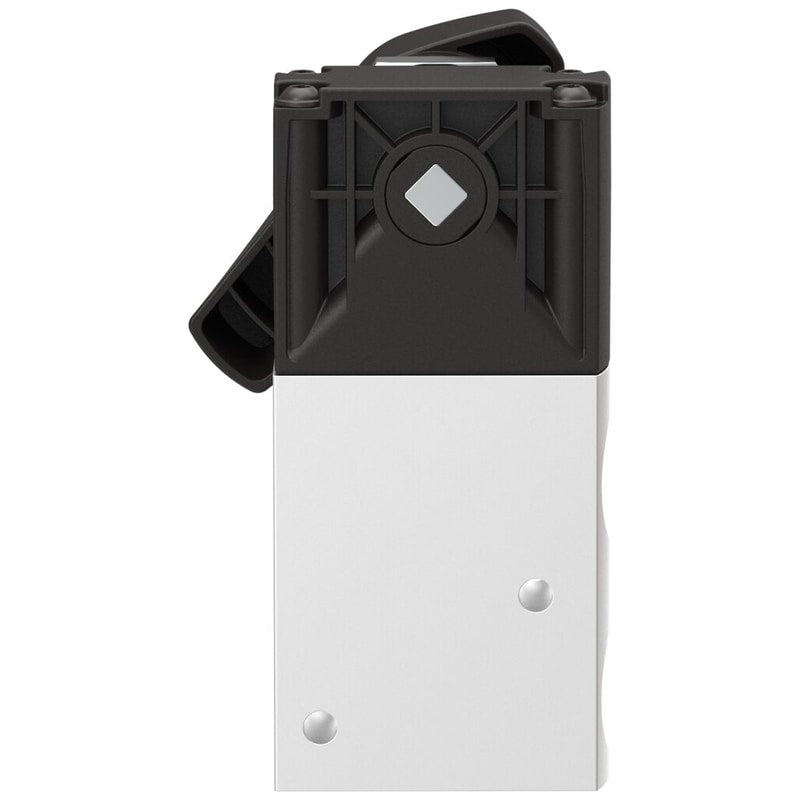

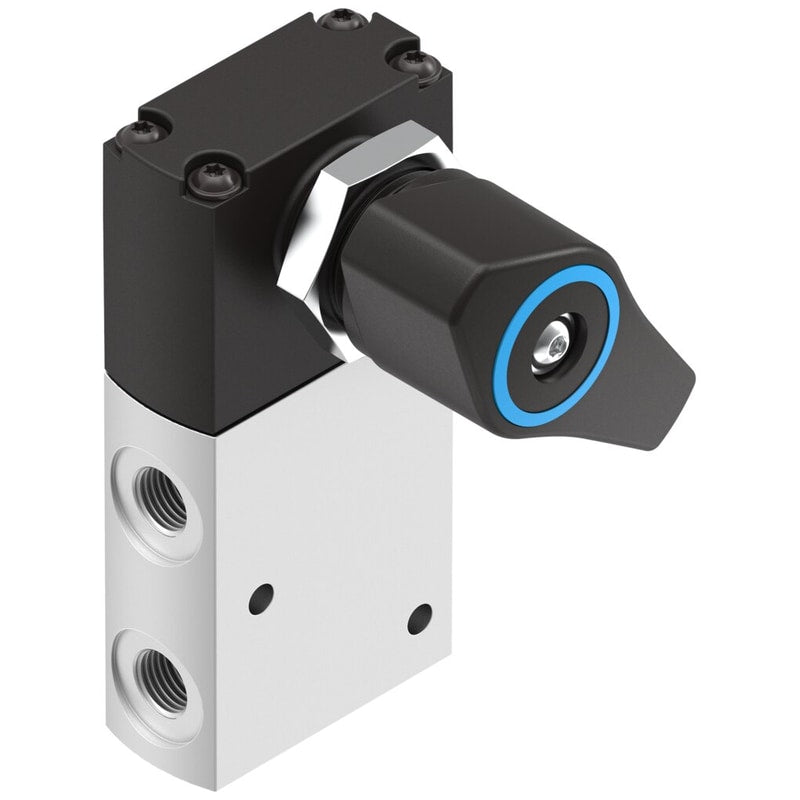

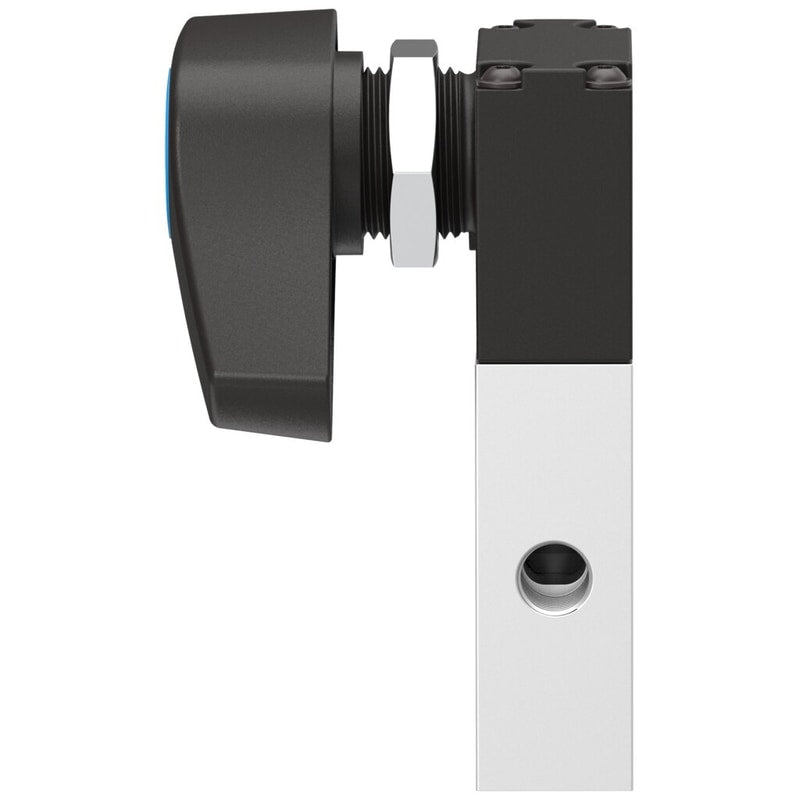

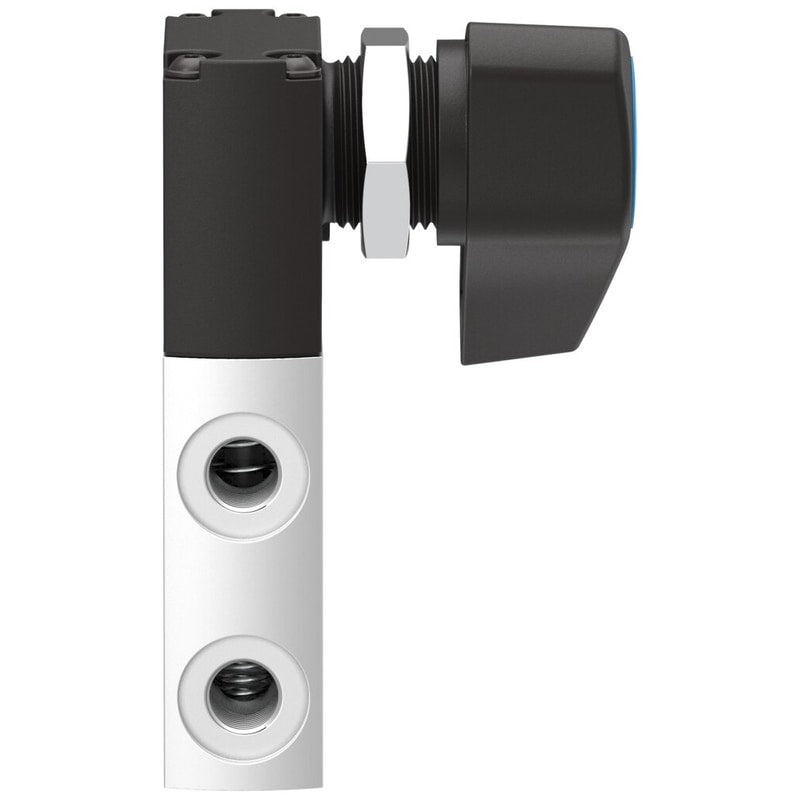

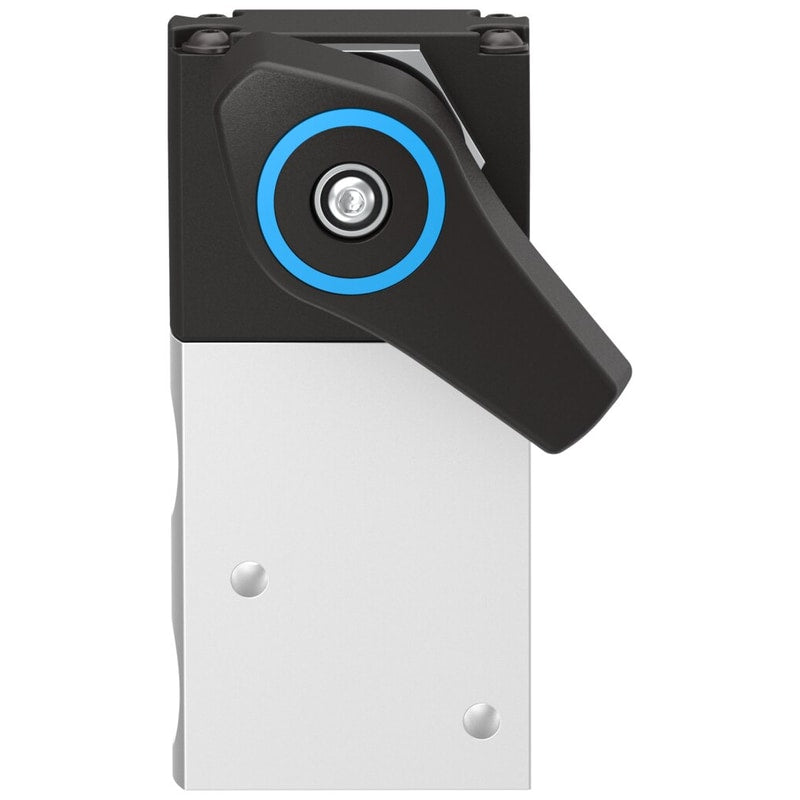

Selector valve
VHEF-EST-M32-M-G18
4106806
GTIN 4052568291211
Vendor Festo
- Valve function
- 3/2, open/closed, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 750 l/min
- Pneumatic connection 1
- G1/8
- Operating pressure
- -0.95 bar - 10 bar
- Width
- 20 mm
Regular price
$107.16
Unit price
VHEF-EST-M32-M-G18 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VHEF-EST-M32-M-G18
Regular price
$107.16
Unit price
VHEF-EST-M32-M-G18 is backordered and will ship as soon as it is back in stock.
| Valve function | 3/2, open/closed, monostable |
|---|---|
| Lap | Zero overlap |
| Cover material | PA-reinforced |
| Max. force on actuator | 200 N |
| Max. transverse load on actuator | 200 N |
| Actuation type | Manual |
| Width | 20 mm |
| Standard nominal flow rate | 750 l/min |
| Pneumatic working port | G1/8 |
| Operating pressure | -0.95 bar ... 10 bar |
| Design | Plate seat |
| Reset method | Mechanical spring |
| Nominal width | 5.6 mm |
| Type code | VHEF |
| Exhaust air function | With flow control option |
| Application note | Operate by hand only |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of control | Direct |
| Flow direction | Reversible |
| Symbol | 995893 |
| Max. switching frequency | 0.5 Hz |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Temperature of medium | -10 °C ... 60 °C |
| Ambient temperature | -10 °C ... 60 °C |
| Actuating torque | 0.4 Nm |
| Product weight | 206 g |
| Type of mounting | Front panel mountingWith through-holeOptionally: |
| Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | G1/8 |
| Pneumatic connection 3 | G1/8 |
| Note on materials | RoHS-compliant |
| Seals material | NBR |
| Housing material | Wrought aluminum alloyAnodized |
| Lever material | PA-reinforced |
