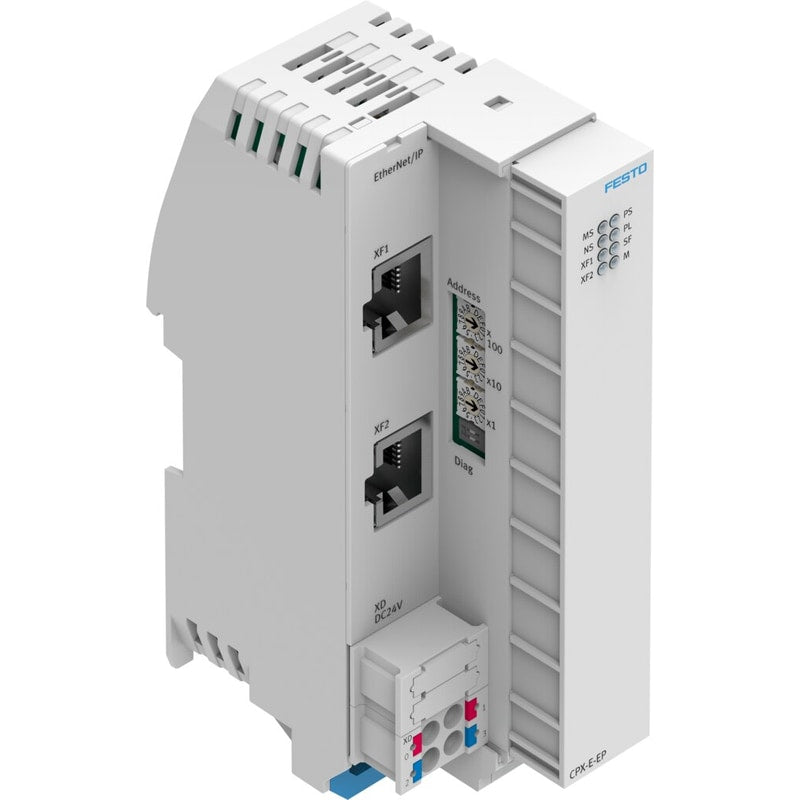

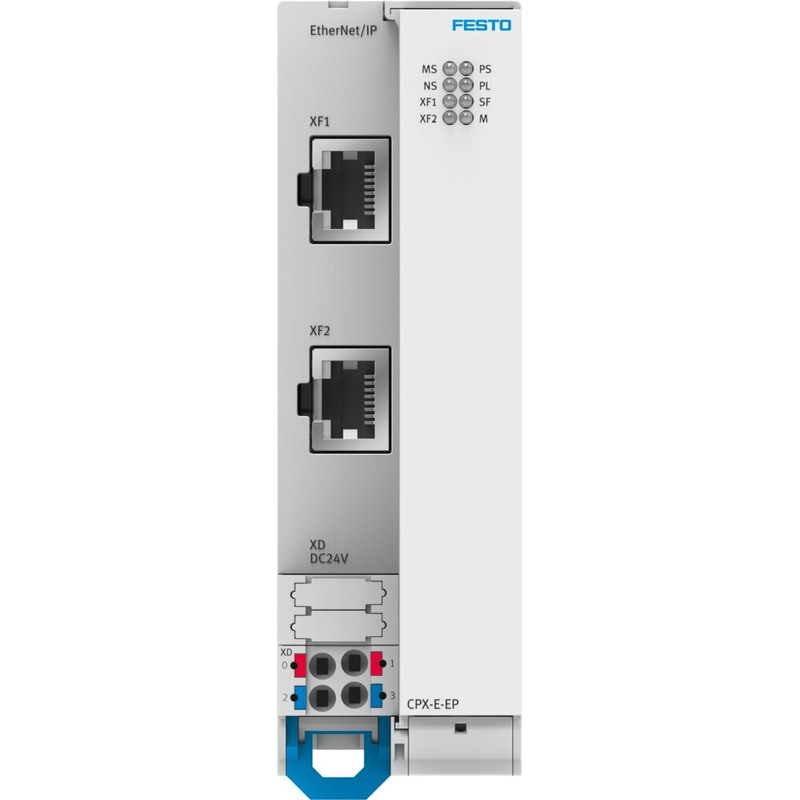

Bus module
CPX-E-EP
4080499
GTIN 4052568291198
Vendor Festo
Regular price
$765.02
Unit price
CPX-E-EP is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CPX-E-EP
Regular price
$765.02
Unit price
CPX-E-EP is backordered and will ship as soon as it is back in stock.
| Dimensions W x L x H | 42.2 mm x 125.8 mm x 76.5 mm |
|---|---|
| Power supply, type of connection | Terminal strip |
| Vibration resistance | Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6 |
| Fieldbus interface, connection type | 2x socket |
| Note on ambient temperature | -5 - 60 °C for vertical installation |
| Intrinsic current consumption at nominal operating voltage for electronics/sensors | Typically 65 mA |
| Diagnostics via bus | Lower limit value not complied withParameterization errorUndervoltageOver temperatureShort circuitUpper limit value violatedWire break |
| Fieldbus interface, connection pattern | 995789 |
| Power supply, connection pattern | 995847 |
| Fieldbus interface, function | Bus connection, incoming/forwarding |
| Power supply, function | Electronics and sensors |
| Power supply, information on conductor diameter | 0.2 - 2.5 mm² for flexible conductors without cable end sleeves |
| Permissible voltage fluctuations for electronics/sensors | ± 25 % |
| System parameter | Diagnostic memoryFail-safe responseSystem startForce modeIdle response |
| Fieldbus interface, connection technology | RJ45 |
| Power supply, connection technology | Spring-loaded terminal |
| Fieldbus interface, protocol | Modbus®/TCPEtherNet/IP |
| Shock resistance | Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27 |
| Module parameters | Channel alarm bundlingChannel alarms for undervoltageUndervoltage diagnostics |
| Diagnostics via LED | Network statusPower supply for electronics/sensorsLoad power supplyConnection statusSystem faultModifyModule status |
| Nominal operating voltage DC for electronics/sensors | 24 V |
| Power supply, number of pins/wires | 4 |
| Fieldbus interface, number of poles/wires | 8 |
| Fieldbus interface, max. address volume for inputs | 64 byte |
| Max. number of modules | 10 |
| Power supply, conductor diameter | 0.2 mm² ... 1.5 mm² |
| Width dimension | 18.9 mm |
| Type code | CPX-E |
| Configuration support | EDS file |
| Max. power supply | 0.333333333333333 |
| Power failure buffering | 20 ms |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Storage temperature | -20 °C ... 70 °C |
| Relative air humidity | Non-condensing95 % |
| Protection against direct and indirect contact | PELV |
| Degree of protection | IP20 |
| Ambient temperature | -5 °C ... 50 °C |
| Certification | RCM compliance mark |
| Product weight | 145 g |
| Max. address capacity outputs | 64 byte |
| Note on outputs | 62 bytes with I/O diagnostic interface64 bytes with status bits64 bytes without diagnostics |
| Max. address capacity inputs | 64 byte |
| Information on inputs | 64 bytes without diagnostics63 bytes with status bits62 bytes with I/O diagnostic interface |
| Fieldbus interface, galvanic isolation | yes |
| Fieldbus interface, transmission rate | 100 Mbit/s |
| Fieldbus interface, type | Ethernet |
| Type of mounting | With H-rail |
| Note on materials | RoHS-compliantContains paint-wetting impairment substances |
| Housing material | PA |
