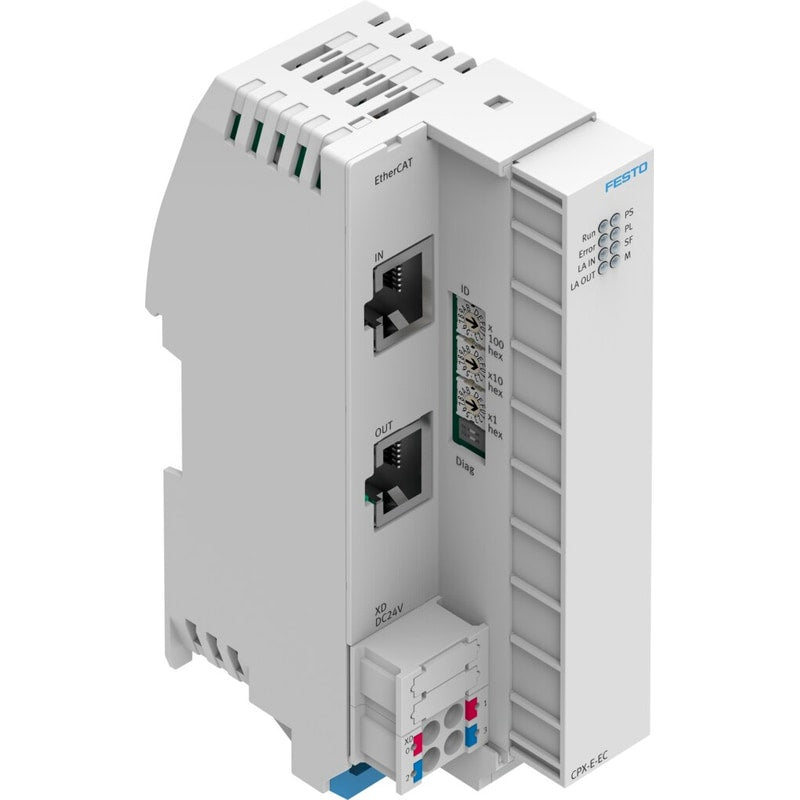

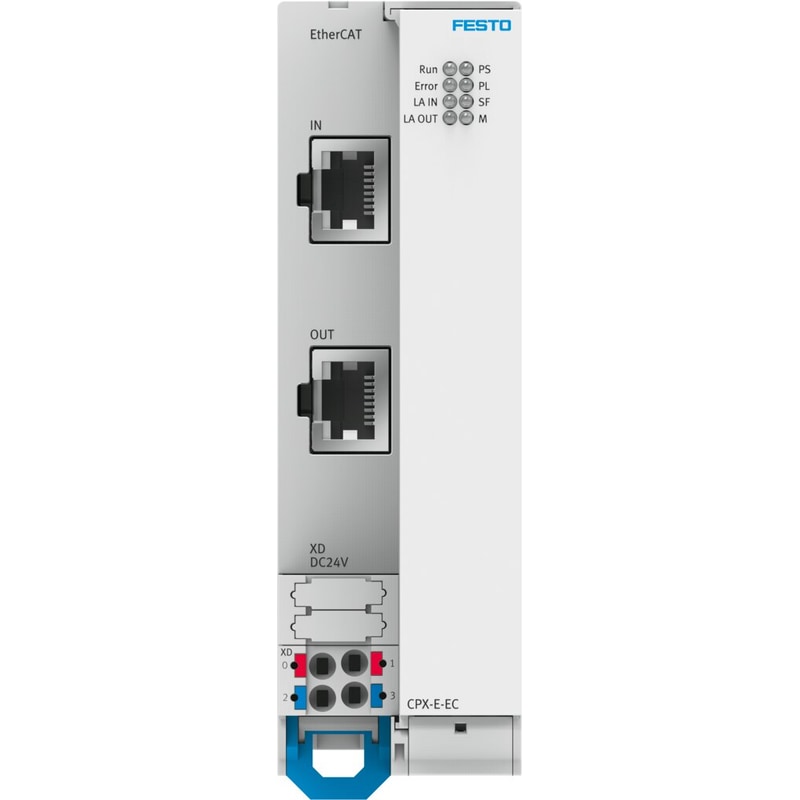

Bus module
CPX-E-EC
4080498
GTIN 4052568291181
Vendor Festo
Regular price
$765.02
Unit price
CPX-E-EC is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CPX-E-EC
Regular price
$765.02
Unit price
CPX-E-EC is backordered and will ship as soon as it is back in stock.
| Dimensions W x L x H | 42.2 mm x 125.8 mm x 76.5 mm |
|---|---|
| Power supply, type of connection | Terminal strip |
| Vibration resistance | Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6 |
| Fieldbus interface, connection type | 2x socket |
| Note on ambient temperature | -5 - 60 °C for vertical installation |
| Intrinsic current consumption at nominal operating voltage for electronics/sensors | Typically 64 mA |
| Diagnostics via bus | Lower limit value not complied withShort circuitOver temperatureUpper limit value violatedWire breakUndervoltageParameterization error |
| Fieldbus interface, connection pattern | 995789 |
| Power supply, connection pattern | 995847 |
| Fieldbus interface, function | Bus connection, incoming/forwarding |
| Power supply, function | Electronics and sensors |
| Power supply, information on conductor diameter | 0.2 - 2.5 mm² for flexible conductors without cable end sleeves |
| Permissible voltage fluctuations for electronics/sensors | ± 25 % |
| System parameter | Diagnostic memoryForce modeFail-safe responseSystem start |
| Fieldbus interface, connection technology | RJ45 |
| Power supply, connection technology | Spring-loaded terminal |
| Fieldbus interface, protocol | EtherCAT |
| Shock resistance | Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27 |
| Module parameters | Undervoltage diagnosticsChannel alarms for undervoltageChannel alarm bundling |
| Diagnostics via LED | Power supply for electronics/sensorsModifyEtherCAT RUNSystem faultLoad power supplyEtherCAT errorConnection status |
| Nominal operating voltage DC for electronics/sensors | 24 V |
| Power supply, number of pins/wires | 4 |
| Fieldbus interface, number of poles/wires | 8 |
| Fieldbus interface, max. address volume for inputs | 64 byte |
| Max. number of modules | 10 |
| Power supply, conductor diameter | 0.2 mm² ... 1.5 mm² |
| Width dimension | 18.9 mm |
| Type code | CPX-E |
| Configuration support | ESI file |
| Max. power supply | 0.333333333333333 |
| Power failure buffering | 20 ms |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Storage temperature | -20 °C ... 70 °C |
| Relative air humidity | Non-condensing95 % |
| Protection against direct and indirect contact | PELV |
| Degree of protection | IP20 |
| Ambient temperature | -5 °C ... 50 °C |
| Certification | RCM compliance mark |
| Product weight | 145 g |
| Max. address capacity outputs | 64 byte |
| Note on outputs | 62 bytes with I/O diagnostic interface64 bytes without diagnostics64 bytes with status bits |
| Max. address capacity inputs | 64 byte |
| Information on inputs | 64 bytes without diagnostics62 bytes with I/O diagnostic interface63 bytes with status bits |
| Fieldbus interface, galvanic isolation | yes |
| Fieldbus interface, transmission rate | 100 Mbit/s |
| Fieldbus interface, type | EtherCAT |
| Type of mounting | With H-rail |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Housing material | PA |
