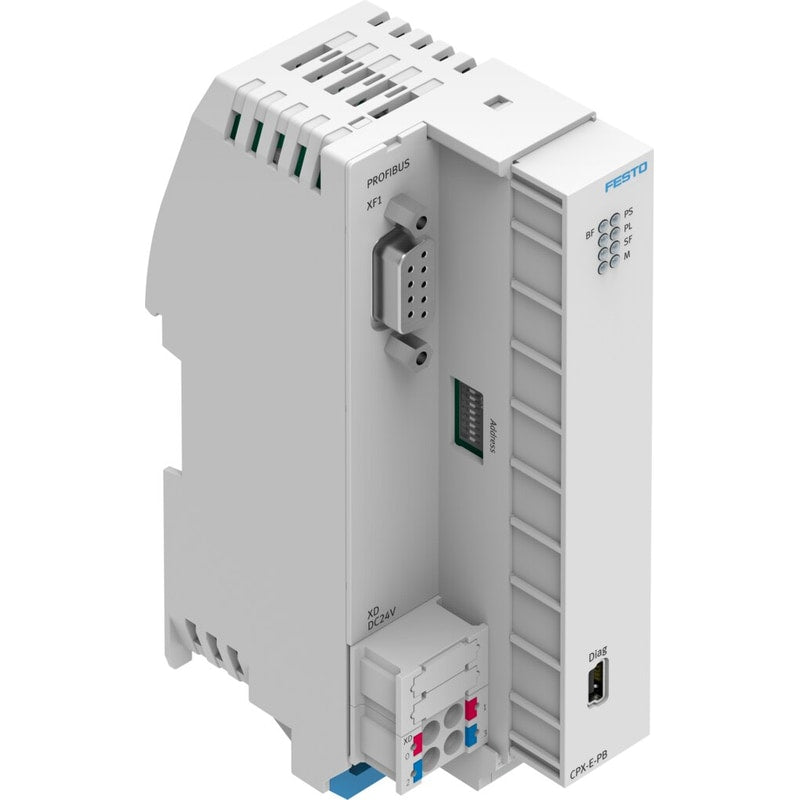

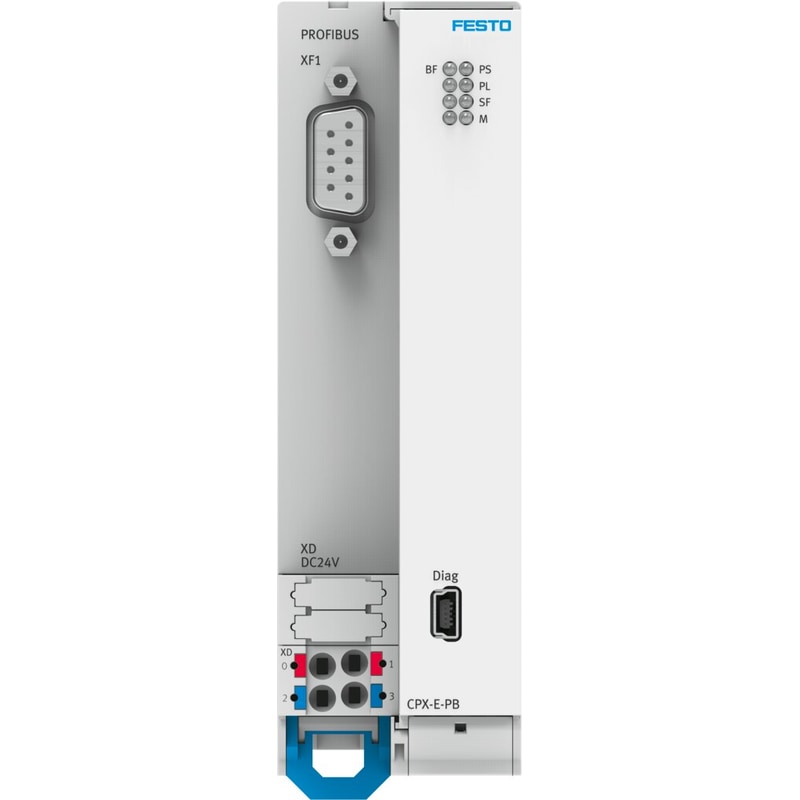

Bus module
CPX-E-PB
4080496
GTIN 4052568291167
Vendor Festo
Regular price
$612.01
Unit price
CPX-E-PB is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CPX-E-PB
Regular price
$612.01
Unit price
CPX-E-PB is backordered and will ship as soon as it is back in stock.
| Dimensions W x L x H | 42.2 mm x 125.8 mm x 76.5 mm |
|---|---|
| Power supply, type of connection | Terminal strip |
| Vibration resistance | Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6 |
| Fieldbus interface, connection type | Socket |
| Note on fieldbus interface | Optional connection technology with accessories:Plug/socket M12x1 B-coded, 5-pin, degree of protection: IP65 |
| Note on ambient temperature | -5 - 60 °C for vertical installation |
| Intrinsic current consumption at nominal operating voltage for electronics/sensors | Typically 75 mA |
| Service interface, connection technology | USB 2.0 type B, mini |
| Diagnostics via bus | Parameterization errorWire breakUndervoltageLower limit value not complied withUpper limit value violatedRequested function not supportedBuffer overflowNot ready for data exchangeTransmission errorWatchdog/I/O statusShort circuit |
| Fieldbus interface, connection pattern | 995638 |
| Power supply, connection pattern | 995847 |
| Fieldbus interface, function | Bus connection, incoming/forwarding |
| Power supply, function | Electronics and sensors |
| Service interface, connection pattern | 995868 |
| Power supply, information on conductor diameter | 0.2 - 2.5 mm² for flexible conductors without cable end sleeves |
| Permissible voltage fluctuations for electronics/sensors | ± 25 % |
| Service interface, connection type | Socket |
| System parameter | Force modeSystem startFail-safe responseDiagnostic memory |
| Fieldbus interface, connection technology | Sub-D |
| Power supply, connection technology | Spring-loaded terminal |
| Fieldbus interface, protocol | PROFIBUS DP |
| Service interface, function | Diagnostics and parameterization |
| Shock resistance | Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27 |
| Diagnostics via LED | Force modeSystem faultBus errorPower supply for electronics/sensorsLoad power supply |
| Nominal operating voltage DC for electronics/sensors | 24 V |
| Service interface, number of poles/wires | 5 |
| Power supply, number of pins/wires | 4 |
| Fieldbus interface, number of poles/wires | 9 |
| Fieldbus interface, max. address volume for outputs | 64 byte |
| Fieldbus interface, max. address volume for inputs | 64 byte |
| Max. number of modules | 10 |
| Power supply, conductor diameter | 0.2 mm² ... 1.5 mm² |
| Width dimension | 18.9 mm |
| Type code | CPX-E |
| Configuration support | GSD file |
| Control elements | DIL switch |
| Max. power supply | 0.333333333333333 |
| Power failure buffering | 20 ms |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Storage temperature | -20 °C ... 70 °C |
| Relative air humidity | Non-condensing95 % |
| Protection against direct and indirect contact | PELV |
| Degree of protection | IP20 |
| Ambient temperature | -5 °C ... 50 °C |
| Certification | RCM compliance mark |
| Product weight | 145 g |
| Max. address capacity outputs | 64 byte |
| Note on outputs | 64 bytes with status bits62 bytes with I/O diagnostic interface64 bytes without diagnostics |
| Max. address capacity inputs | 64 byte |
| Information on inputs | 63 bytes with status bits62 bytes with I/O diagnostic interface64 bytes without diagnostics |
| Fieldbus interface, galvanic isolation | yes |
| Fieldbus interface, transmission rate | 3 Mbit/s19.2 kbit/s9.6 kbit/s500 kbit/s1.5 Mbit/s187.5 kbit/s12 Mbit/s93.75 kbit/s6 Mbit/s |
| Fieldbus interface, type | PROFIBUS |
| Type of mounting | With H-rail |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Housing material | PA |
