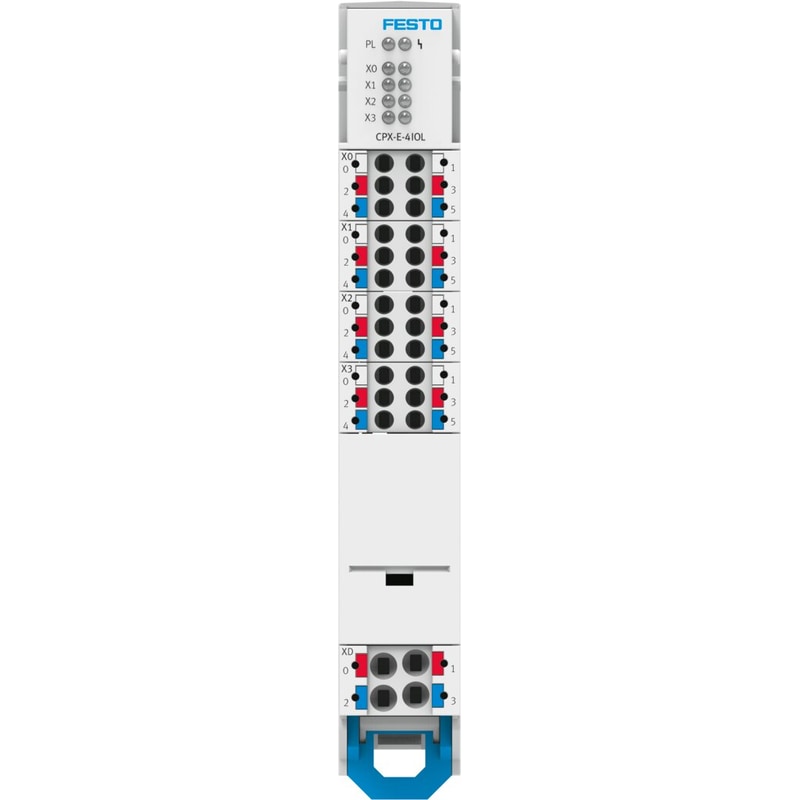

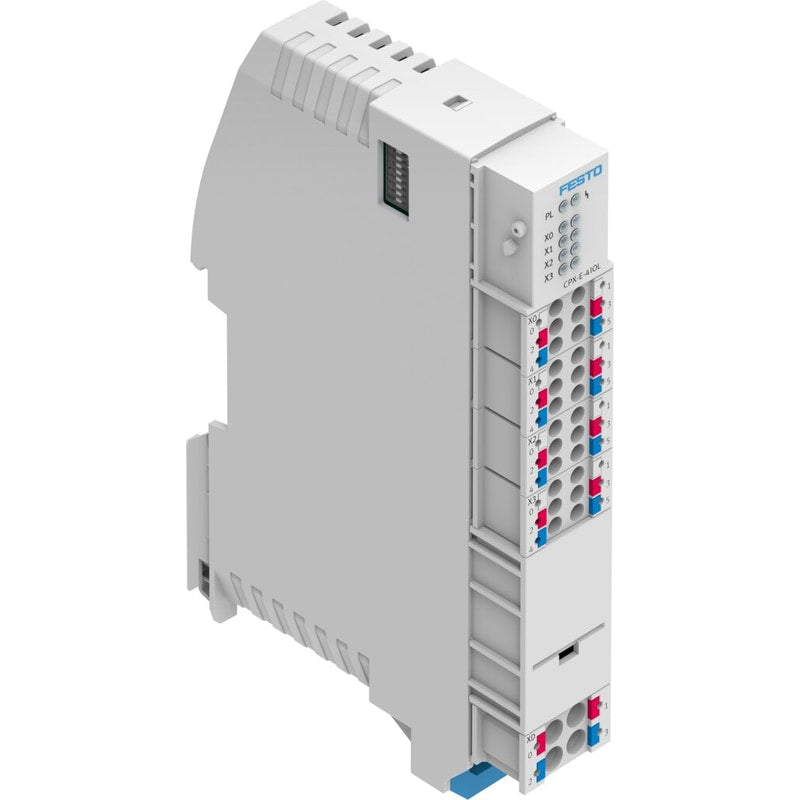

IO-Link master module
CPX-E-4IOL
4080495
GTIN 4052568291150
Vendor Festo
Regular price
$437.15
Unit price
CPX-E-4IOL is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CPX-E-4IOL
Regular price
$437.15
Unit price
CPX-E-4IOL is backordered and will ship as soon as it is back in stock.
| Dimensions W x L x H | 18.9 mm x 76.6 mm x 124.3 mm |
|---|---|
| Power supply, type of connection | Terminal strip |
| Vibration resistance | Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6 |
| Permissible voltage fluctuations load | ± 25 % |
| Note on ambient temperature | -5 - 50 °C for horizontal installation |
| Intrinsic current consumption at nominal operating voltage for electronics/sensors | Typically 50 mA |
| Intrinsic current consumption at nominal operating voltage load | Typically 15 mA |
| Diagnostics via bus | Wire breakUnderflow/overflowShort circuitGeneral errorParameter errorModule errorDevice missing/failedUndervoltage |
| Power supply, connection pattern | 995847 |
| Power supply, information on conductor diameter | 0.2 - 2.5 mm² for flexible conductors without cable end sleeves |
| Permissible voltage fluctuations for electronics/sensors | ± 25 % |
| Power supply, connection technology | Spring-loaded terminal |
| Shock resistance | Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27 |
| Module parameters | Actuator supply short circuit diagnosticsResponse to short circuit/overloadDeactivate sensor supply |
| Channel parameters | Forcing channel xCycle timeChannel statusDeactivate actuator supplyChannel modeDevice fault code |
| Diagnostics via LED | Faults per moduleStatus per channel |
| Electrical connection, IO-Link®, connection technology | Spring-loaded terminal |
| Electric IO-Link® connection, connection pattern | 995843 |
| Electrical IO-Link® connection, connection type | 4x terminal strip |
| IO-Link®, communication | C/Q LED green |
| IO-Link® electrical connection, information on conductor cross section | 0.2 - 2.5 mm² for flexible conductors without cable end sleeves |
| Nominal operating voltage DC for electronics/sensors | 24 V |
| Power supply, number of pins/wires | 4 |
| Electrical IO-Link® connection, number of pins/wires | 6 |
| Power supply, conductor diameter | 0.2 mm² ... 1.5 mm² |
| IO-Link® electrical connection, conductor cross section | 0.2 mm² ... 1.5 mm² |
| Width dimension | 18.9 mm |
| Type code | CPX-E |
| Fuse protection (short circuit) | Internal electronic fuse, load per channelInternal electronic fuse, sensor per module |
| Electrical isolation between channel and internal bus | no |
| Electrical isolation between channels | no |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Storage temperature | -20 °C ... 70 °C |
| Relative air humidity | 95 %Non-condensing |
| Protection against direct and indirect contact | PELV |
| Degree of protection | IP20 |
| Ambient temperature | -5 °C ... 50 °C |
| Certification | RCM compliance mark |
| Product weight | 96 g |
| Protocol | IO-Link® |
| IO-Link®, protocol version | Master V 1.1 |
| IO-Link®, communication mode | SIO, COM1 (4.8 kBd), COM2 (38.4 kBd), COM3 (230.4 kBd)Configurable via software |
| IO-Link®, port class | B |
| IO-Link®, number of ports | 4 |
| IO-Link®, process data width OUT | 8–32 bytes parameterizable |
| IO-Link®, process data width IN | 8–32 bytes parameterizable |
| IO-Link®, minimum cycle time | Depends on minimally supported cycle time of connected IO-Link® device |
| Type of mounting | With H-rail |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Housing material | PA |
