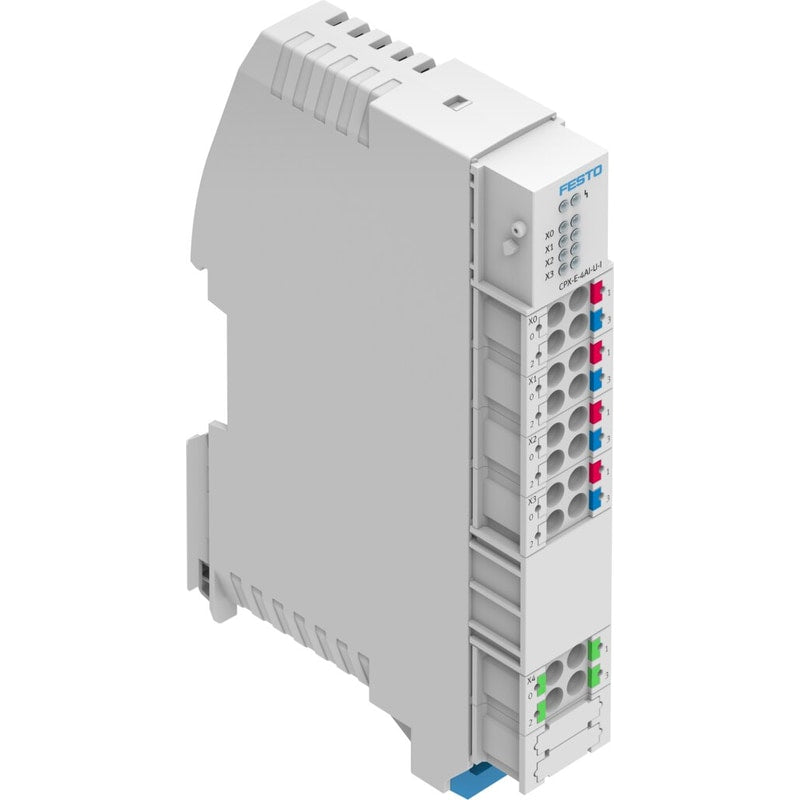

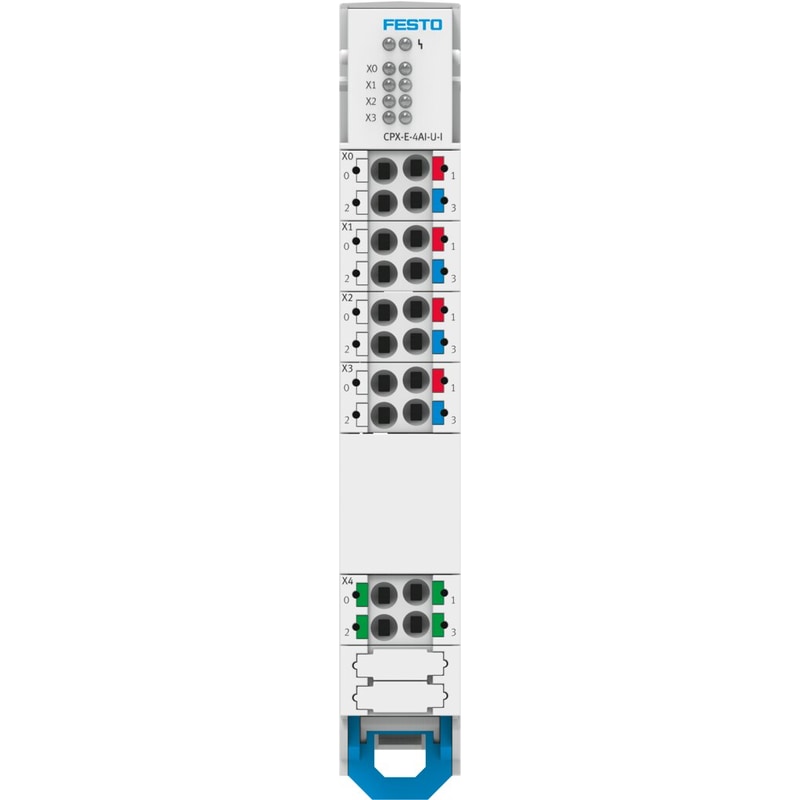

Analogue input module
CPX-E-4AI-U-I
4080493
GTIN 4052568291136
Vendor Festo
Regular price
$546.44
Unit price
CPX-E-4AI-U-I is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CPX-E-4AI-U-I
Regular price
$546.44
Unit price
CPX-E-4AI-U-I is backordered and will ship as soon as it is back in stock.
| Dimensions W x L x H | 18.9 mm x 76.6 mm x 124.3 mm |
|---|---|
| Vibration resistance | Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6 |
| Electrical connection input, function | Analog input |
| Note on ambient temperature | -5 - 60 °C for vertical installation |
| Intrinsic current consumption at nominal operating voltage for electronics/sensors | Typically 70 mA |
| Electrical connection for input, information on conductor cross section | 0.2 - 2.5 mm² for flexible conductors without cable end sleeves |
| Diagnostics via bus | Lower limit value not complied withParameter errorParameterization errorSensor supply short circuit/overloadUnderflow/overflowUpper limit value violatedWire breakOverload at analog inputs |
| Permissible voltage fluctuations for electronics/sensors | ± 25 % |
| Electrical input connection, connection technology | Spring-loaded terminal |
| Shock resistance | Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27 |
| Signal range | -20 - 20 mA0 - 20 mA0 - 10 V-5 - 5 V1 - 5 V-10 - 10 V4 - 20 mA |
| Electrical connection input, connection type | 4x terminal strip |
| Module parameters | Analog input overload diagnosticsResponse to analog input overloadAnalog input data formatSensor supply short circuit diagnosticsLimit monitoring hysteresisResponse to short circuit/overloadDeactivate sensor supplyParameterization error diagnostics |
| Channel parameters | Wire break diagnosticsSignal range per channelUpper limit diagnosticsLower diagnostic limitUnderflow/overflow diagnosticsParameter error diagnosticsSmoothing factorLower/upper limit |
| Diagnostics via LED | Faults per channelFaults per module |
| Electrical connection input 2, function | Functional ground |
| Electrical connection input 2, connection type | Terminal strip |
| Electrical connection for input 2, information on conductor cross section | 0.2 - 2.5 mm² for flexible conductors without cable end sleeves |
| Electrical input 2 connection, connection technology | Spring-loaded terminal |
| Electrical connection for input 2, connection pattern | 995842 |
| Nominal operating voltage DC for electronics/sensors | 24 V |
| Electrical connection, input, number of pins/wires | 4 |
| Electrical connection, input 2, number of pins/wires | 4 |
| Electrical connection for input 2, conductor cross section | 0.2 mm² ... 1.5 mm² |
| Width dimension | 18.9 mm |
| Type code | CPX-E |
| No. of inputs | 4 |
| Measured variable | VoltageCurrent |
| Repetition accuracy | ±0.1 % at 25 °C |
| Fuse protection (short circuit) | Internal electronic fuse per module |
| Operating error limit related to the ambient temperature range | +/- 0.3 % |
| Basic error limit at 25°C | +/- 0.2 % |
| Max. residual current of inputs per module | 1.4 A |
| Power failure buffering | 10 ms |
| Electrical isolation between channel and internal bus | yes |
| Electrical isolation between channels | no |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Storage temperature | -20 °C ... 70 °C |
| Relative air humidity | Non-condensing95 % |
| Degree of protection | IP20 |
| Ambient temperature | -5 °C ... 50 °C |
| Certification | RCM compliance mark |
| Product weight | 96 g |
| Max. address capacity inputs | 8 byte |
| Data format | 15 bit + signLinear scaling |
| Max. cable length | Shielded30 m |
| Type of mounting | With H-rail |
| Note on materials | RoHS-compliantContains paint-wetting impairment substances |
| Housing material | PA |
