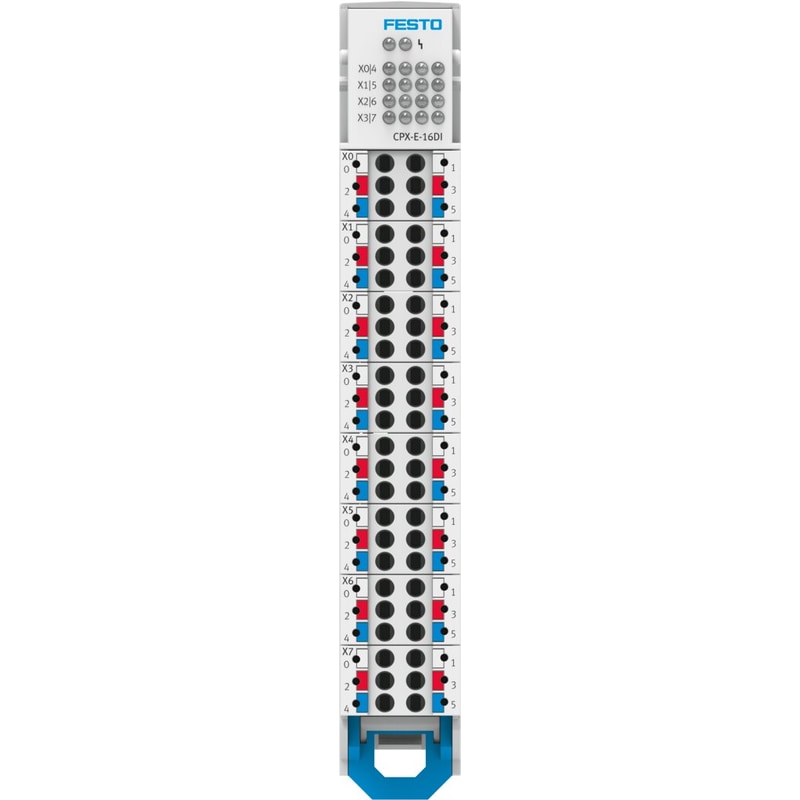

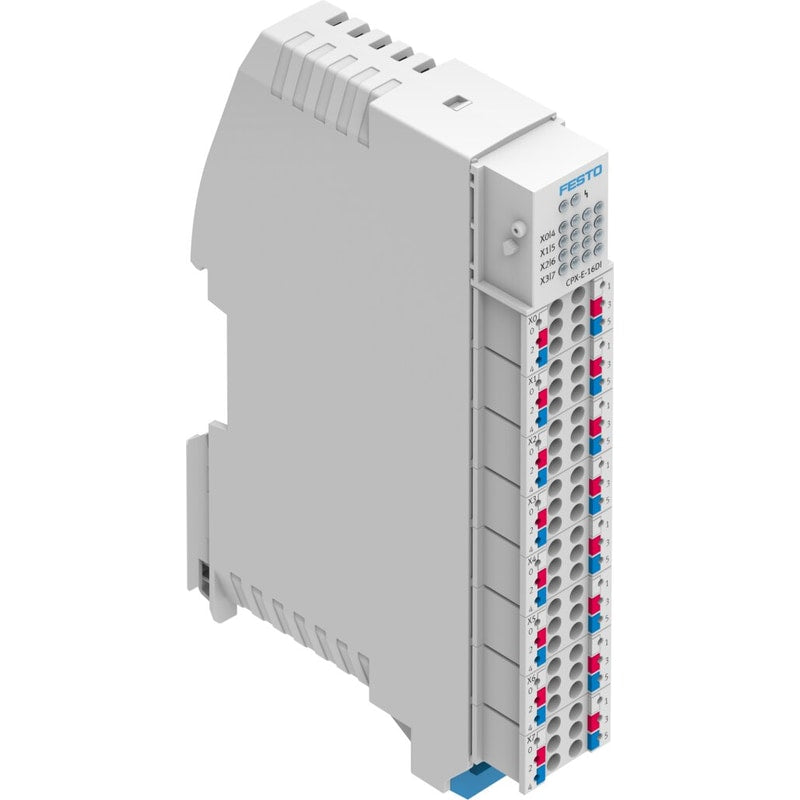

Digital input module
CPX-E-16DI
4080492
GTIN 4052568291129
Vendor Festo
Regular price
$262.30
Unit price
CPX-E-16DI is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CPX-E-16DI
Regular price
$262.30
Unit price
CPX-E-16DI is backordered and will ship as soon as it is back in stock.
| Dimensions W x L x H | 18.9 mm x 76.6 mm x 124.3 mm |
|---|---|
| Vibration resistance | Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6 |
| Electrical connection input, function | Digital input |
| Note on ambient temperature | -5 - 60 °C for vertical installation |
| Intrinsic current consumption at nominal operating voltage for electronics/sensors | Typically 15 mA |
| Electrical connection for input, information on conductor cross section | 0.2 - 2.5 mm² for flexible conductors without cable end sleeves |
| Electrical connection for input, connection pattern | 995843 |
| Diagnostics via bus | Sensor supply short circuit/overload |
| Permissible voltage fluctuations for electronics/sensors | ± 25 % |
| Electrical input connection, connection technology | Spring-loaded terminal |
| Shock resistance | Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27 |
| Electrical connection input, connection type | 8x terminal strip |
| Module parameters | Signal extension timeResponse to short circuit/overloadSensor supply short circuit diagnosticsInput debounce time |
| Channel parameters | Signal extension |
| Diagnostics via LED | Status per channelFaults per module |
| Nominal operating voltage DC for electronics/sensors | 24 V |
| Electrical connection, input, number of pins/wires | 6 |
| Electrical connection for input, conductor cross section | 0.2 mm² ... 1.5 mm² |
| Width dimension | 18.9 mm |
| Type code | CPX-E |
| No. of inputs | 16 |
| Input debounce time | 10 ms0.1 ms3 ms20 ms |
| Fuse protection (short circuit) | Internal electronic fuse per module |
| Electrical isolation between channel and internal bus | no |
| Electrical isolation between channels | no |
| Switching level | Signal 1: >= 11 VSignal 0: <= 5 V |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Storage temperature | -20 °C ... 70 °C |
| Relative air humidity | Non-condensing95 % |
| Degree of protection | IP20 |
| Ambient temperature | -5 °C ... 50 °C |
| Certification | RCM compliance mark |
| Product weight | 102 g |
| Max. address capacity inputs | 2 byte |
| Input characteristics | As per IEC 61131-2, type 3 |
| Input switching logic | 3-wire sensors as per IEC 61131-2PNP (positive switching)2-wire sensors as per IEC 61131-2 |
| Type of mounting | With H-rail |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Housing material | PA |
