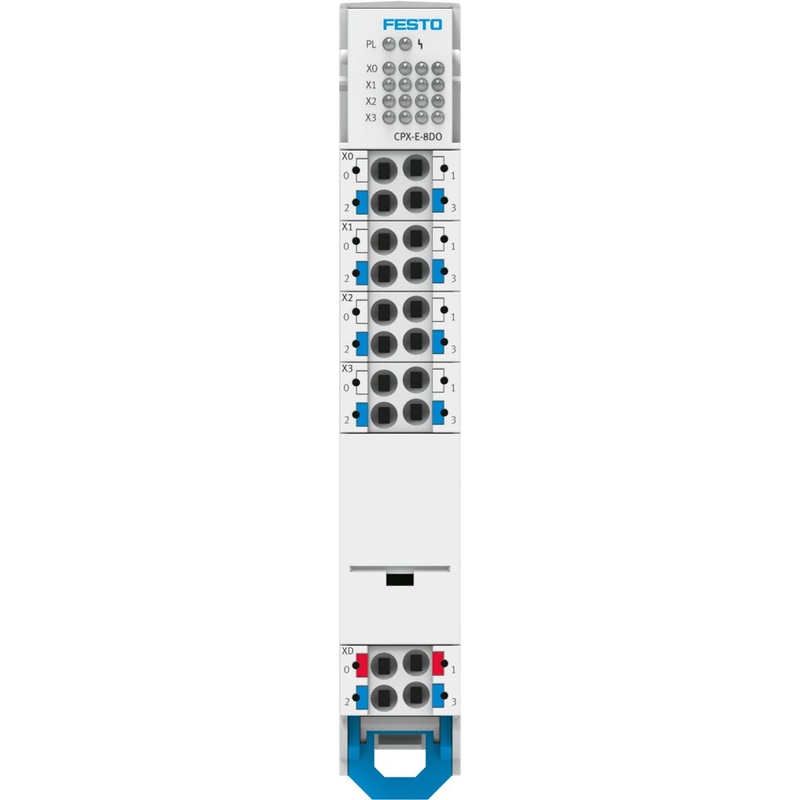

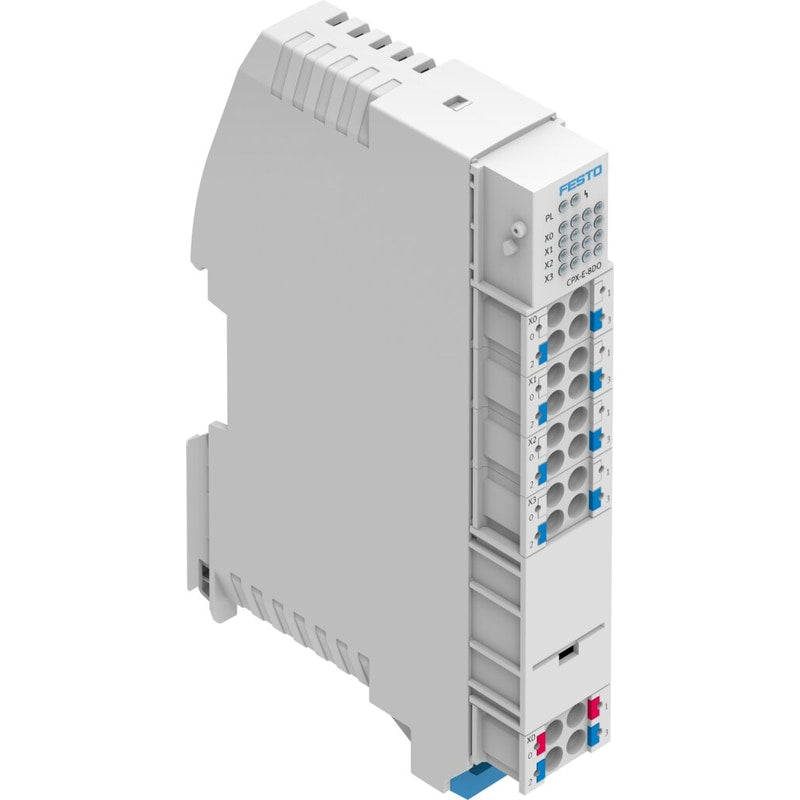

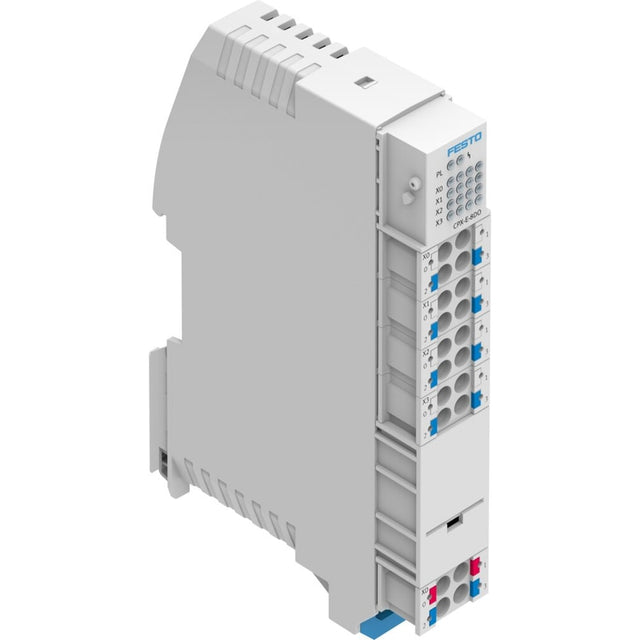

Digital output module
CPX-E-8DO
4080491
GTIN 4052568291112
Vendor Festo
Regular price
$214.20
Unit price
CPX-E-8DO is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CPX-E-8DO
Regular price
$214.20
Unit price
CPX-E-8DO is backordered and will ship as soon as it is back in stock.
| Dimensions W x L x H | 18.9 mm x 76.6 mm x 124.3 mm |
|---|---|
| Power supply, type of connection | Terminal strip |
| Vibration resistance | Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6 |
| Electrical connection output, connection technology | Spring-loaded terminal |
| Permissible voltage fluctuations load | ± 25 % |
| Note on ambient temperature | -5 - 60 °C for vertical installation |
| Intrinsic current consumption at nominal operating voltage load | Typically 34 mA |
| Diagnostics via bus | Module errorLoad supply undervoltageOutput short circuit/overload |
| Power supply, connection pattern | 995847 |
| Electrical connection output, function | Digital output |
| Electrical connection output, connection type | 4x terminal strip |
| Power supply, information on conductor diameter | 0.2 - 2.5 mm² for flexible conductors without cable end sleeves |
| Electrical connection for output, connection pattern | 995846 |
| Power supply, connection technology | Spring-loaded terminal |
| Electrical connection for output, information on conductor cross section | 0.2 - 2.5 mm² for flexible conductors without cable end sleeves |
| Shock resistance | Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27 |
| Module parameters | Response to short circuit/overloadOutput short circuit diagnosticsLoad supply undervoltage diagnostics |
| Channel parameters | Forcing channel x |
| Diagnostics via LED | Faults per channelStatus per channelFaults per module |
| Electrical output connection, number of pins/wires | 4 |
| Power supply, number of pins/wires | 4 |
| Nominal operating voltage DC load | 24 V |
| Power supply, conductor diameter | 0.2 mm² ... 1.5 mm² |
| Width dimension | 18.9 mm |
| Type code | CPX-E |
| No. of outputs | 8 |
| Fuse protection (short circuit) | Internal electronic fuse per channel |
| Max. residual current of outputs per module | 0.166666666666667 |
| Electrical isolation between channel and internal bus | yes |
| Electrical isolation between channels | no |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Storage temperature | -20 °C ... 70 °C |
| Relative air humidity | Non-condensing95 % |
| Protection against direct and indirect contact | PELV |
| Degree of protection | IP20 |
| Ambient temperature | -5 °C ... 50 °C |
| Certification | RCM compliance mark |
| Product weight | 93 g |
| Max. address capacity outputs | 1 byte |
| Characteristic curve outputs | As per IEC 61131-2, type 0.5 |
| Switching logic at outputs | PNP (positive switching) |
| Type of mounting | With H-rail |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Housing material | PA |
