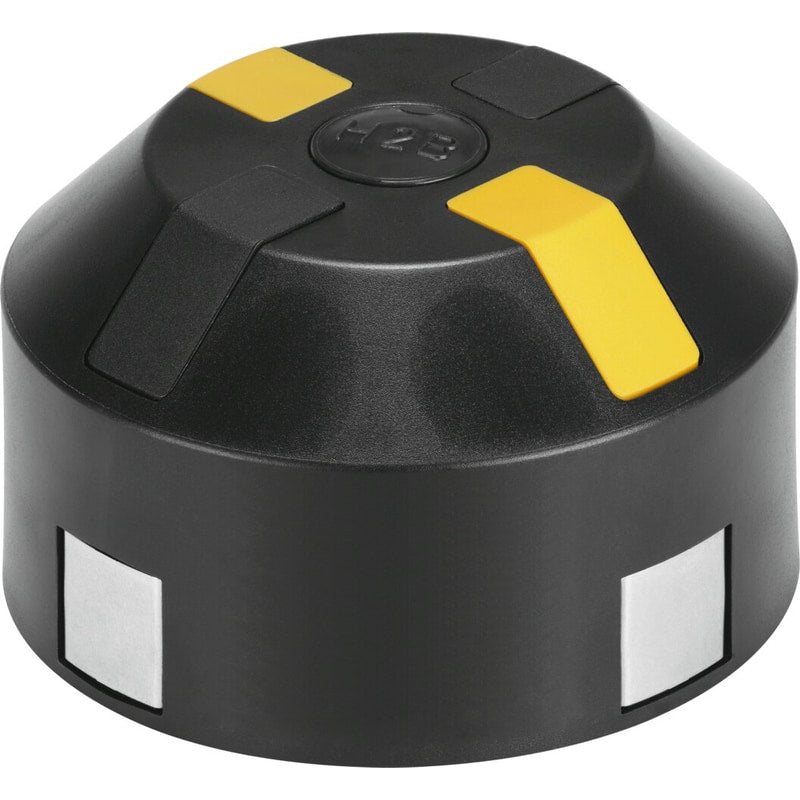

Position indicator
SASF-S2-B-F-A34
4046082
GTIN 4052568274047
Vendor Festo
Regular price
$24.39
Unit price
SASF-S2-B-F-A34 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SASF-S2-B-F-A34
Regular price
$24.39
Unit price
SASF-S2-B-F-A34 is backordered and will ship as soon as it is back in stock.
Position indicator SASF-S2-B-F-A34 Rotation angle adjustment range=0 - 90 deg, Dimensions W x L x H=Ø 65 x 40, Vibration resistance=Transport application test at severity level 2 in accordance with FN 942017-4 and EN 60068-2-6, Shock resistance=Shock test with severity level 2 in accordance with FN 942017-5 and EN 60068-2-27, Ambient temperature=-25 - 70 °C
| Rotation angle adjustment range | 0 ... 90 deg |
|---|---|
| Dimensions W x L x H | Ø 65 x 40 |
| Vibration resistance | Transport application test at severity level 2 in accordance with FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 in accordance with FN 942017-5 and EN 60068-2-27 |
| Ambient temperature | '-25 ... 80 °C |
| Product weight | 55 g |
| Mounting type | To VDI/VDE 3845 |
| Housing colour | Black |
| Materials note | Contains PWIS substancesConforms to RoHS |
| Material spacer | PA |
| Material housing | PBTPPHigh alloy steel, non-corrosive |
| Material screws | High alloy steel, non-corrosive |
