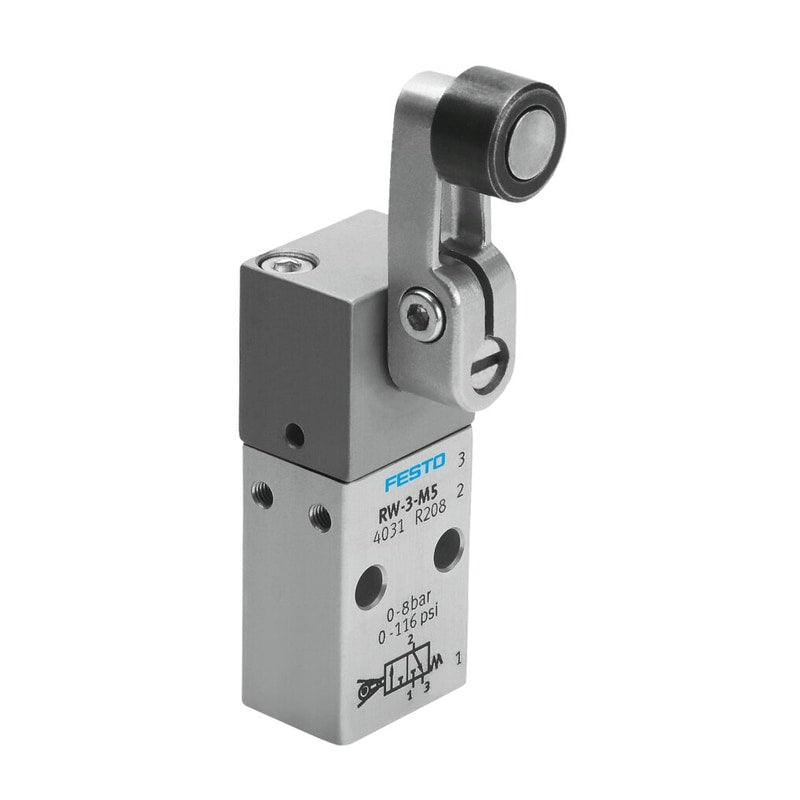

Swivel lever valve
RW-3-M5
4031
GTIN 4052568000523
Vendor Festo
Regular price
$204.76
Unit price
RW-3-M5 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
RW-3-M5
Regular price
$204.76
Unit price
RW-3-M5 is backordered and will ship as soon as it is back in stock.
swivel lever valve RW-3-M5 Valve function=3/2 closed, monostable, Type of actuation=mechanical, Standard nominal flow rate=80 l/min, Operating pressure=-0,95 - 8 bar, Design structure=Piston seat
| Valve function | 3/2 closed, monostable |
|---|---|
| Type of actuation | mechanical |
| Standard nominal flow rate | 80 l/min |
| Operating pressure | '-0.95 ... 8 bar |
| Design structure | Piston seat |
| Nominal size | 2 mm |
| Type of piloting | direct |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [-:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Ambient temperature | '-10 ... 60 °C |
| Actuating force | 14.5 N |
| Mounting type | with through hole |
| Pneumatic connection, port 1 | M5 |
