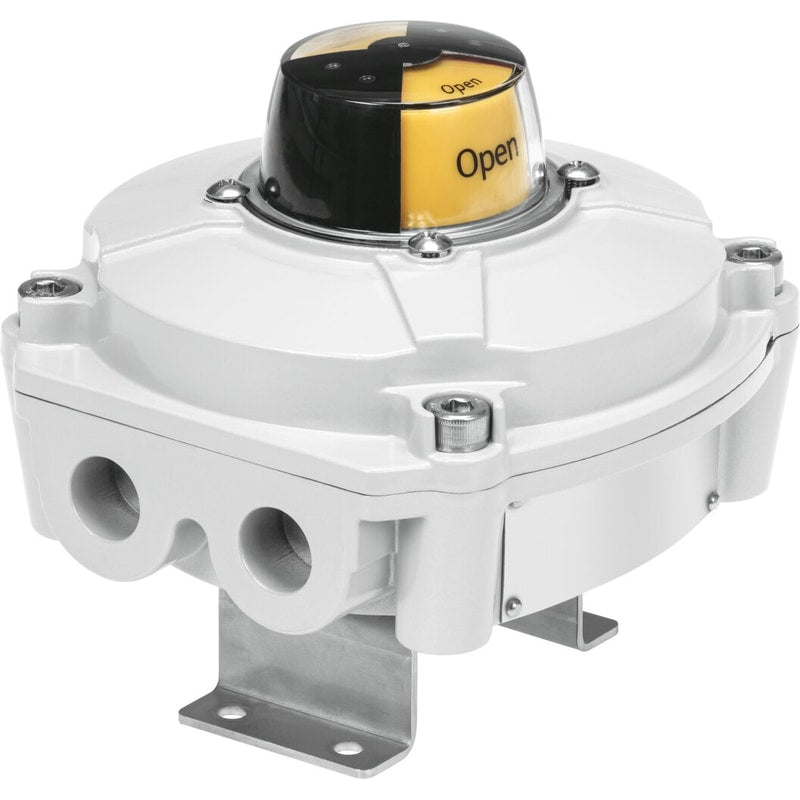

Limit switch box

SRBE-CA3-YR90-N-20N-ZC-C2N12-C1

Name: SRBE-CA3-YR90-N-20N-ZC-C2N12-C1
Brand: Festo
SKU: 3998919
Price: 511.92 USD
Availability: InStock

3998919

GTIN 4052568273965

Vendor Festo

DC operating voltage range: 8.2 V
Electrical connection: Screw terminal
Position indicator: Yellow/red
Switching element function: N/C contact
Cable fitting: 1/2 NPT

$511.92

Festo

Delivery and Shipping

Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.

sensor box SRBE-CA3-YR90-N-20N-ZC-C2N12-C1 For electrical feedback and position monitoring of process valves which are actuated with pneumatic quarter turn actuators, inductive measuring principle. Design=Angular, Based on the standard=(* EN 60947-5-6, * ISO 5211, * VDI/VDE 3845), Authorisation=RCM Mark, CE mark (see declaration of conformity)=to EU directive for EMC, ATEX category Gas=II 2G

Design	Angular
Based on the standard	EN 60947-5-6ISO 5211VDI/VDE 3845
Authorisation	RCM Mark
CE mark (see declaration of conformity)	to EU directive for EMC
ATEX category Gas	II 2G
Explosion ignition protection type Gas	AEx d IIB T5 GbAex nA IIC T5 GcEx d IIB T5 GbEx nA IIC T5 Gc
ATEX category Dust	II 2D
Explosion ignition protection type Dust	AEx tb IIIC T108°C DbEx tb IIIC T108°C Db
Explosion protection certification outside the EU	Class I, Div. 1 (CA)Class I, Div. 1 (US)Class I, Div. 2 (CA)Class I, Div. 2 (US)Class II, Div. 1 (CA)Class II, Div. 1 (US)Class III (CA)Class III (US)EPL Db (CA)EPL Db (US)EPL Gb (CA)EPL Gb (US)EPL Gc (CA)EPL Gc (US)
Explosion-proof ambient temperature	'-20°C <= Ta <= +60°C
Certificate issuing department	CSA 263311
Materials note	Contains PWIS substancesConforms to RoHS
Safety Integrity Level (SIL)	SIL 2

SRBE-CA3-YR90-N-20N-ZC-C2N12-C1
