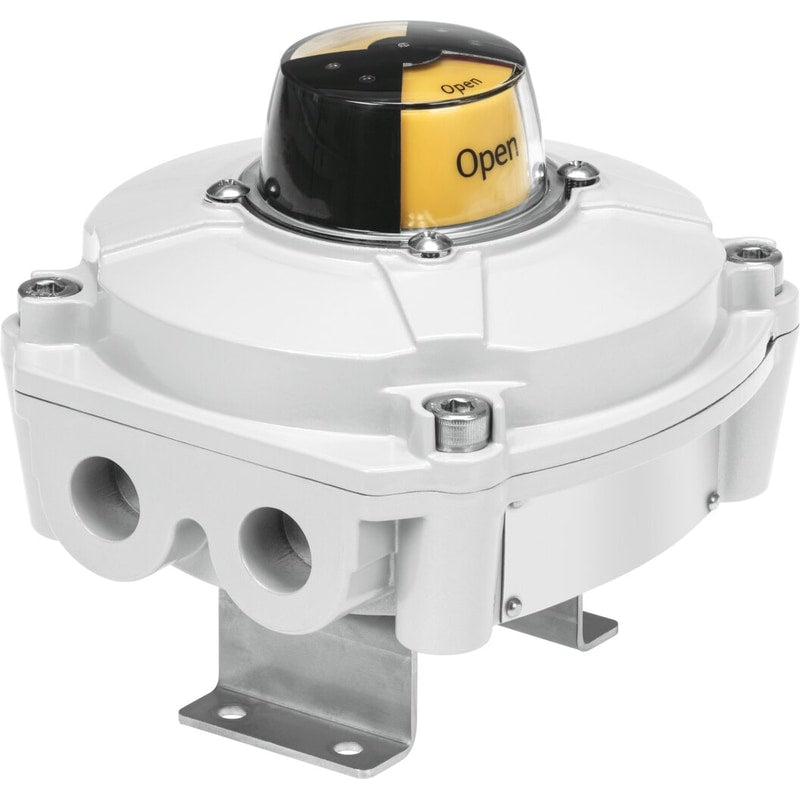

SRBE-CA3-YR90-MW-22A-1W-C2N12-C1

sensor box SRBE-CA3-YR90-MW-22A-1W-C2N12-C1 For electrical feedback and position monitoring of process valves which are actuated with pneumatic quarter turn actuators, electromechanical measuring principle. Design=Angular, Based on the standard=(* EN 60947-5-1, * ISO 5211), CE mark (see declaration of conformity)=to EU directive low-voltage devices, ATEX category Gas=II 2G, Explosion ignition protection type Gas=(* AEx d IIB T5 Gb, * Ex d IIB T5 Gb)

Design	Angular
Based on the standard	EN 60947-5-1ISO 5211
CE mark (see declaration of conformity)	to EU directive low-voltage devices
ATEX category Gas	II 2G
Explosion ignition protection type Gas	AEx d IIB T5 GbEx d IIB T5 Gb
ATEX category Dust	II 2D
Explosion ignition protection type Dust	AEx tb IIIC T108°C DbEx tb IIIC T108°C Db
Explosion protection certification outside the EU	Class I, Div. 1 (CA)Class I, Div. 1 (US)Class II, Div. 1 (CA)Class II, Div. 1 (US)Class III (CA)Class III (US)EPL Db (CA)EPL Db (US)EPL Gb (CA)EPL Gb (US)
Explosion-proof ambient temperature	'-20°C <= Ta <= +60°C
Certificate issuing department	CSA 263311
Materials note	Contains PWIS substancesConforms to RoHS
Safety Integrity Level (SIL)	SIL 2
Measuring principle	Mechanical/electricalFor proximity sensor
