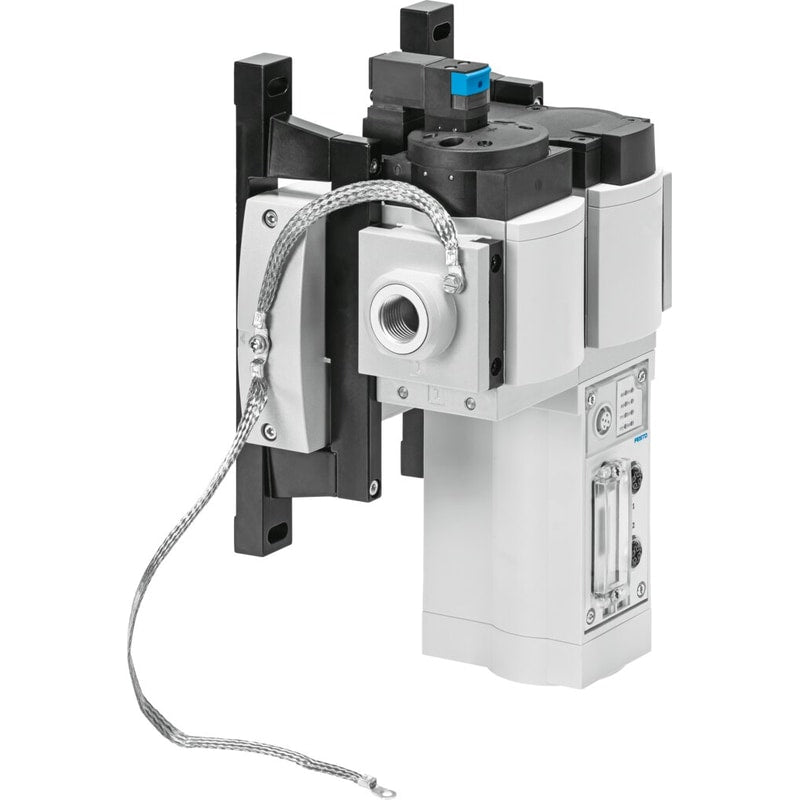

Energy efficiency module
MSE6-E2M-5000-FB36-AGD
3990296
GTIN 4052568273910
Vendor Festo
Regular price
$2,989.51
Unit price
MSE6-E2M-5000-FB36-AGD is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MSE6-E2M-5000-FB36-AGD
Regular price
$2,989.51
Unit price
MSE6-E2M-5000-FB36-AGD is backordered and will ship as soon as it is back in stock.
service unit combination MSE6-E2M-5000-FB36-AGD Size=6, Series=MSE, Assembly position=Horizontal +/- 5°, Valve function=2/2 open, monostable, Operating pressure=4 - 10 bar
| Size | 6 |
|---|---|
| Series | MSE |
| Assembly position | Horizontal +/- 5° |
| Valve function | 2/2 open, monostable |
| Operating pressure | 4 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation not possible |
| CE mark (see declaration of conformity) | to EU directive for EMC |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Storage temperature | '-10 ... 60 °C |
| Medium temperature | 0 ... 50 °C |
| Protection class | IP65with plug socket |
| Ambient temperature | 0 ... 50 °C |
